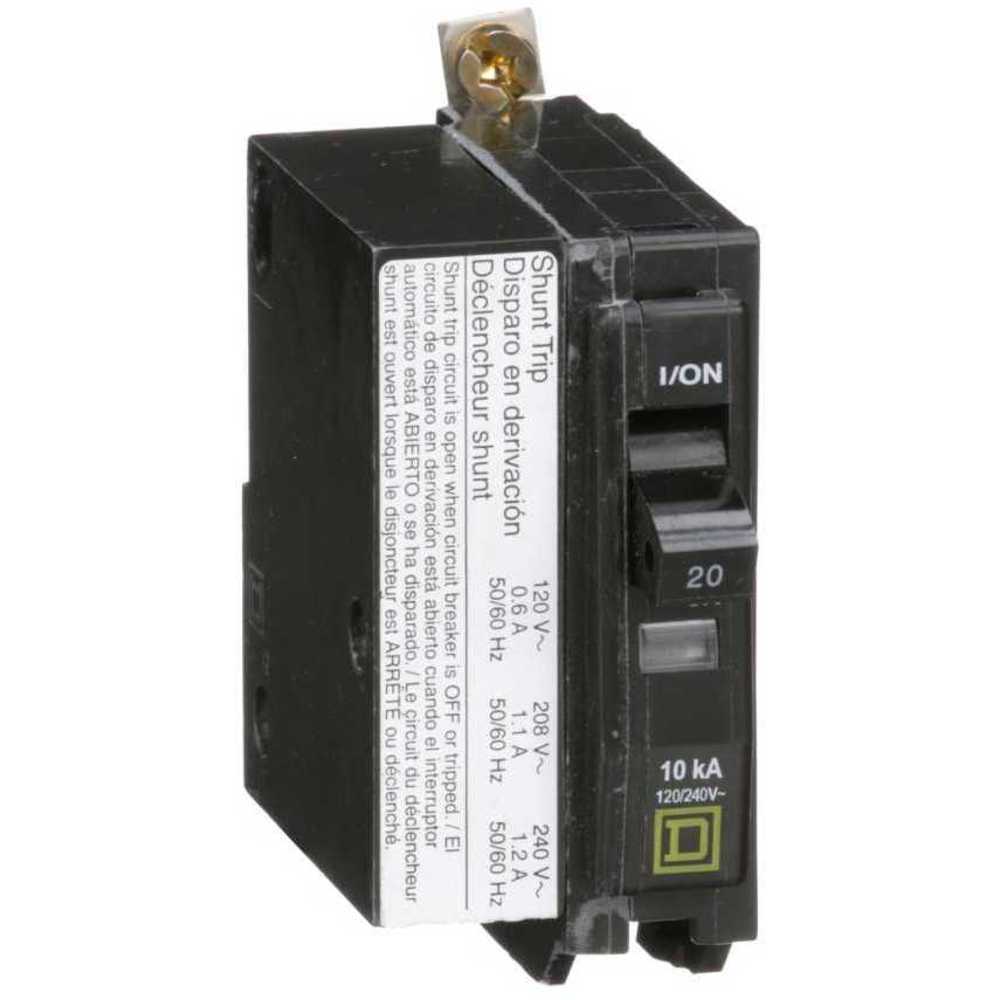

SQUARE D QOB1201021 Circuit Breaker Bolt-on 1 Pole 20a
Item: AF9GTAModel: QOB1201021Cross Ref: 2GLC8
7 In Stock
Ships within 2 days via
5.00% off
€341.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Ambient Rating | 104°F |
| Amps | 20A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Shunt Trip , Standard |
| Compatible Panelboard/load Center Series | Series QO |
| Dc Voltage | 48V , 48V DC |
| Depth | 2.9" , 2.91" |
| Electrical Connection | Pressure Plate |
| For Use With | Square D Nqod Panelboards |
| Frame Size | 100A/QO |
| Height | 3" |
| Interrupt Rating | 10 kA @ 120/240V AC, 10 kA @ 120V AC |
| Length | 3" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 14 AWG |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 2 |
| No. Of Poles | 1 |
| Options | Shunt Trip 120/208/240V AC |
| Phase | 1 |
| Rating | HACR and Switching Duty Rated |
| Returnability | Yes |
| Terminal Connection | Pressure Plate |
| Terminal Connection Type | Screw Clamp |
| Tightening Torque | 35.4 lbf.-in. |
| Voltage | 120/240V AC |
| Width | 1 1/2" , 1.5" |
| Wire Size | 14 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 3.81 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | No. Of Poles | Amps | Voltage | Height | Depth | Electrical Connection | No. Of Panel Spaces | Returnability | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115CAFI | 1 | 15A | 120V AC | 4 4/5" | 2.91" | Pressure Plate | 1 | No | €260.08 | |
 |
QOB120CAFI | 1 | 20A | 120V AC | 4 4/5" | 2.91" | Pressure Plate | 1 | Yes | €260.08 | |
 |
QOB120VHCAFI | 1 | 20A | 120V AC | 4 4/5" | 2.91" | Pressure Plate | 1 | No | €505.96 | |
 |
QOB110 | 1 | 10A | 120/240V AC | 3" | 2.91" | Pressure Plate | 1 | Yes | €28.96 | |
 |
QOB115 | 1 | 15A | 120/240V AC | 3" | 2.91" | Pressure Plate | 1 | Yes | €28.07 | |
 |
QOB120 | 1 | 20A | 120/240V AC | 3" | 2.91" | Pressure Plate | 1 | Yes | €30.58 | |
 |
QOB130 | 1 | 30A | 120/240V AC | 3" | 2.91" | Pressure Plate | 1 | Yes | €31.57 |
