SQUARE D QO142L225PGC Load Center, 225 A, 120/240 Vac, 42 Spaces, 65 Ka, 0 Max. No. Of Tandem Breakers | CU4FRU 60UM33

SQUARE D QO142L225PGC Load Center, 225 A, 120/240 Vac, 42 Spaces, 65 Ka, 0 Max. No. Of Tandem Breakers

Item: CU4FRUModel: QO142L225PGCCross Ref: 60UM33
Check Availability
In Stock

Get it by Tuesday, Mar 31

€905.46
5.00% off
€860.19 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Load Center
Ambient Air Temp. For Operation 23°F, 104°F
Amps 225A
Amps Rating 225A
Box No. 11
Bus Material Tin Plated Copper
Busbar Material Copper
Busbar Material Finish Tin Plated
Circuit Breaker Type QO
Color Gray
Cover Type Combination Flush/Surface Cover
Depth 0.006" , 3 3/4"
Electrical Connection Lugs
Enclosure Material Sheet Steel , Welded Sheet Steel
Enclosure Nema Rating 1
Enclosure Rating NEMA 1 Indoor Enclosure
Enclosure Surface Finish Baked Enamel Gray
For Use With Square D QO Circuit Breakers
Ground Bar Grounding Bar Included (Not Installed)
Height 38"
Included Enclosure Cover Combination Flush, Surface Cover
Location Indoor
Main Circuit Breaker Or Main Lug Main Lug
Max. No. Of Single Pole Circuits 52
Max. No. Of Tandem Breakers 0 , 10
Max. Operating Temp. 104°F
Max. Short Circuit Amps Rating 65 kA
Min. Operating Temp. 23°F
No. Of Spaces 42
Number Of Phases 1
Number Of Spaces 42
Phase 1
Pon Convertible Mains (lugs) PoN Convertible Mains (Lugs)
Recommended Flush Cover Included
Recommended Ground Bar Kit Included
Recommended Surface Cover Included
Returnability Yes
Short Circuit Amps Rating 65 kA
Special Features Mercury Free
Standards Rohs Compliant, Ul Listed
Surface Finish Baked Enamel Gray
Tightening Torque Main Lugs 250 lbs.-in., 4 AWG to 250 kcmil, Aluminium, Copper
Voltage 120/240V AC
Width 14 1/4" , 14.3"
Wire Size 6 AWG to 300 kcmil

Shipping Info:

Ship weight (kg) 15.12
Ship height (cm)96.52
Ship length (cm)9.53
Ship width (cm)36.2
Country of OriginMX

Product Variants

ProductModelHeightPhaseAmpsMax. No. Of Tandem BreakersVoltageShort Circuit Amps RatingLocationEnclosure Nema RatingPrice

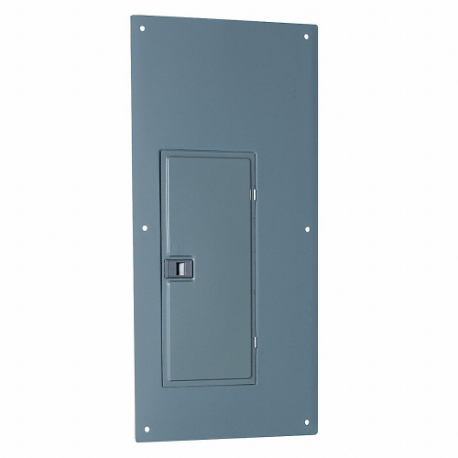

SQUARE D QOC30UFWG Load Center | CU4FFQ 48R721 QOC30UFWG31.06"-------€188.37

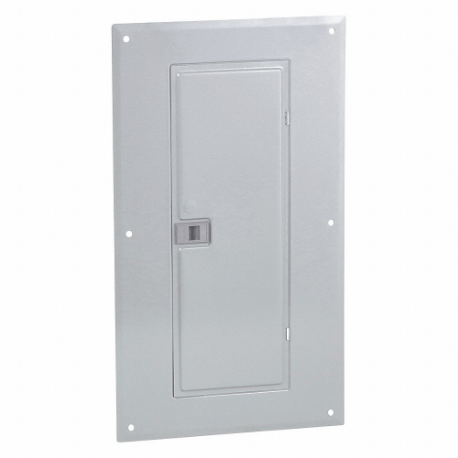

SQUARE D QOC32UF Load Center | CU4FQB 48R742 QOC32UF27 6/25"-------€63.95

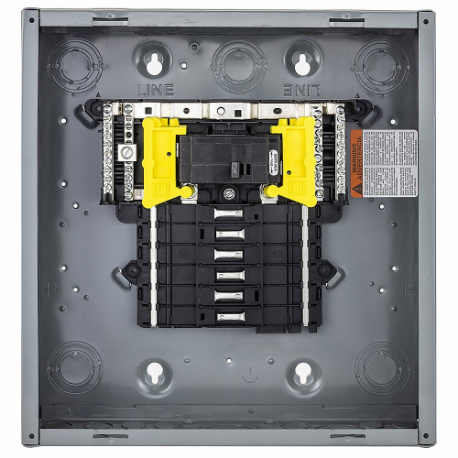

SQUARE D QO112M100PC Load Center, 100 A, 120/240 Vac, 12 Spaces, 22 Ka, 12 Max. No. Of Tandem Breakers | CU4FQE 60UM10 QO112M100PC14.9"1100A12120/240V AC22 kAIndoor1€348.18

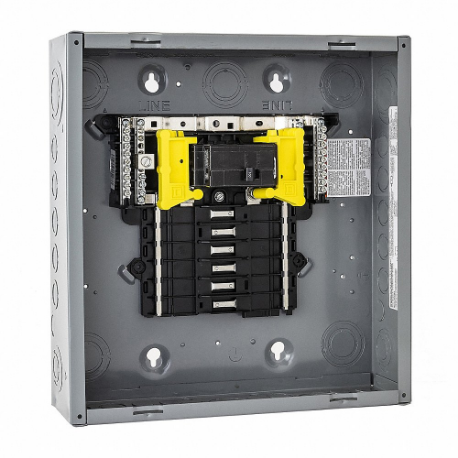

SQUARE D QO112M100P Load Center, 100 A, 120/240 Vac, 12 Spaces, 22 Ka, 12 Max. No. Of Tandem Breakers, 1 | CU4FQF 60UM09 QO112M100P14.9"1100A12120/240V AC22 kAIndoor1€380.52
SQUARE D QO116M100P Load Center, 100 A, 120/240 Vac, 16 Spaces, 22 Ka, 8 Max. No. Of Tandem Breakers | CU4FQG 60UM12 QO116M100P17.9"1100A8120/240V AC22 kAIndoor1€364.17
SQUARE D QO116M100PC Load Center, 100 A, 120/240 Vac, 16 Spaces, 22 Ka, 8 Max. No. Of Tandem Breakers, 1 | CU4FQH 60UM13 QO116M100PC17.94"1100A8120/240V AC22 kAIndoor1-
RFQ

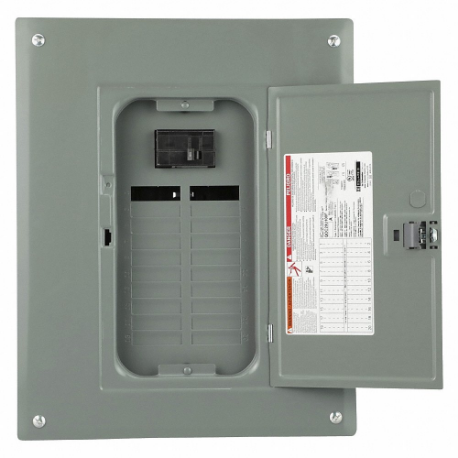

SQUARE D QO120M100P Load Center, 100 A, 120/240 Vac, 20 Spaces, 22 Ka, 4 Max. No. Of Tandem Breakers | CU4FQJ 60UM16 QO120M100P17.9"1100A4120/240V AC22 kAIndoor1€352.13
