SQUARE D QJA222001 Circuit Breaker, I-Line Style, Plug-in, 200 A, 240 VAC, 2p, 100kAIC@240V
Item: AG8UGCModel: QJA222001
7 In Stock
Ships within 2 days via
5.00% off
€1,982.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Aic Rating | 100 kAIC @ 240V |
| Ambient Air Temp. For Operation | 104°F to 158°F |
| Breaking Capacity | 100 kA 120/208V AC 50/60 Hz UL, 100 kA 240V AC 50/60 Hz UL |
| Breaking Capacity Code | J |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Operating Handle |
| Depth | 3.93" |
| Device Application | Distribution |
| Electrical Connection | I-Line Connection, Line, Lugs, Load |
| Frame Type | QJA |
| Height | 6.47" |
| Line Rated Amps | 200A |
| Local Signalling | 1 Trip Indicator Green |
| Magnetic Hold Amps | 1200A |
| Magnetic Tripping Amps | 2400A |
| Mechanical Durability | 1000 Cycles Loaded, 5000 Cycles No Load |
| Mounting Height | 3" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 2 |
| Number Of Poles | 3 |
| Phase Connection | AB |
| Power Wire Stripping Length | 0.9" |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operational Voltage | 240V |
| Returnability | Yes |
| Tightening Torque | 247.8 lbf.in. @ 0.04 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Trip Unit Technology | Thermal-Magnetic |
| Utilisation Category | Category A |
| Voltage | 240V |
| Voltage Type | AC |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 2.13 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 31.27 |
| Ship width (cm) | 18.9 |
| Country of Origin | MX |
Product Details:
- Square D QJA222001 is a PowerPact Series Q-Frame circuit breaker designed to protect electric systems from short-circuits or overloads.
- This UL-listed circuit breaker operates at 240 VAC and 200A and has an ampere interrupting capacity of 100kA at 240 VAC.
- This Square D circuit breaker has 2-pole configuration and features a magnetic trip with an instantaneous trip range of 1200 - 2400 A. It also includes a terminal nut that can accommodate a 4 AWG aluminium / copper wire.
Product Variants
| Model | Phase Connection | Mounting Height | Number Of Poles | Amps | Voltage Type | Frame Type | Voltage | Control Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

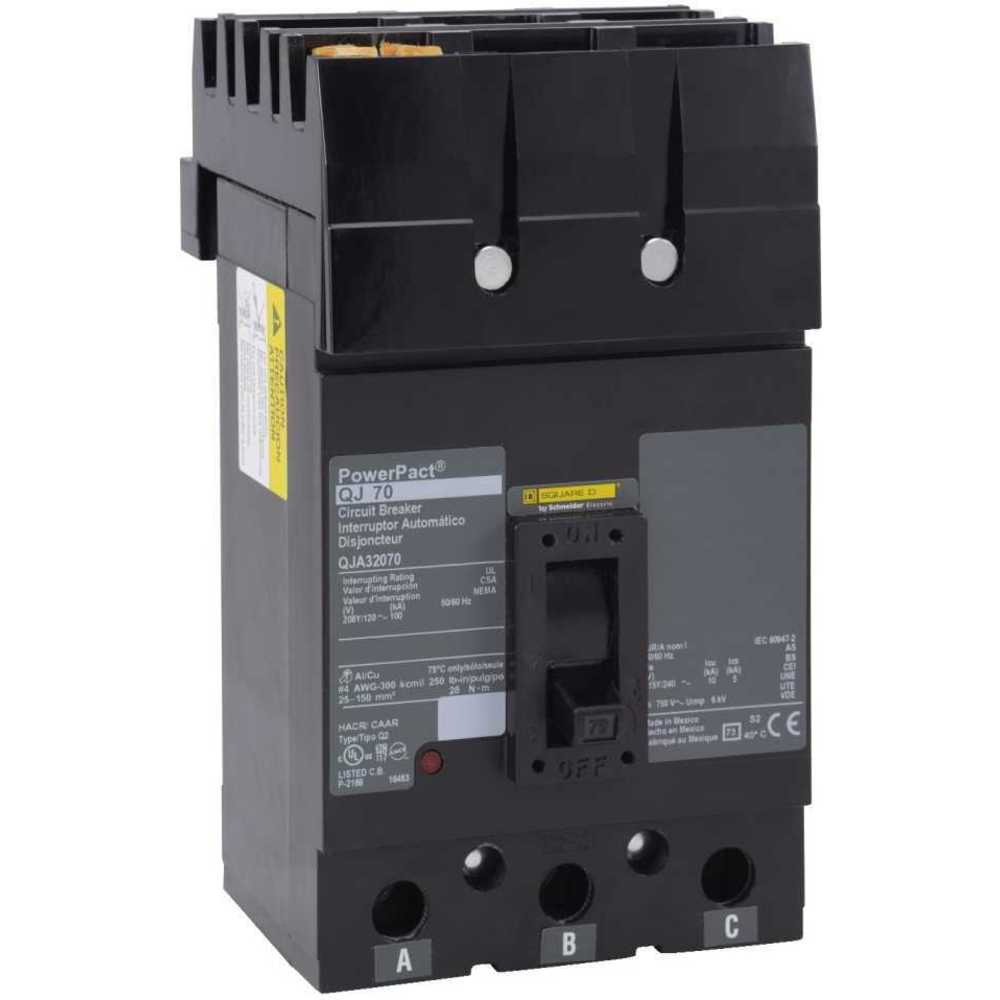

| QJA32100 | ABC | 4.5" | 3 | - | AC | QJA | 240V | Operating Handle | €4,040.08 | |
| QJA32125 | ABC | 4.5" | 3 | - | AC | QJA | 240V | Operating Handle | €5,891.84 | |
| QJA32150 | ABC | 4.5" | 3 | - | AC | QJA | 240V | Operating Handle | €5,891.84 | |
| QJA32175 | ABC | 4.5" | 3 | - | AC | QJA | 240V | Operating Handle | €5,891.84 | |
| QJA32200 | ABC | 4.5" | 3 | - | AC | QJA | 240V | Operating Handle | €5,891.84 | |
| QJA32225 | ABC | 4.5" | 3 | - | AC | QJA | 240V | Operating Handle | €5,891.84 | |
| QJA222002 | AC | 3" | 3 | 200A | AC | QJA | 240V | Operating Handle | €2,508.00 |
