SQUARE D QGP32070TM Bolt On Circuit Breaker Qgp 70 Amp 240vac 3p 65kaic@240v
Item: AG8UFDModel: QGP32070TM
7 In Stock
Ships within 2 days via
5.00% off
€2,142.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Aic Rating | 65 kAIC @ 240V |
| Ambient Air Temp. For Operation | 104°F to 158°F |
| Amps | 70A |
| Breaking Capacity | 65 kA 120/208V AC 50/60 Hz UL, 65 kA 240V AC 50/60 Hz UL |
| Breaking Capacity Code | G |
| Circuit Breaker Application | HACR Rated |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Operating Handle |
| Depth | 3.93" |
| Device Application | Distribution |
| Electrical Connection | Terminal Nut, Line, Lugs, Load |
| Frame Type | QGP |
| Height | 6.47" |
| Line Rated Amps | 70A |
| Local Signalling | 1 Trip Indicator Green |
| Magnetic Hold Amps | 1000A |
| Magnetic Tripping Amps | 1800A |
| Mechanical Durability | 1000 Cycles Loaded, 5000 Cycles No Load |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Power Wire Stripping Length | 0.9" |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operational Voltage | 240V |
| Returnability | Yes |
| Tightening Torque | 247.8 lbf.in. @ 0.04 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Trip Unit Technology | Thermal-Magnetic |
| Utilisation Category | Category A |
| Voltage | 240V |
| Voltage Type | AC |
| Width | 4.5" |
Shipping Info:
| Ship weight (kg) | 2.07 |
| Ship height (cm) | 14.12 |
| Ship length (cm) | 24.77 |
| Ship width (cm) | 14.76 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Amps | Voltage Type | Frame Type | Control Type | Mounting Support | Voltage | Aic Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

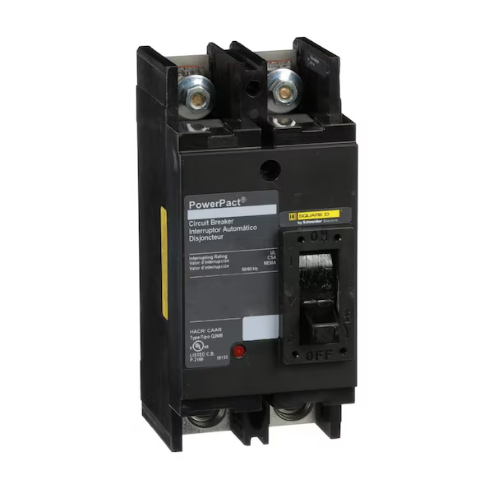

QGP22125TM | 2 | 125A | AC | QGP | Operating Handle | Lug | 240V | 65 kAIC @ 240V | €1,380.31 | |
 |
QGP22150TM | 2 | 150A | AC | QGP | Operating Handle | Lug | 240V | 65 kAIC @ 240V | €1,380.31 | |
 |
QGP22200TM | 2 | 200A | AC | QGP | Operating Handle | Lug | 240V | 65 kAIC @ 240V | €1,380.31 | |
|
QGP32100TM | 3 | 100A | AC | QGP | Operating Handle | Lug | 240V | 65 kAIC @ 240V | €2,255.66 | |
|
QGP32150TM | 3 | 150A | AC | QGP | Operating Handle | Lug | 240V | 65 kAIC @ 240V | €2,255.66 | |
 |
QGP32200TM | 3 | 200A | AC | QGP | Operating Handle | Lug | 240V | 65 kAIC @ 240V | €2,255.66 | |
 |
QGP32225TM | 3 | 225A | AC | QGP | Operating Handle | Lug | 240V | 65 kAIC @ 240V | €1,908.63 |
