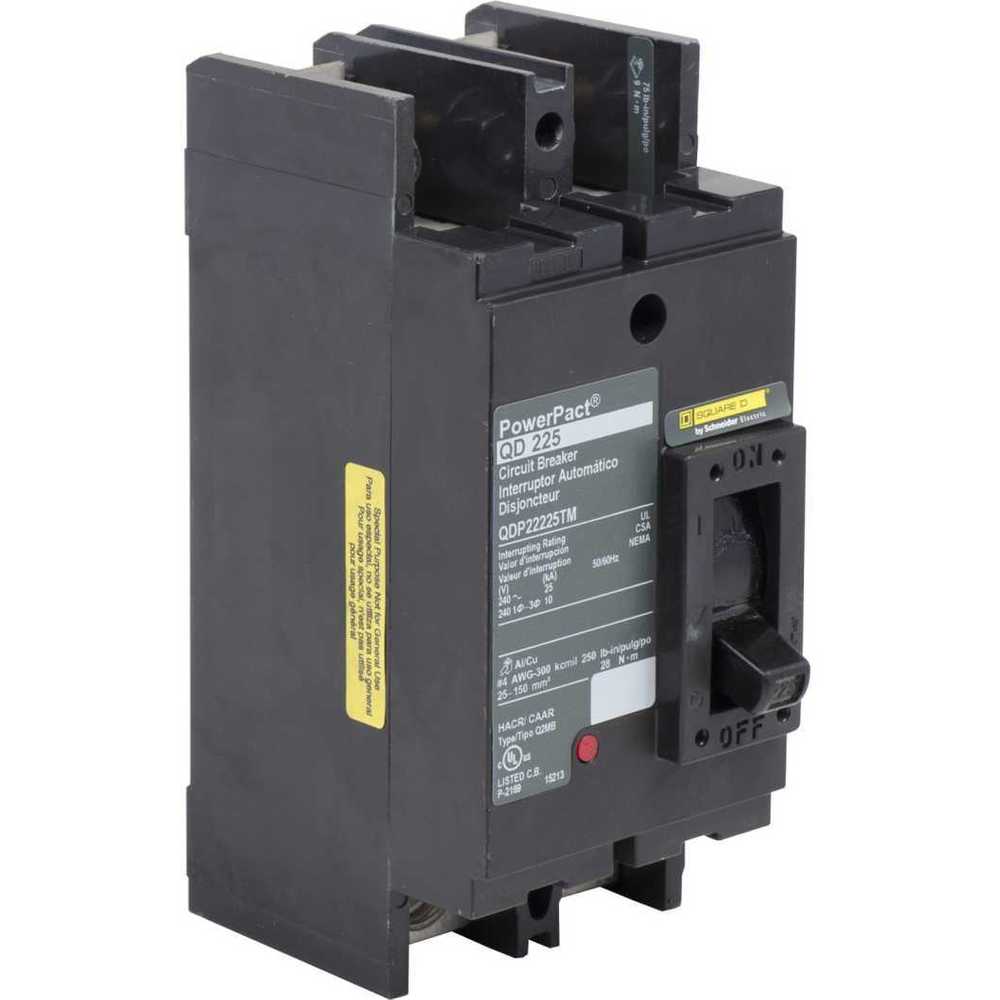

SQUARE D QDP22225TM Bolt On Circuit Breaker, Qdp, 225 A, 240VAC, 2P, 25kAIC@240V
Item: AG8UCDModel: QDP22225TM
7 In Stock
Ships within 2 days via
5.00% off
€863.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Aic Rating | 25 kAIC @ 240V |
| Ambient Air Temp. For Operation | 104°F to 158°F |
| Amps | 225A |
| Breaking Capacity | 100 kA 120/208V AC 50/60 Hz UL |
| Breaking Capacity Code | D |
| Circuit Breaker Application | HACR Rated |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Operating Handle |
| Depth | 3.93" |
| Device Application | Distribution |
| Electrical Connection | Terminal Nut, Line, Lugs, Load |
| Frame Type | QDP |
| Height | 6.47" |
| Line Rated Amps | 225A |
| Local Signalling | 1 Trip Indicator Green |
| Magnetic Hold Amps | 1200A |
| Magnetic Tripping Amps | 2400A |
| Mechanical Durability | 1000 Cycles Loaded, 5000 Cycles No Load |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 2 |
| Number Of Poles | 2 |
| Power Wire Stripping Length | 0.9" |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operational Voltage | 240V |
| Returnability | Yes |
| Tightening Torque | 247.8 lbf.in. @ 0.04 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Trip Unit Technology | Thermal-Magnetic |
| Utilisation Category | Category A |
| Voltage | 240V |
| Voltage Type | AC |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 1.47 |
| Ship height (cm) | 11.4 |
| Ship length (cm) | 25.1 |
| Ship width (cm) | 15.49 |
| Country of Origin | MX |
Product Details:
- Square D QDP22225TM is a UL-listed and CSA-approved miniature circuit breaker featuring a non-interchangeable thermal-magnetic trip function.
- It is a 2-pole, 1-phase molded case breaker that operates at 225 A / 240 V and has a maximum interrupt rating of 25 kAIC at 240 V.
- This bolt-on Square D circuit breaker is easy to install and features line side lug terminals for easy wire connection.
Product Variants
| Product | Model | Number Of Poles | Amps | Frame Type | Voltage | Control Type | Mounting Support | Voltage Type | Aic Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

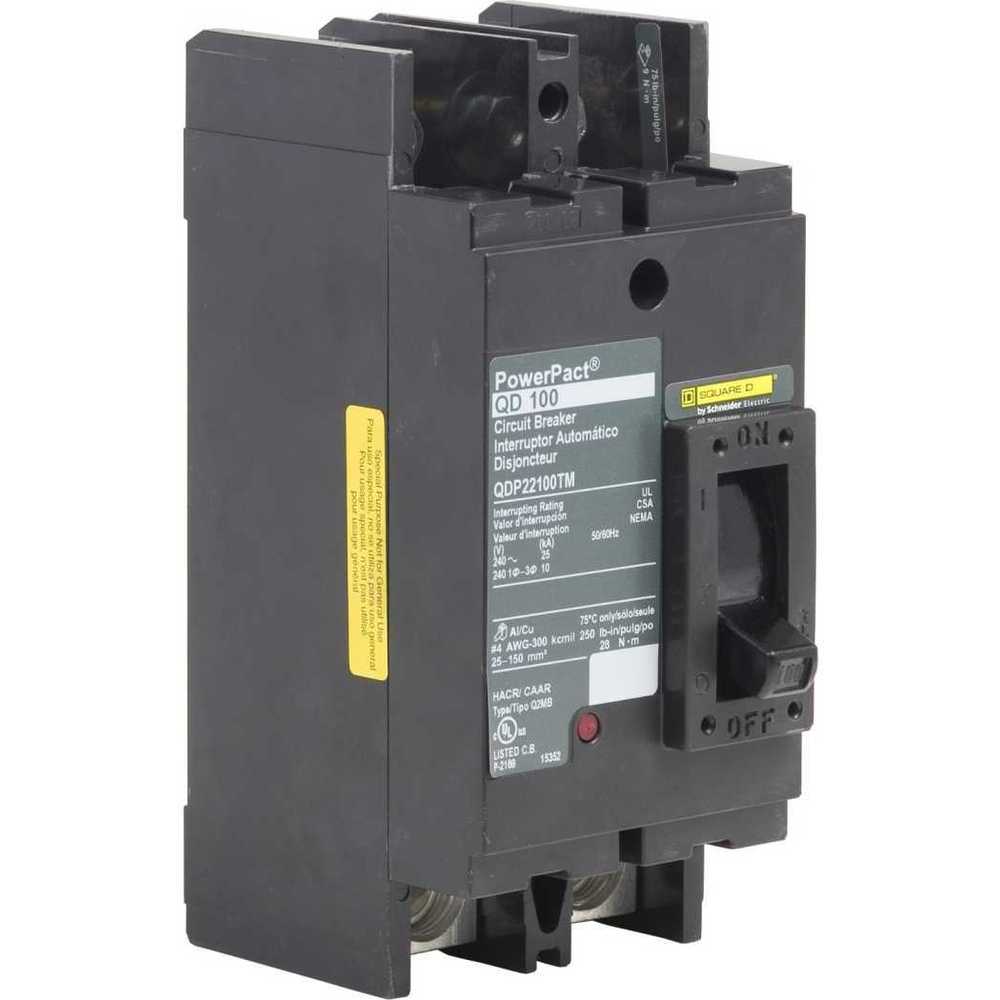

QDP22100TM | 2 | 100A | QDP | 240V | Operating Handle | Lug | AC | 25 kAIC @ 240V | €714.28 | |
|
QDP22110TM | 2 | 110A | QDP | 240V | Operating Handle | Lug | AC | 25 kAIC @ 240V | €909.07 | |
 |
QDP22125TM | 2 | 125A | QDP | 240V | Operating Handle | Lug | AC | 25 kAIC @ 240V | €714.28 | |
|
QDP22175TM | 2 | 175A | QDP | 240V | Operating Handle | Lug | AC | 25 kAIC @ 240V | €909.07 | |
 |

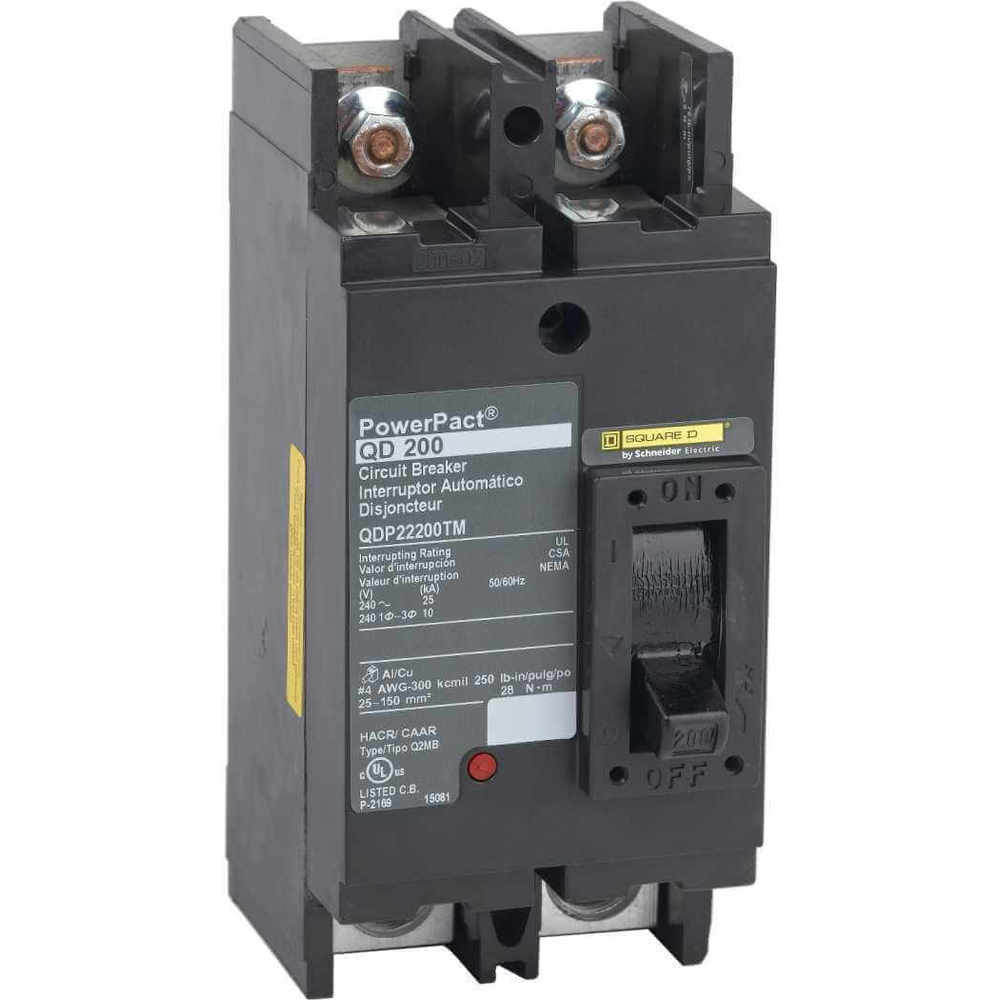

QDP22200TM | 2 | 200A | QDP | 240V | Operating Handle | Lug | AC | 25 kAIC @ 240V | €769.21 | |
 |

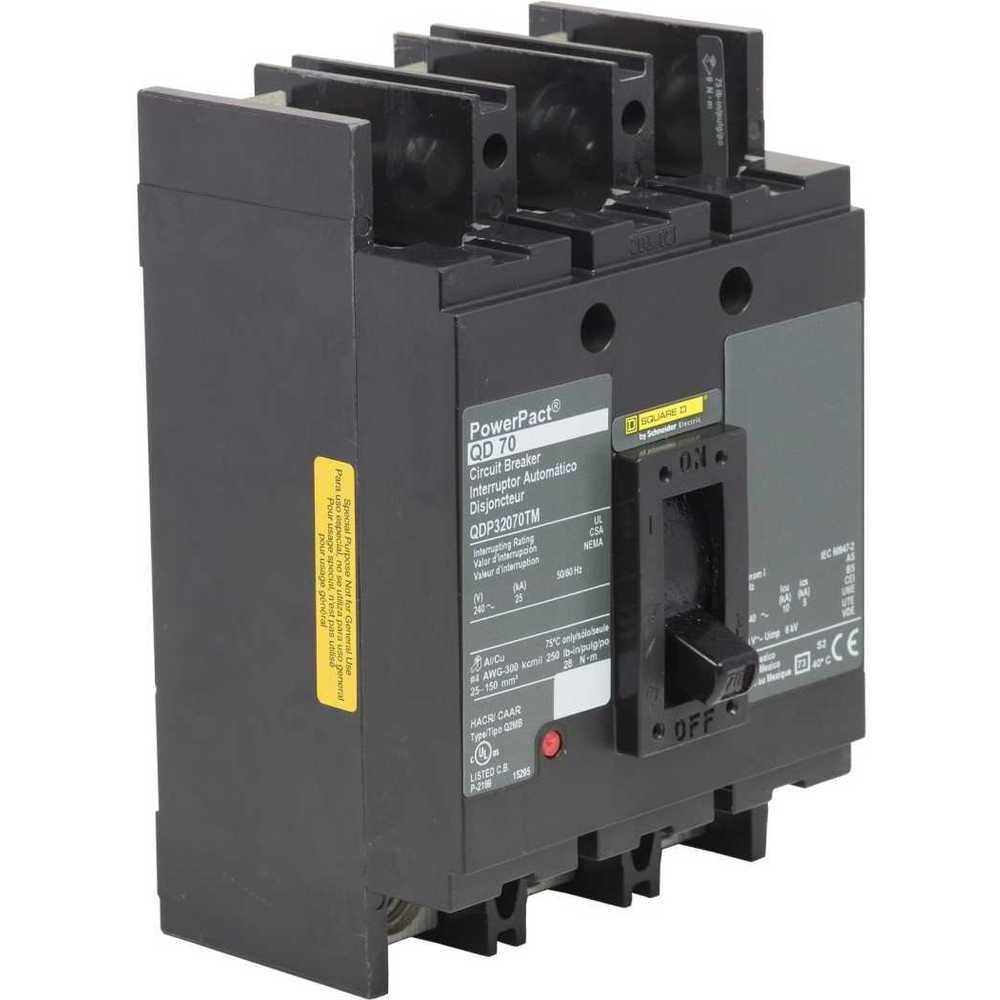

QDP32070TM | 3 | 70A | QDP | 240V | Operating Handle | Lug | AC | 25 kAIC @ 240V | €1,312.99 | |
 |

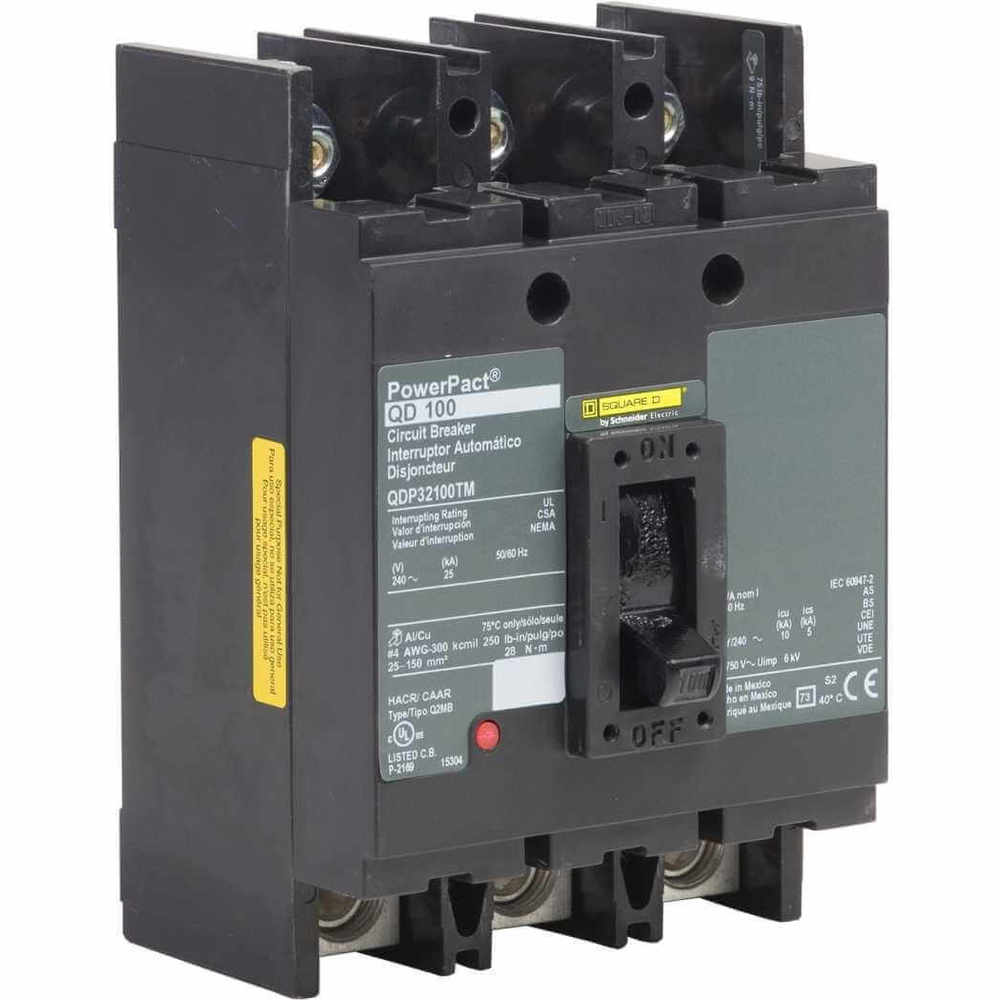

QDP32100TM | 3 | 100A | QDP | 240V | Operating Handle | Lug | AC | 25 kAIC @ 240V | €1,312.99 |
