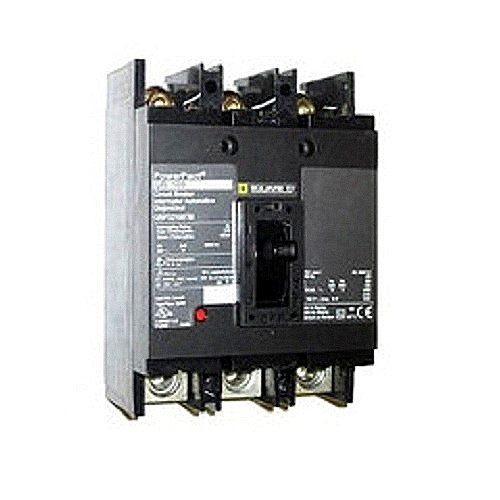

SQUARE D QBM32125TN PowerPact Q Molded Case Circuit Breaker, 125A, 240VAC, 3P
Get it by Tuesday, Apr 7
€3,432.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | 104°F to 158°F |
| Amps | 125A |
| Breaking Capacity | 10 kA 120/208V AC 50/60 Hz UL, 10 kA 240V AC 50/60 Hz UL |
| Breaking Capacity Code | B |
| Circuit Breaker Application | HACR Rated |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Operating Handle |
| Depth | 3.93" |
| Device Application | Distribution |
| Electrical Connection | Lugs, Line, Terminal Nut, Load |
| Frame Type | QBM |
| Height | 6.47" |
| Line Rated Amps | 125A |
| Local Signalling | 1 Trip Indicator Green |
| Magnetic Hold Amps | 1200A |
| Magnetic Tripping Amps | 2400A |
| Mechanical Durability | 1000 Cycles Loaded, 5000 Cycles No Load |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Power Wire Stripping Length | 0.9" |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operational Voltage | 240V |
| Returnability | No |
| Tightening Torque | 247.8 lbf.in. @ 0.04 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Trip Unit Technology | Thermal-Magnetic |
| Utilisation Category | Category A |
| Voltage Type | AC |
| Width | 4.5" |
Shipping Info:
| Ship weight (kg) | 2.08 |
| Ship height (cm) | 16.43 |
| Ship length (cm) | 9.98 |
| Ship width (cm) | 11.43 |
| Country of Origin | US |
Product Details:
- Square D QBM32125TN PowerPact Q molded case circuit breaker suitable for installation within electrical control panels & switchboards for protecting connected circuits against current overloads & short circuits
- Features non-interchangeable, thermal-magnetic trip for providing both time delayed and instantaneous current limiting protection
- Equipped with line & load side lug terminals for aluminium and copper wires of sizes from 4 AWG to 300 kcmil
- Bolt-on mounting for installation in both vertical and horizontal orientations
- UL-listed and CSA-certified
Product Variants
| Product | Model | Number Of Poles | Amps | Voltage Type | Frame Type | Control Type | Mounting Support | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
QBM22200TN | 2 | 200A | AC | QBM | Operating Handle | Lug | €709.54 |
