SQUARE D QBL32150 Circuit Breaker 150a 3p 240vac Lug
Item: AG6QEPModel: QBL32150Cross Ref: 3XE11
7 In Stock
Ships within 2 days via
5.00% off
€1,023.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 240V AC |
| Ambient Air Temp. For Operation | 104°F to 158°F |
| Amps | 150A |
| Breaking Capacity | 10 kA 120/208V AC 50/60 Hz UL, 10 kA 240V AC 50/60 Hz UL |
| Breaking Capacity Code | B |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Application | HACR Rated |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Standard |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Operating Handle |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 3.93" |
| Device Application | Distribution |
| Electrical Connection | Lugs, Load, Line |
| Frame Size | 250A/QB |
| Height | 6.47" |
| High Amp Trip Setting | 2400A |
| Instantaneous Trip | Fixed |
| Line Rated Amps | 150A |
| Local Signalling | 1 Trip Indicator Green |
| Low Amp Trip Setting | 1200A |
| Magnetic Hold Amps | 1200A |
| Magnetic Tripping Amps | 2400A |
| Max. Air Rating | 10 kA At 240V AC |
| Max. Air Rating | 10kA |
| Max. Wire Size | 300 MCM |
| Mechanical Durability | 1000 Cycles Loaded, 5000 Cycles No Load |
| Min. Wire Size | 4 AWG |
| Mounting | Free Standing |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Power Wire Stripping Length | 0.9" |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operational Voltage | 240V |
| Returnability | Yes |
| Series | QB Series |
| Standards | Csa, Iec, Ul Listed |
| Terminal Connection | Line/Load Lug |
| Terminal Connection Type | Lug |
| Tightening Torque | 247.8 lbf.in. @ 0.04 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Trip Type | Thermal Magnetic |
| Trip Unit Technology | Thermal-Magnetic |
| Utilisation Category | Category A |
| Width | 4 1/2" , 4.5" |
Shipping Info:
| Ship weight (kg) | 2.13 |
| Ship height (cm) | 16 |
| Ship length (cm) | 24.89 |
| Ship width (cm) | 15.49 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Instantaneous Trip (Fixed)
Product Variants
| Model | Number Of Poles | Amps | Phase | Circuit Breaker Type | Frame Size | Ac Voltage Rating | Phase Connection | Control Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

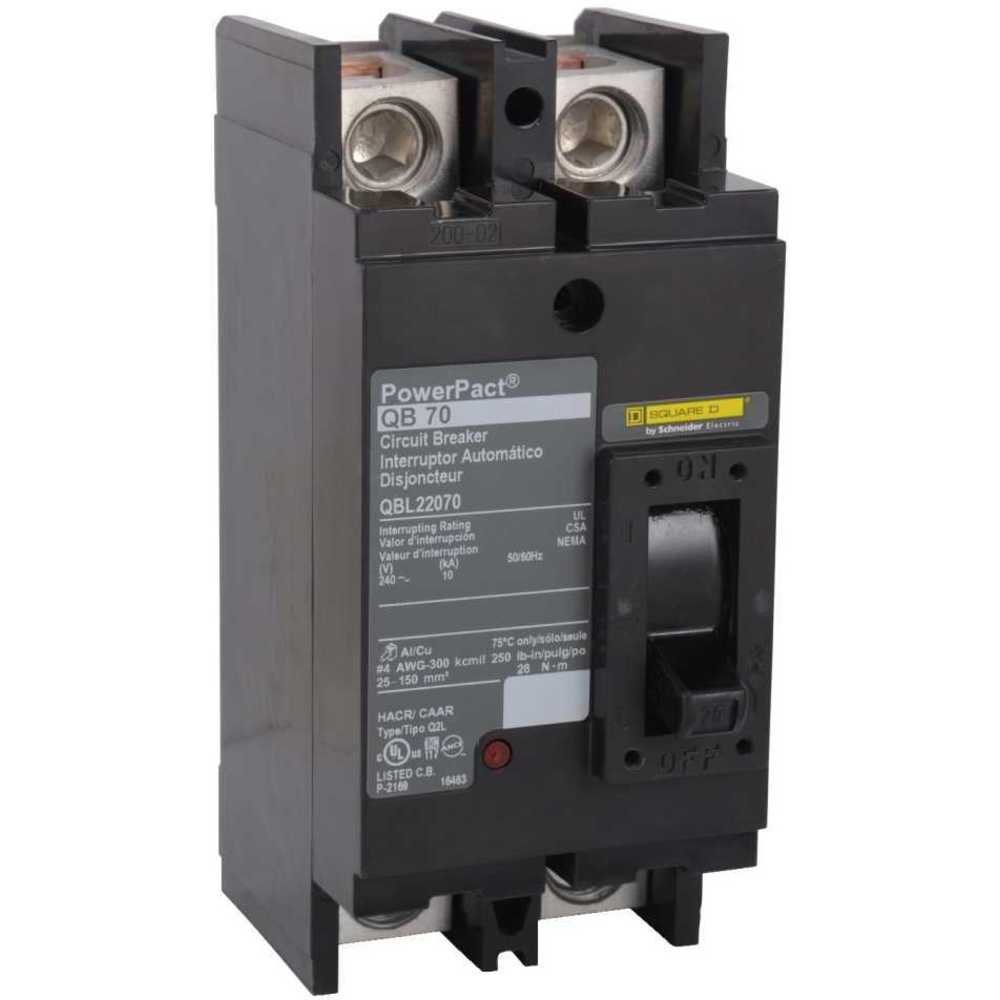

| QBL22125 | 2 | 125A | 1 | Standard | 250A/QB | 240V AC | - | Operating Handle | €471.31 | |
| QBL22150 | 2 | 150A | 1 | Standard | 250A/QB | 240V AC | - | Operating Handle | €471.31 | |
| QBL22175 | 2 | 175A | 1 | Standard | 250A/QB | 240V AC | - | Operating Handle | €437.65 | |
| QBL22200 | 2 | 200A | 1 | Standard | 250A/QB | 240V AC | - | Operating Handle | €437.65 | |
| QBL22225 | 2 | 225A | 1 | Standard | 250A/QB | 240V AC | - | Operating Handle | €471.31 | |
| QBL32125 | 3 | 125A | 3 | Standard | 250A/QB | 240V AC | ABC | Operating Handle | €1,077.37 | |
| QBL32175 | 3 | 175A | 3 | Standard | 250A/QB | 240V AC | ABC | Operating Handle | €1,077.37 |
