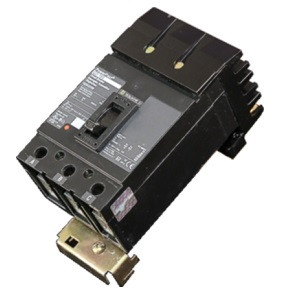

SQUARE D QBA32125 Molded Case Circuit Breaker, 125A, 3P, 10kAIC at 240V
Item: CE6HLYModel: QBA32125
7 In Stock
Ships within 2 days via
5.00% off
€1,151.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ambient Air Temp. For Operation | 104°F to 158°F |
| Amps | 125A |
| Breaking Capacity | 10 kA 120/208V AC 50/60 Hz UL, 10 kA 240V AC 50/60 Hz UL |
| Breaking Capacity Code | B |
| Circuit Breaker Application | HACR Rated |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Operating Handle |
| Depth | 3.93" |
| Device Application | Distribution |
| Electrical Connection | I-Line Connection, Line, Lugs, Load |
| Frame Type | QBA |
| Height | 6.47" |
| Line Rated Amps | 125A |
| Local Signalling | 1 Trip Indicator Green |
| Magnetic Hold Amps | 1200A |
| Magnetic Tripping Amps | 2400A |
| Mechanical Durability | 1000 Cycles Loaded, 5000 Cycles No Load |
| Mounting Height | 4.5" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Phase Connection | ABC |
| Power Wire Stripping Length | 0.9" |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operational Voltage | 240V |
| Returnability | Yes |
| Tightening Torque | 247.8 lbf.in. @ 0.04 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Trip Unit Technology | Thermal-Magnetic |
| Utilisation Category | Category A |
| Voltage | 240V |
| Voltage Type | AC |
| Width | 4.5" |
Shipping Info:
| Ship weight (kg) | 3 |
| Ship height (cm) | 16.43 |
| Ship length (cm) | 9.98 |
| Ship width (cm) | 11.43 |
| Country of Origin | US |
Product Details:
- Square D QBA32125 circuit breaker ideal for providing protection against current overloads & short circuits in power distribution applications
- Load-side lug terminals support 300 kcmil to 4 AWG aluminium / copper wires
- Features a non-interchangeable thermal-magnetic trip unit that delivers both instantaneous & time-delayed current limiting functions
- UL-listed, CSA-certified & IEC-approved
Product Variants
| Model | Phase Connection | Amps | Mounting Height | Number Of Poles | Frame Type | Voltage | Voltage Type | Control Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QBA221001 | AB | - | 3" | 3 | QBA | 240V | AC | Operating Handle | €673.36 | |
| QBA221002 | AC | - | 3" | 3 | QBA | 240V | AC | Operating Handle | €673.36 | |
| QBA221101 | AB | - | 3" | 3 | QBA | 240V | AC | Operating Handle | €673.36 | |
| QBA221102 | - | - | - | 3 | QBA | 240V | - | - | - | RFQ
|
| QBA221104 | BC | - | 3" | 3 | QBA | 240V | AC | Operating Handle | €808.00 | |
| QBA221251 | AB | - | 3" | 3 | QBA | 240V | AC | Operating Handle | €673.36 | |
| QBA221252 | AC | - | 3" | 3 | QBA | 240V | AC | Operating Handle | €673.36 |
