SQUARE D Q4L3250 Circuit Breaker 250a 3p 240vac Lug
Item: AG7CXQModel: Q4L3250Cross Ref: 5B962
In Stock : 6 Get it by Tuesday, Dec 16
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€5,238.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 240V AC |
| Amps | 250A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Standard |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 5.84" |
| For Use With | Busway Plug In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards |
| Frame Size | 400A/Q4 |
| High Amp Trip Setting | 2500A |
| Instantaneous Trip | Adjustable |
| Low Amp Trip Setting | 1250A |
| Max. Air Rating | 25kA |
| Max. Air Rating | 25 kA At 120/240V AC |
| Max. Wire Size | 250 mcm, 600 mcm |
| Min. Wire Size | 1/0 AWG |
| Mounting | Free Standing |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Standards | Csa, Iec, Ul Listed |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Trip Type | Thermal Magnetic |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 7.34 |
| Ship height (cm) | 23.09 |
| Ship length (cm) | 43.89 |
| Ship width (cm) | 29.49 |
| HS code | 8537109070 |
| Country of Origin | MX |
Product Details:
- Instantaneous Trip (Adjustable)
Product Variants
| Product | Model | Number Of Poles | Amps | Phase | Min. Wire Size | High Amp Trip Setting | Low Amp Trip Setting | Circuit Breaker Type | Ac Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Q4L2250 | 2 | 250A | 1 | 1/0 AWG | 2500A | 1250A | Standard | 240V AC | €4,534.61 | |
|
Q4L2350 | 2 | 350A | 1 | 1 AWG | 3500A | 1750A | Standard | 240V AC | €4,510.08 | |
 |
Q4L3300 | 3 | 300A | 3 | 1/0 AWG | 3000A | 1500A | Standard | 240V AC | €5,337.29 | |
 |
Q4L3350 | 3 | 350A | 3 | 1/0 AWG | 3500A | 1750A | Standard | 240V AC | €5,246.47 | |
 |
Q4L2300 | 2 | 300A | 1 | 1/0 AWG | 3000A | 1500A | Standard | 240V AC | €4,572.43 | |
 |

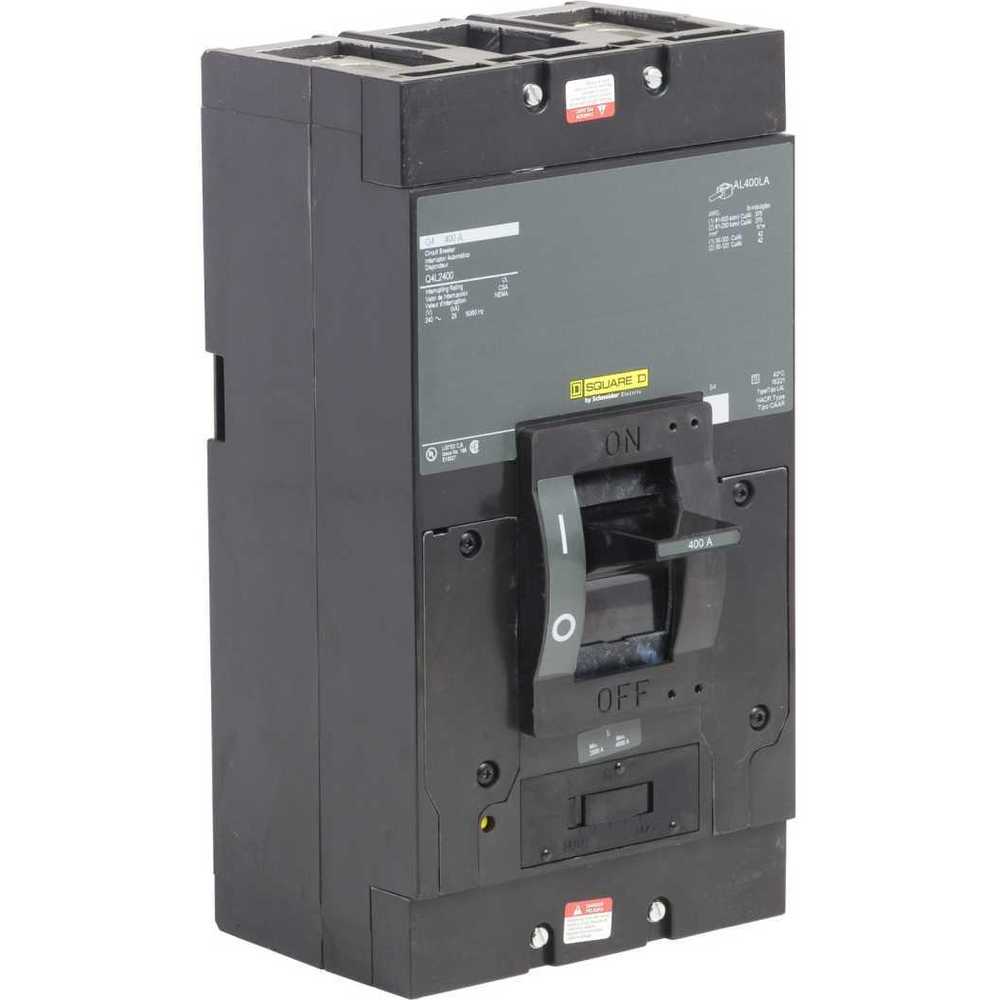

Q4L2400 | 2 | 400A | 1 | 1/0 AWG | 4000A | 2000A | Standard | 240V AC | €4,614.18 | |
 |

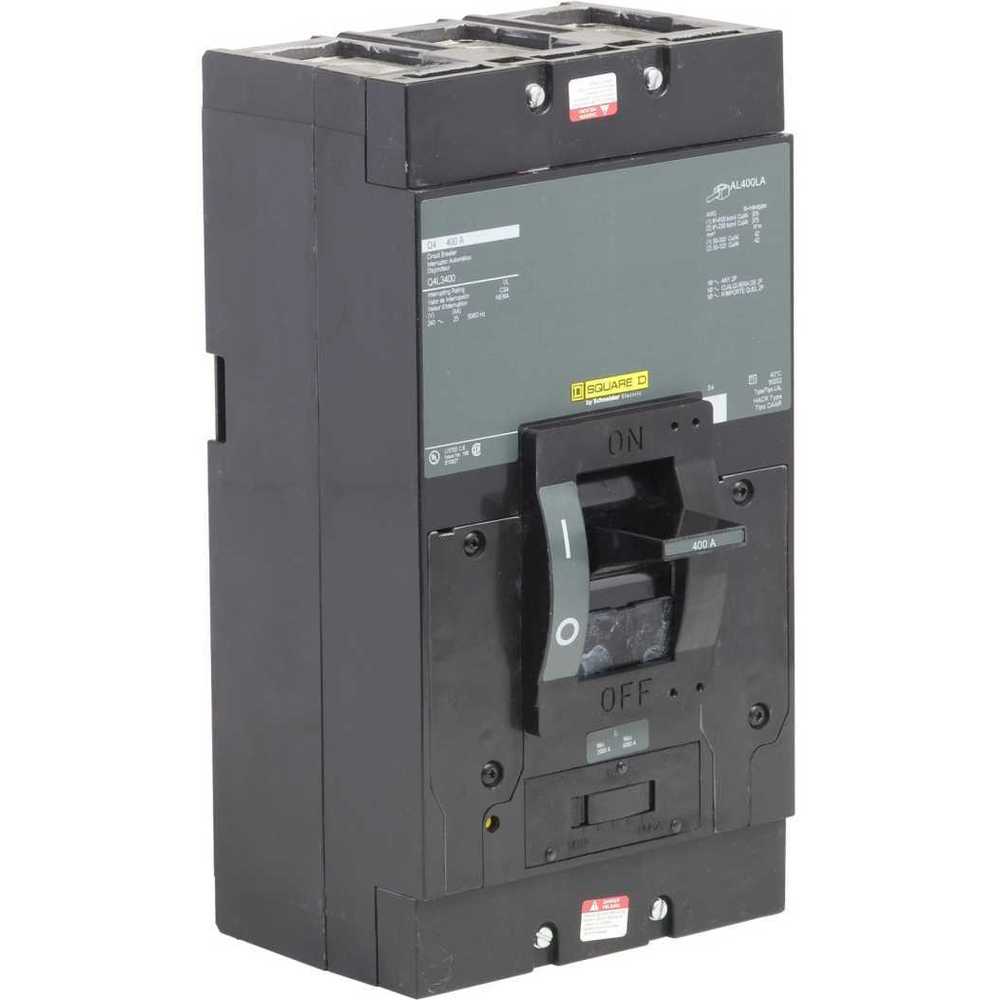

Q4L3400 | 3 | 400A | 3 | 1/0 AWG | 4000A | 2000A | Standard | 240V AC | €5,700.79 |
