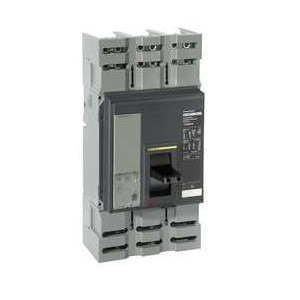

SQUARE D PLA34100 PowerPact P Molded Case Circuit Breaker, 1000A, 3 Phase
Get it by Tuesday, Mar 31
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Amps | 1000A |
| Awg Gauge | 3/0 AWG to 500 kcmil |
| Breaking Capacity | AIR 125 kA 240V AC 50/60 Hz UL 489, AIR 100 kA 480V AC 50/60 Hz UL 489, AIR 25 kA 600V AC 50/60 Hz UL 489, Icu 125 kA 240V AC 50/60 Hz IEC 60947-2, Icu 85 kA 380/415V AC 50/60 Hz IEC 60947-2 |
| Breaking Capacity Code | L |
| Circuit Breaker Application | HACR Rated |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Toggle |
| Depth | 8.05" |
| Device Application | Distribution |
| Electrical Connection | I-Line Connection, Line, Lugs, Load |
| Frame Type | PLA |
| Height | 16.16" |
| Ip Degree Of Protection | IP40 |
| Line Rated Amps | 1000A |
| Local Signalling | 1 Trip Indicator Green |
| Long Time Pick-up Adjustment Range | 1" |
| Mounting Height | 9" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Number Of Slots | 5 |
| Operating Altitude | 0 ft.. to 6561.68 ft. Without Derating, 13123.36 ft. With Derating |
| Phase Connection | ABC |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1.2" |
| Quality Labels | ce.png |
| Quantity Per Set | 1 |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 750V |
| Rated Operational Voltage | 480V |
| Rated Service Breaking Capacity | 65 kA @ 240V AC @ 50/60 Hz, 45 kA @ 380/415V AC @ 50/60 Hz |
| Returnability | Yes |
| Tightening Torque | 442.5 lbf.in. @ 0.1 sq. in. to 0.4 sq. in. @ 4 x 3/0 AWG to 500 kcmil, 8.9 lbf.in. to 11.5 lbf.in. |
| Trip Unit Name | ET 1.0I |
| Trip Unit Technology | Electronic, Basic, ET 1I, I |
| Voltage Type | AC |
| Width | 8.27" |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 41 |
| Ship length (cm) | 20.4 |
| Ship width (cm) | 21.01 |
| Country of Origin | US |
Product Details:
- Square D PLA34100 molded case circuit breaker ideal for preventing damage to electrical equipment due to current overloads or short circuits
- Provides interrupt ratings of 125kA at 240VAC and 100kA at 480VAC
- Accommodates wires (copper / aluminium) of sizes ranging between 500 kcmil & 3 AWG
- Features thermal-magnetic trip unit offering instantaneous and long-time current limiting functions
- IEC rated, UL listed and CSA certified
