SQUARE D PJL36100 Circuit Breaker 1000a 3p 600vac Box Lug
Item: AG7FVRModel: PJL36100Cross Ref: 6NHF0
In Stock : 3 Get it by Wednesday, Dec 17
10.00% off
€10,920.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Amps | 1000A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Lug In/Lug Out |
| Circuit Breaker Type | Standard |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 8.1" |
| For Use With | Equipment Gear |
| Frame | 1200A/P |
| High Amp Trip Setting | 10000A |
| High Amp Trip Setting | 10,000A |
| Instantaneous Trip | Adjustable |
| Low Amp Trip Setting | 2000A |
| Max. Air Rating | 25kA |
| Max. Air Rating | 25 kA At 600V AC |
| Max. Wire Size | 500 MCM |
| Min. Wire Size | 3/0 AWG |
| Mounting | Lug In, Lug Out |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Series | PJ Series |
| Terminal Connection | Box Lug |
| Terminal Connection Type | Box Lug |
| Trip Type | Electronic |
| Width | 8.3" |
Shipping Info:
| Ship weight (kg) | 17.51 |
| Ship height (cm) | 32.77 |
| Ship length (cm) | 20.57 |
| Ship width (cm) | 21.08 |
| HS code | 8536200020 |
| Country of Origin | US |
Product Details:
- Instantaneous Trip (Adjustable)
Product Variants
| Product | Model | Amps | Circuit Breaker Type | High Amp Trip Setting | Low Amp Trip Setting | Number Of Poles | Ac Voltage Rating | Phase | Phase Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJL36120 | 1200A | Standard | 12000A | 2400A | 3 | 600V AC | 3 | ABC | €12,133.85 | |
|
PJL36100U44A | - | - | - | - | 3 | - | - | - | €12,113.89 | |
 |

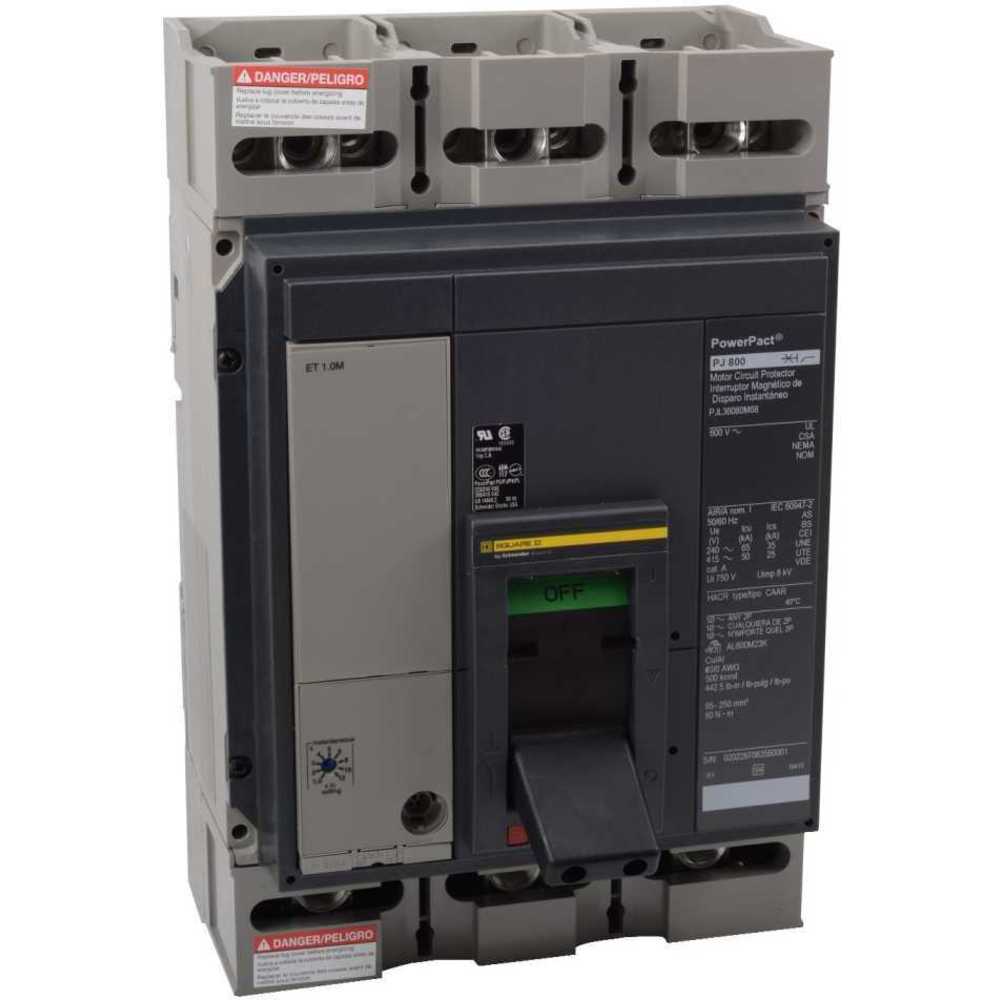

PJL36120U41A | - | - | - | - | 3 | - | - | - | €14,306.05 | |
|
PJL36120U44A | - | - | - | - | 3 | - | - | - | €16,623.85 | |
 |

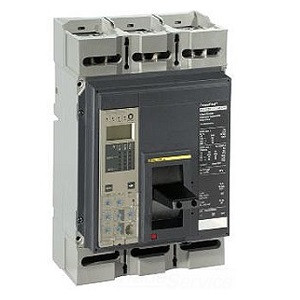

PJL36100CU41A | 1000A | - | - | - | 3 | - | - | - | - | RFQ
|
 |
PJL36000S12 | 1200A | P-Frame | - | - | 3 | - | - | - | - | RFQ
|
|
PJL36080U31A | 800A | - | - | - | 3 | - | - | - | - | RFQ
|
