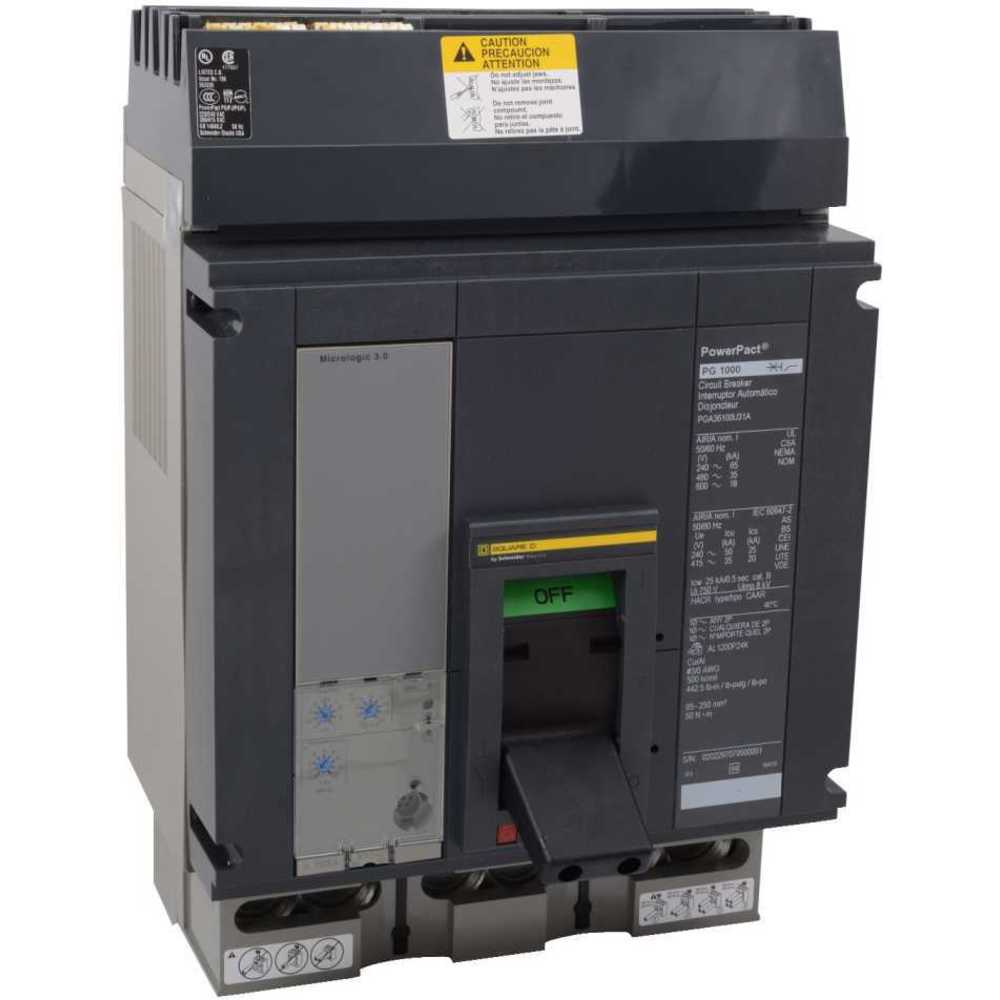

SQUARE D PJA36120 Circuit Breaker I-line Style Plug-in 1200 Amp 600vac 3p 65kaic@480v
Item: AG8TQAModel: PJA36120
In Stock : 9 Units Get it by Monday, Mar 30
5.00% off
€12,816.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Aic Rating | 65 kAIC @ 480V |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Awg Gauge | 3/0 AWG to 500 kcmil |
| Breaking Capacity | AIR 100 kA 240V AC 50/60 Hz UL 489, AIR 65 kA 480V AC 50/60 Hz UL 489, AIR 25 kA 600V AC 50/60 Hz UL 489, Icu 65 kA 240V AC 50/60 Hz IEC 60947-2, Icu 50 kA 380/415V AC 50/60 Hz IEC 60947-2 |
| Breaking Capacity Code | J |
| Circuit Breaker Application | HACR Rated |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Toggle |
| Depth | 8.05" |
| Device Application | Distribution |
| Electrical Connection | I-Line Connection, Line, Lugs, Load |
| Frame Type | PJA |
| Height | 16.16" |
| Ip Degree Of Protection | IP40 |
| Line Rated Amps | 1200A |
| Local Signalling | 1 Trip Indicator Green |
| Long Time Pick-up Adjustment Range | 1" |
| Mounting Height | 9" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Number Of Slots | 5 |
| Operating Altitude | 0 ft.. to 6561.68 ft. Without Derating, 13123.36 ft. With Derating |
| Phase Connection | ABC |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1.2" |
| Quality Labels | ce.png |
| Quantity Per Set | 1 |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 750V |
| Rated Operational Voltage | 600V |
| Rated Service Breaking Capacity | 35 kA @ 240V AC @ 50/60 Hz, 25 kA @ 380/415V AC @ 50/60 Hz |
| Returnability | Yes |
| Tightening Torque | 442.5 lbf.in. @ 0.1 sq. in. to 0.4 sq. in. @ 4 x 3/0 AWG to 500 kcmil, 8.9 lbf.in. to 11.5 lbf.in. |
| Trip Unit Name | ET 1.0I |
| Trip Unit Technology | Electronic, Basic, ET 1I, I |
| Voltage | 600V |
| Voltage Type | AC |
| Width | 8.27" |
Shipping Info:
| Ship weight (kg) | 16.89 |
| Ship height (cm) | 41.05 |
| Ship length (cm) | 20.45 |
| Ship width (cm) | 21.01 |
Product Variants
| Product | Model | Amps | Number Of Poles | Phase Connection | Voltage Type | Frame Type | Voltage | Control Type | Mounting Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PJA36080 | - | 3 | ABC | AC | PJA | 600V | Toggle | 9" | €13,490.93 | |
|
PJA36100 | - | 3 | ABC | AC | PJA | 600V | Toggle | 9" | €13,490.93 | |
|
PJA36100U44A | - | 3 | ABC | AC | PJA | 600V | Toggle | 9" | €16,400.75 | |
|
PJA36120U41A | - | 3 | ABC | AC | PJA | 600V | Toggle | 9" | €14,284.48 | |
|
PJA36120U44A | - | 3 | ABC | AC | PJA | 600V | Toggle | 9" | €16,400.75 | |
 |
PJA36080U41A | 800A | 3 | ABC | AC | PJA | 600V | Toggle | 9" | €14,284.48 | |
|
PJA36025CU44A | 250A | 3 | ABC | AC | PJA | 600V | Toggle | 9" | - | RFQ
|
