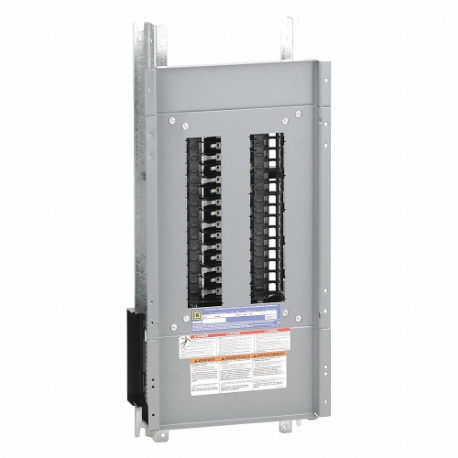

SQUARE D NQ30L2 Panelboard, 30 Spaces, 225 A, Aluminum, 27 Inch Height
Get it by Tuesday, Mar 31
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,544.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panelboard |
| Amps | 225A |
| Branch Circuit Breaker Type | QOB, QOB-VH, QHB |
| Bus Material | Aluminum |
| Busbar Material | Aluminium |
| Circuit Breaker Series | Series QHB, Series QOB, Series QOB-VH |
| Circuit Breaker Type | Plug In Miniature |
| Depth | 5 3/4" |
| Enclosure Nominal Depth | 5.75", 6.5" |
| Enclosure Nominal Height | 32" |
| Enclosure Nominal Width | 20" |
| For Use With | NQ Circuit Breakers |
| Height | 27" |
| Line Rated Amps | 225A |
| Main Circuit Breaker Adapter Kit | 4HHA3, 4HHA4, Mfr. No. NQMB2KI |
| Main Circuit Breaker Or Main Lug | Convertible, Main Lug |
| No. Of Spaces | 30 |
| Number Of Phases | 1 |
| Number Of Spaces | 30 |
| Panelboard Type | Main Lugs |
| Phase | Single |
| Rated Interrupted Amps | 10/22/65 kA |
| Recommended Enclosure | 1D691 For Main Lug, 1D698 For Main Breaker |
| Recommended Flush Cover | 4HGZ9 For Main Lug, 4HHA1 For Main Breaker |
| Recommended Ground Bar Kit | 5B716 |
| Recommended Surface Cover | 3TX80 For Main Lug, 3TX84 For Main Breaker |
| Returnability | Yes |
| Short Circuit Amps Rating | 100000 RMS Symmetrical |
| Short Circuit Current Rating | 100000 Rms Symmetrical |
| Tightening Torque | 40.005 lbf.in. to 50.007 lbf.in. @ 0.02 sq. in. to 0.10 sq. in. @ 6 AWG to 2/0 AWG, 100.01 lbf.in. @ 0.02 sq. in. to 0.10 sq. in. @ 6 AWG to 2/0 AWG, 274.99 lbf.in. @ 0.02 sq. in. to 0.3 sq. in. @ 6 AWG to 350 kcmil, 274.99 lbf.in. @ 0.02 sq. in. to 0.2 sq. in. @ 6 AWG to 250 kcmil AWG, 274.99 lbf.in. @ 0.2 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Voltage | 120/240V AC |
| Voltage Rating | 240V AC/48V DC |
| Width | 10 7/16" , 10.44" |
Shipping Info:
| Ship weight (kg) | 6.86 |
| Ship height (cm) | 68.58 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 26.51 |
| Country of Origin | MX |
Product Variants
| Product | Model | Height | Phase | Amps | Bus Material | Voltage | Recommended Ground Bar Kit | Main Circuit Breaker Or Main Lug | Short Circuit Amps Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HCR86TS | 86" | - | - | - | - | - | - | - | €2,109.20 | |
 |
NQ484L4C | 63" | - | - | - | - | - | - | - | €6,562.12 | |
 |
NQ472L2C | 39" | - | - | - | - | - | - | - | €4,180.25 | |
 |
HCP54868SU | 65.4" | - | - | Copper | - | - | - | - | €7,408.18 | |
 |
HCP235912N | 39" | - | - | Copper | - | - | - | - | €10,081.05 | |
 |
NQFTL4H | - | - | - | - | - | - | - | - | €967.23 | |
 |
NQFTL2L | - | - | - | - | - | - | - | - | €793.48 |
