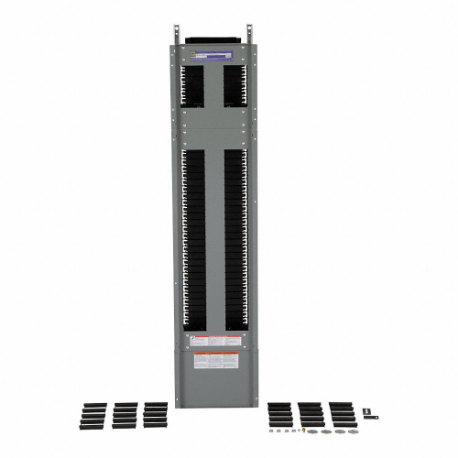

SQUARE D NF442L6C Panelboard, 42 Spaces, 600 A, Copper, 52 Inch Height, 10.4375 Inch Width
Get it by Wednesday, Apr 1
5.00% off
€4,345.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panelboard |
| Amps | 600A |
| Branch Circuit Breaker Type | EDB, EDG, EDJ |
| Bus Material | Copper |
| Busbar Material | Copper |
| Circuit Breaker Series | Series EDB, Series EDG, Series EDJ |
| Circuit Breaker Type | Bolt On |
| Connections Terminals | Lug Line 1/0 AWG to 750 kcmil Aluminium, Lug Neutral 1/0 AWG to 750 kcmil Aluminium |
| Depth | 5 3/4" |
| Enclosure Nominal Depth | 5.75", 6.5" |
| Enclosure Nominal Height | 56" |
| Enclosure Nominal Width | 20" |
| For Use With | NF Circuit Breakers |
| Height | 52" |
| Iu Rated Interrupted Amps | 65 kA |
| Line Rated Amps | 600A |
| Main Circuit Breaker Or Main Lug | Convertible, Main Lug |
| No. Of Spaces | 42 |
| Number Of Phases | 3 |
| Number Of Spaces | 42 |
| Panelboard Type | Main Lugs |
| Phase | 3 |
| Recommended Enclosure | 22P067 For Main Lug, 22P068 For Main Breaker |
| Recommended Flush Cover | 3TX91 For Main Lug, 3TX96 For Main Breaker |
| Recommended Ground Bar Kit | 5B716 |
| Recommended Surface Cover | 3TX92 For Main Lug, 3TX97 For Main Breaker |
| Returnability | Yes |
| Short Circuit Amps Rating | 100000 RMS Symmetrical |
| Short Circuit Current Rating | 100000 Rms Symmetrical |
| Tightening Torque | 274.99 lbf.in. to 300.04 lbf.in. @ 0.08 sq. in. to 0.6 sq. in. @ 1/0 AWG to 750 kcmil, 274.99 lbf.in. to 300.04 lbf.in. @ 0.08 sq. in. to 0.3 sq. in. @ 1/0 AWG to 350 kcmil AWG, 549.98 lbf.in. @ 0.08 sq. in. to 0.6 sq. in. @ 1/0 AWG to 750 kcmil AWG, 549.98 lbf.in. @ 0.08 sq. in. to 0.2 sq. in. @ 1/0 AWG to 300 kcmil, 375.006 lbf.in. @ 0.08 sq. in. to 0.6 sq. in. @ 1/0 AWG to 750 kcmil AWG, 375.006 lbf.in. @ 0.08 to 0.2 sq. in. @ 1/0AWG to 300 kcmil |
| Voltage | 277/480V AC |
| Voltage Rating | 600/347V AC |
| Width | 10 7/16" , 10.44" |
Shipping Info:
| Ship weight (kg) | 16.31 |
| Ship height (cm) | 132.08 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 26.51 |
| Country of Origin | MX |
Product Variants
| Product | Model | Height | Phase | Amps | Bus Material | Voltage | Recommended Ground Bar Kit | Main Circuit Breaker Or Main Lug | Short Circuit Amps Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HCR86TS | 86" | - | - | - | - | - | - | - | €2,109.20 | |
 |
NQ484L4C | 63" | - | - | - | - | - | - | - | €6,562.12 | |
 |
NQ472L2C | 39" | - | - | - | - | - | - | - | €4,180.25 | |
 |
HCP54868SU | 65.4" | - | - | Copper | - | - | - | - | €7,408.18 | |
 |
HCP235912N | 39" | - | - | Copper | - | - | - | - | €10,081.05 | |
 |
NQFTL4H | - | - | - | - | - | - | - | - | €967.23 | |
 |
NQFTL2L | - | - | - | - | - | - | - | - | €793.48 |
