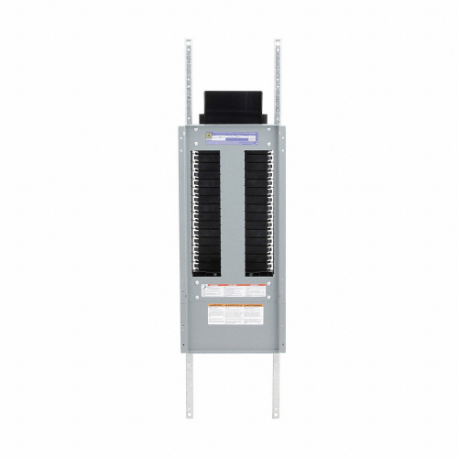

SQUARE D NF430L4 Panelboard, 30 Spaces, 400 A, Aluminum, 46 Inch Height, 10.4375 Inch Width
Get it by Tuesday, Mar 31
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€3,433.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panelboard |
| Amps | 400A |
| Branch Circuit Breaker Type | EDB, EDG, EDJ |
| Bus Material | Aluminum |
| Busbar Material | Aluminium |
| Circuit Breaker Series | Series EDB, Series EDG, Series EDJ |
| Circuit Breaker Type | Bolt On |
| Connections Terminals | Lug Line 1/0 AWG to 750 kcmil Aluminium, Lug Neutral 1/0 AWG to 750 kcmil Aluminium |
| Depth | 5 3/4" |
| Enclosure Nominal Depth | 5.75", 6.5" |
| Enclosure Nominal Height | 50", 62" |
| Enclosure Nominal Width | 20" |
| For Use With | NF Circuit Breakers |
| Height | 46" |
| Iu Rated Interrupted Amps | 65 kA |
| Line Rated Amps | 400A |
| Main Circuit Breaker Adapter Kit | 22P071 |
| Main Circuit Breaker Or Main Lug | Convertible, Main Lug |
| No. Of Spaces | 30 |
| Number Of Phases | 3 |
| Number Of Spaces | 30 |
| Panelboard Type | Main Lugs |
| Phase | 3 |
| Recommended Enclosure | 12N640 For Main Breaker, 1D700 For Main Lug |
| Recommended Flush Cover | 3TX94 For Main Breaker, 4HHA2 For Main Lug |
| Returnability | Yes |
| Short Circuit Amps Rating | 100000 RMS Symmetrical |
| Short Circuit Current Rating | 100000 Rms Symmetrical |
| Tightening Torque | 274.99 lbf.in. to 300.04 lbf.in. @ 0.08 sq. in. to 0.6 sq. in. @ 1/0 AWG to 750 kcmil, 274.99 lbf.in. to 300.04 lbf.in. @ 0.08 sq. in. to 0.3 sq. in. @ 1/0 AWG to 350 kcmil AWG, 549.98 lbf.in. @ 0.08 sq. in. to 0.6 sq. in. @ 1/0 AWG to 750 kcmil AWG, 549.98 lbf.in. @ 0.08 sq. in. to 0.2 sq. in. @ 1/0 AWG to 300 kcmil, 375.006 lbf.in. @ 0.08 sq. in. to 0.6 sq. in. @ 1/0 AWG to 750 kcmil AWG, 375.006 lbf.in. @ 0.08 to 0.2 sq. in. @ 1/0AWG to 300 kcmil |
| Voltage | 277/480V AC |
| Voltage Rating | 600/347V AC |
| Width | 10 7/16" , 10.44" |
Shipping Info:
| Ship weight (kg) | 5.63 |
| Ship height (cm) | 116.84 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 26.51 |
| Country of Origin | MX |
