SQUARE D MHL36700 Circuit Breaker Feed-thru 700 Amp 600vac 3p 65kaic@480v
Item: AG8RQTModel: MHL36700
In Stock : 2 Units Get it by Monday, Mar 30
5.00% off
€9,328.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Aic Rating | 65 kAIC @ 480V |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Awg Gauge | 3/0 AWG to 500 kcmil |
| Breaking Capacity | AIR 65 kA 240V AC 50/60 Hz UL 489, AIR 65 kA 480V AC 50/60 Hz UL 489, AIR 25 kA 600V AC 50/60 Hz UL 489, Icu 65 kA 415V AC 50/60 Hz IEC 60947-2 |
| Breaking Capacity Code | H |
| Circuit Breaker Application | HACR Rated |
| Color | Black |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Operating Handle |
| Depth | 8.05" |
| Device Application | Distribution |
| Electrical Connection | Lugs, Load, Line |
| Frame Type | MHL |
| Height | 12.86" |
| Ip Degree Of Protection | IP40 |
| Line Rated Amps | 700A |
| Local Signalling | 1 Trip Indicator Green |
| Long Time Pick-up Adjustment Range | 300-800A |
| Magnetic Tripping Amps | 1400-7000A |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Number Of Slots | 4 |
| Operating Altitude | 0 ft.. to 6561.68 ft. Without Derating, 13123.36 ft. With Derating |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1" |
| Quality Labels | ce.png |
| Quantity Per Set | 1 |
| Rated Impulse Withstand Voltage | 6 kV |
| Rated Insulation Voltage | 750V |
| Rated Operational Voltage | 600V |
| Rated Service Breaking Capacity | 33 kA @ 415V AC @ 50/60 Hz |
| Returnability | No |
| Suitability For Isolation | Yes, IEC 60947-2 |
| Tightening Torque | 442.5 lbf.in. @ 0.1 sq. in. to 0.4 sq. in. @ 3 x 3/0 AWG to 3 x 500 Kcmil |
| Trip Unit Name | ET 1.0 |
| Trip Unit Technology | Electronic, Basic, ET 1 |
| Utilisation Category | Category A |
| Voltage | 600V |
| Voltage Type | AC |
| Width | 8.27" |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 32.66 |
| Ship length (cm) | 20.45 |
| Ship width (cm) | 21.01 |
Product Variants
| Product | Model | Number Of Poles | Amps | Voltage Type | Frame Type | Voltage | Aic Rating | Color | Control Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
MHL361000 | 3 | - | AC | MHL | 600V | 65 kAIC @ 480V | - | - | €14,195.03 | |
|
MHL361200 | 3 | - | AC | MHL | 600V | 65 kAIC @ 480V | - | - | €11,638.43 | |
 |
MHL36300 | 3 | - | AC | MHL | 600V | 65 kAIC @ 480V | - | - | - | RFQ
|
 |
MHL36350 | 3 | - | AC | MHL | 600V | 65 kAIC @ 480V | - | - | €8,872.22 | |
 |
MHL36400 | 3 | - | AC | MHL | 600V | 65 kAIC @ 480V | - | - | €8,872.22 | |
 |

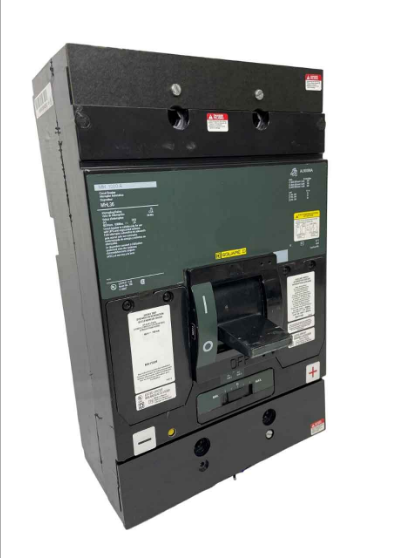

MHL36450 | 3 | - | AC | MHL | 600V | 65 kAIC @ 480V | - | - | €8,143.07 | |
|
MHL36500 | 3 | - | AC | MHL | 600V | 65 kAIC @ 480V | - | - | €8,872.22 |
