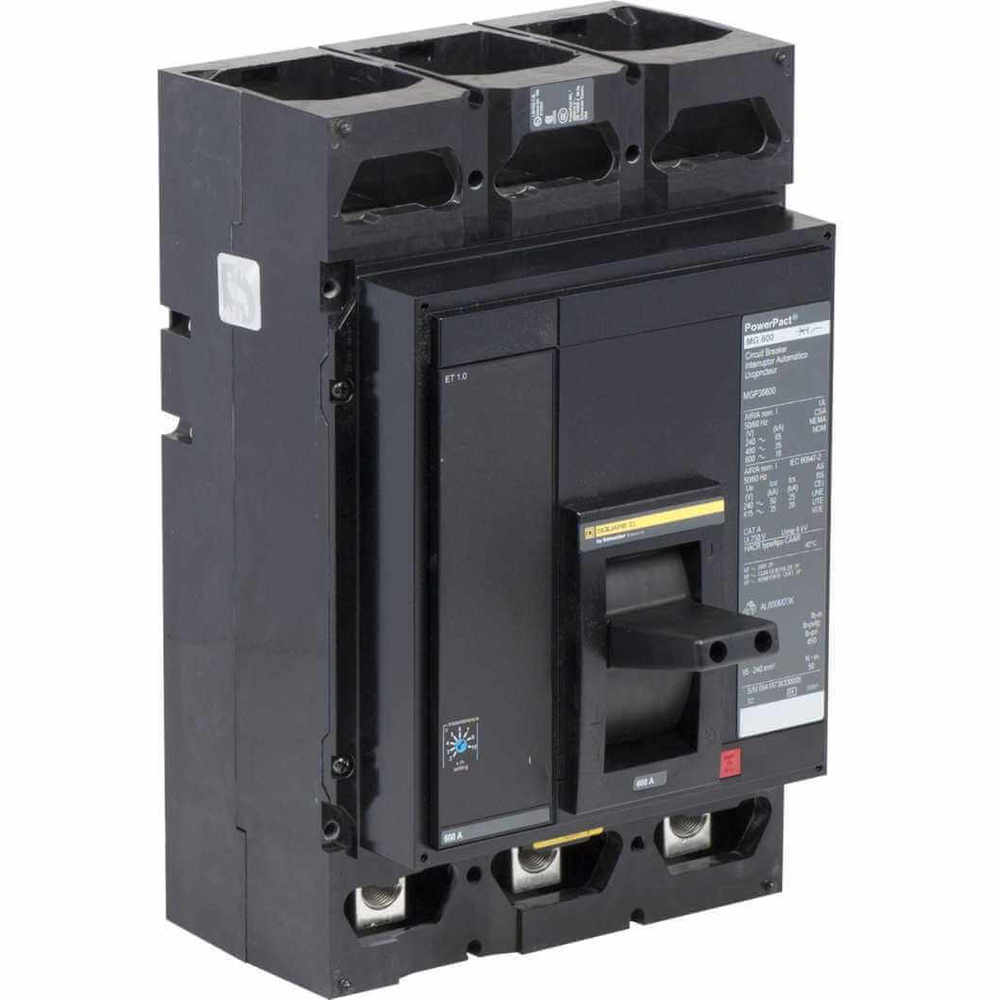

SQUARE D MGP36600 Molded Case Circuit Breaker 600V 600A
Item: AJ2DNDModel: MGP36600Cross Ref: 48M320
In Stock : 6 Units Get it by Wednesday, Aug 12
5.00% off
€6,282.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Molded Case Circuit Breaker 600V 600A |
| Ac Voltage | 600V AC |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Application | HACR Rated Applications, Distribution |
| Awg Gauge | 3/0 AWG to 500 kcmil |
| Breaking Capacity | AIR 65 kA 240V AC 50/60 Hz UL 489, AIR 35 kA 480V AC 50/60 Hz UL 489, AIR 18 kA 600V AC 50/60 Hz UL 489, Icu 50 kA 240V AC 50/60 Hz IEC 60947-2, Icu 35 kA 380/415V AC 50/60 Hz IEC 60947-2 |
| Breaking Capacity Code | G |
| Circuit Breaker Application | HACR Rated |
| Color | Black |
| Comm Code Enhanced | 32713 |
| Component Type | Circuit Breaker |
| Continuous Amps | 80% |
| Control Type | Operating Handle |
| Depth | 8.05" |
| Device Application | Distribution |
| Discount Schedule | 0DE2 |
| Electrical Connection | Terminal Nut, Line, Lugs, Load |
| Frame Type | M |
| Height | 12.86" |
| Ics Rated Service Breaking Capacity | 25 kA 240V AC 50/60 Hz, 20 kA 380/415V AC 50/60 Hz |
| Interrupt Rating | 25 kA at 240V AC, 20 kA at 380/415V AC, 65 kA at 240V AC, 35 kA at 380/415/480V AC, 18 kA at 600V AC, 50 kA at 240V AC |
| Ip Degree Of Protection | IP40 |
| Line Rated Amps | 600A |
| Local Signalling | 1 Trip Indicator Green |
| Long Time Pick-up Adjustment Range | 300-800A |
| Magnetic Tripping Amps | 1200-6000A , 1200/6000A |
| Max. Air Rating | 65 kA |
| Max. Wire Size | 500 kcmil |
| Min. Wire Size | 3/0 AWG |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Mounting Type | Bolt On |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 , 3P |
| No. Of Slots | 4 |
| Operating Altitude | 0 ft.. to 6561.68 ft. Without Derating, 13123.36 ft. With Derating , Less Than 6561.68 ft. (2000m) Without Derating 13123.36 ft. (4000m) With Derating |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE , ce.png |
| Quantity Per Set | 1 |
| Range | Powerpact |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 750V |
| Rated Operational Voltage | 600V |
| Rated Service Breaking Capacity | 25 kA @ 240V AC @ 50/60 Hz, 20 kA @ 380/415V AC @ 50/60 Hz |
| Returnability | Yes |
| Series | MGP Series |
| Suitability For Isolation | Yes , Yes, IEC 60947-2 |
| Terminal Connection | Lug, Terminal Nut |
| Tightening Torque | 442.5 lbf.in. @ 0.1 sq. in. to 0.4 sq. in. @ 3 x 3/0 AWG to 3 x 500 Kcmil |
| Trip Type | Electronic |
| Trip Unit Name | ET 1.0 |
| Trip Unit Technology | Electronic, Basic, ET 1 |
| Type | Molded Case, Main |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Utilisation Category | Category A |
| Voltage | 600V |
| Width | 8.27" |
Shipping Info:
| Ship weight (kg) | 12.62 |
| Ship height (cm) | 32.66 |
| Ship length (cm) | 20.45 |
| Ship width (cm) | 21.01 |
| Country of Origin | US |
Product Variants
| Product | Model | No. Of Poles | Line Rated Amps | Magnetic Tripping Amps | Frame Type | Suitability For Isolation | Quality Labels | Height | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

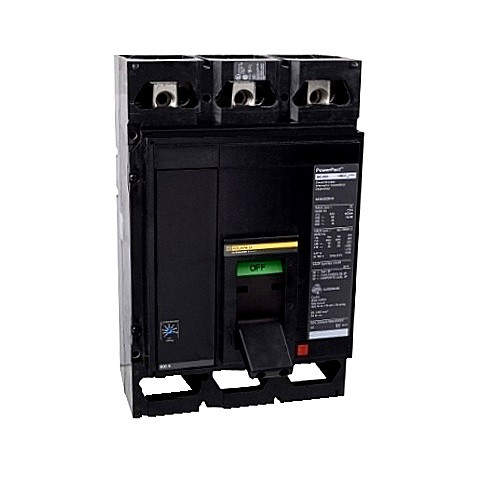

MGP36800 | 3 | 800A | 1600-8000A | MGP | Yes, IEC 60947-2 | ce.png | 12.86" | 600V | €6,877.73 |
