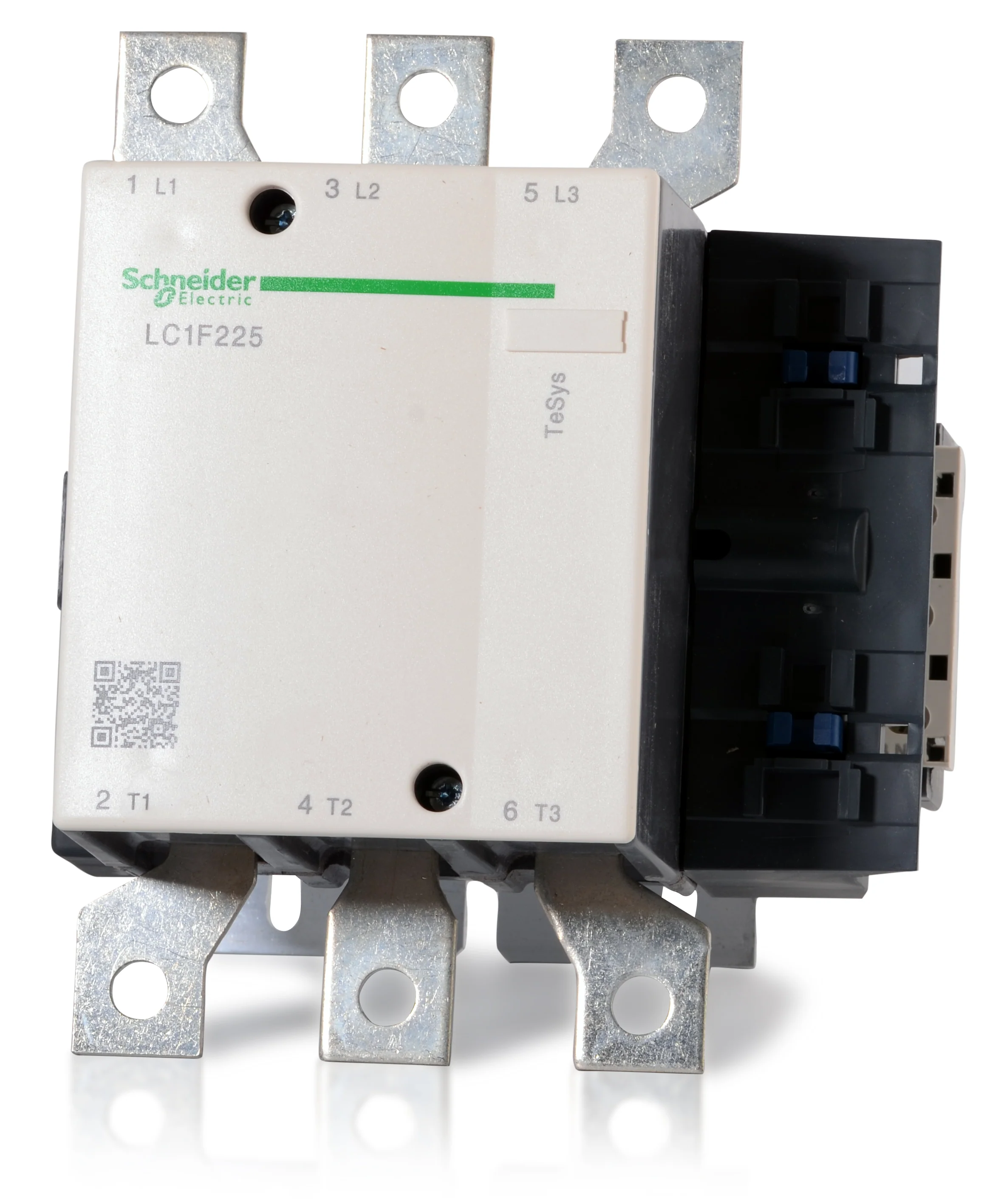

SQUARE D LC1F225G7 IEC Contactor, 225A, 120V Coil, LC1F Frame Type
Get it by Monday, Aug 24
€1,371.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Iec Contactor |
| Action | Non Reversing |
| Ambient Air Temp. For Storage | -76°F to +176°F |
| Amps | 225-315A |
| Amps Rating | 250A |
| Coil Voltage | 120V AC |
| Comm Code Enhanced | 41120 |
| Connection Type | Screw Clamp |
| Contactor Coil Voltage Type | Standard |
| Conventional Free Air Thermal Amps | 315A @ 104°F |
| Depth | 7.1" |
| Discount Schedule | 0I12 |
| Enclosure | IP20 |
| Family Series | Square D Miscellaneous |
| Heat Dissipation | 8°C @ 9.8 W |
| Height | 7 4/5" |
| Ie Rated Operational Amps | 315A at Greater Than 104°F at Greater Than Or Equal To 440V AC-1, 225A at Greater Than 131°F at Greater Than Or Equal To 440V AC-3 |
| Inductive Amps | 225A |
| Ip Degree Of Protection | IP20 Front Face With Shrouds IEC 60529, IP20 Front Face With Shrouds VDE 0106 |
| Maximum Operating Rate | 2400 Cycles/hrs. at 60°C |
| Mechanical Durability | 10 MCycles |
| Motor Power | 55/100 kW @ 200/240V @ 3 HP, 110/220 kW @ 480/500V 3 HP, 110/220 kW @ 380/440V @ 3 HP |
| Mounting Support | Plate |
| Mounting Type | Panel |
| Operating Altitude | 9842.52 ft. (3000m) Without Derating |
| Operating Time | 35 Ms Closing At Uc) 130 Ms Opening At Uc) |
| Power Dissipation Per Pole | 2 W |
| Power Pole Contact Composition | 3 NO |
| Product Or Component Type | Contactor |
| Range | Tesys |
| Range Of Product | Tesys F |
| Resistive Amps | 315A |
| Series | TeSys Series |
| Type | Full Voltage, Non Reversing |
| Ui Rated Insulation Voltage | 1000/1500V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 690V AC/460V DC |
| Width | 6 3/5" |
Shipping Info:
| Ship weight (kg) | 4.71 |
| Ship height (cm) | 16.84 |
| Ship length (cm) | 19.71 |
| Ship width (cm) | 18.11 |
