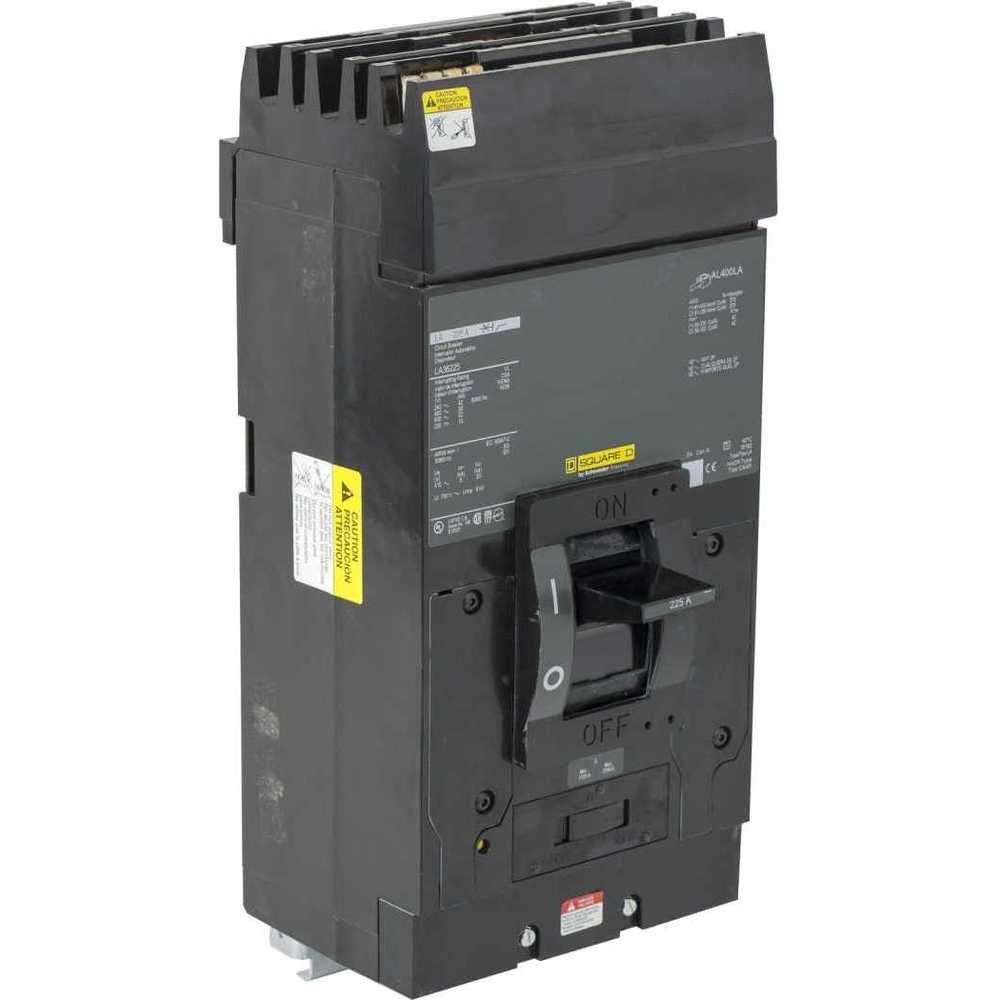

SQUARE D LA36225 Circuit Breaker 225a 3p 600vac Lug
Item: AF9HFNModel: LA36225Cross Ref: 2GPD3
In Stock : 15 Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€6,976.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Amps | 225A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | I-Line |
| Circuit Breaker Type | Standard |
| Dc Voltage | 250V DC |
| Dc Voltage Rating | 250V AC |
| Depth | 5.84" |
| For Use With | I Line Panelboards |
| Frame Size | 400A, LA |
| Height | 11" |
| High Amp Trip Setting | 2250A |
| Instantaneous Trip | Adjustable |
| Low Amp Trip Setting | 1125A |
| Max. Air Rating | 42 kA At 120/240V AC |
| Max. Air Rating | Not Rated |
| Max. Wire Size | 250 mcm, 600 mcm |
| Min. Wire Size | 1/0 AWG |
| Mounting | Plug In Panelboard |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Standards | Csa, Ul Listed |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Trip Type | Thermal Magnetic |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 8.28 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 14.83 |
| Ship width (cm) | 15.24 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Instantaneous Trip (Adjustable)
Product Variants
| Product | Model | Number Of Poles | Amps | Phase Connection | Phase | Min. Wire Size | High Amp Trip Setting | Low Amp Trip Setting | Instantaneous Trip | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LA36400 | 3 | 400A | ABC | 3 | 1/0 AWG | 4000A | 2000A | Instantaneous | €7,321.47 | |
 |
LA36200 | 3 | 200A | ABC | 3 | 1/0 AWG | 2000A | 1000A | Instantaneous | €7,699.97 | |
 |
LA36300 | 3 | 300A | ABC | 3 | 1/0 AWG | 3000A | 1500A | Instantaneous | €7,316.65 | |
 |
LA36350 | 3 | 350A | ABC | 3 | 1/0 AWG | 3500A | 1750A | Adjustable | €7,385.10 | |
 |
LA26125AC | 2 | 125A | AC | 1 | 1 AWG | 1250A | 625A | Adjustable | €9,301.60 | |
|
LA26200AB | 2 | 200A | AB | 1 | 1 AWG | 2000A | 1000A | Adjustable | €10,009.53 | |
 |
LA26200AC | 2 | 200A | AC | 1 | 1 AWG | 2000A | 1000A | Adjustable | €6,929.03 |
