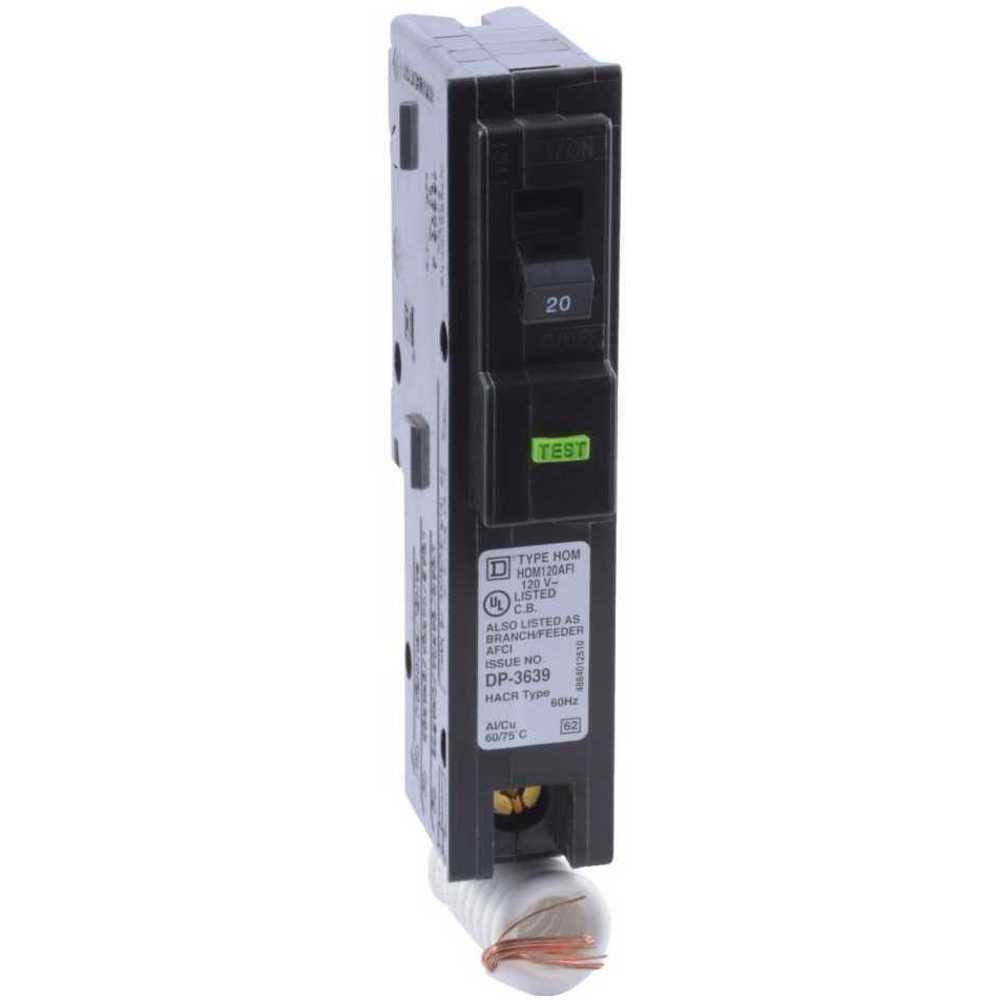

SQUARE D HOM120AFI Plug In Circuit Breaker 20a 1p 10ka 240v
Item: AG6QEVModel: HOM120AFICross Ref: 3XE16
7 In Stock
Ships within 2 days via
10.00% off
€119.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ac Voltage Rating | 120V AC |
| Amps | 20A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Arc Fault Circuit Interrupter |
| Compatible Panelboard/load Center Series | Series HOM |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 2.98" |
| For Use With | Homeline Load Center |
| Frame Size | 100A/HOM |
| Length | 3.13" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 14 AWG |
| Number Of Poles | 1 |
| Phase | Single |
| Terminal Connection | Screw Clamp |
| Terminal Connection Type | Screw Clamp |
| Width | 1" |
| Wire Size | 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.62 |
| Ship height (cm) | 0.99 |
| Ship length (cm) | 1.4 |
| Ship width (cm) | 0.3 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Amps | Ac Voltage Rating | Max. Air Rating | Depth | Dc Voltage | Terminal Connection Type | Terminal Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HOM115 | 1 | 15A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | - | Screw Clamp | €22.93 | |
 |
HOM115GFI | 1 | 15A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €161.43 | |
|
HOM120 | 1 | 20A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €21.49 | |
 |
HOM120GFI | 1 | 20A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €245.65 | |
|
HOM130 | 1 | 30A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €21.61 | |
 |
HOM140 | 1 | 40A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Lug | Lug | €34.98 | |
|
HOM150 | 1 | 50A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Lug | Lug | €31.78 |
