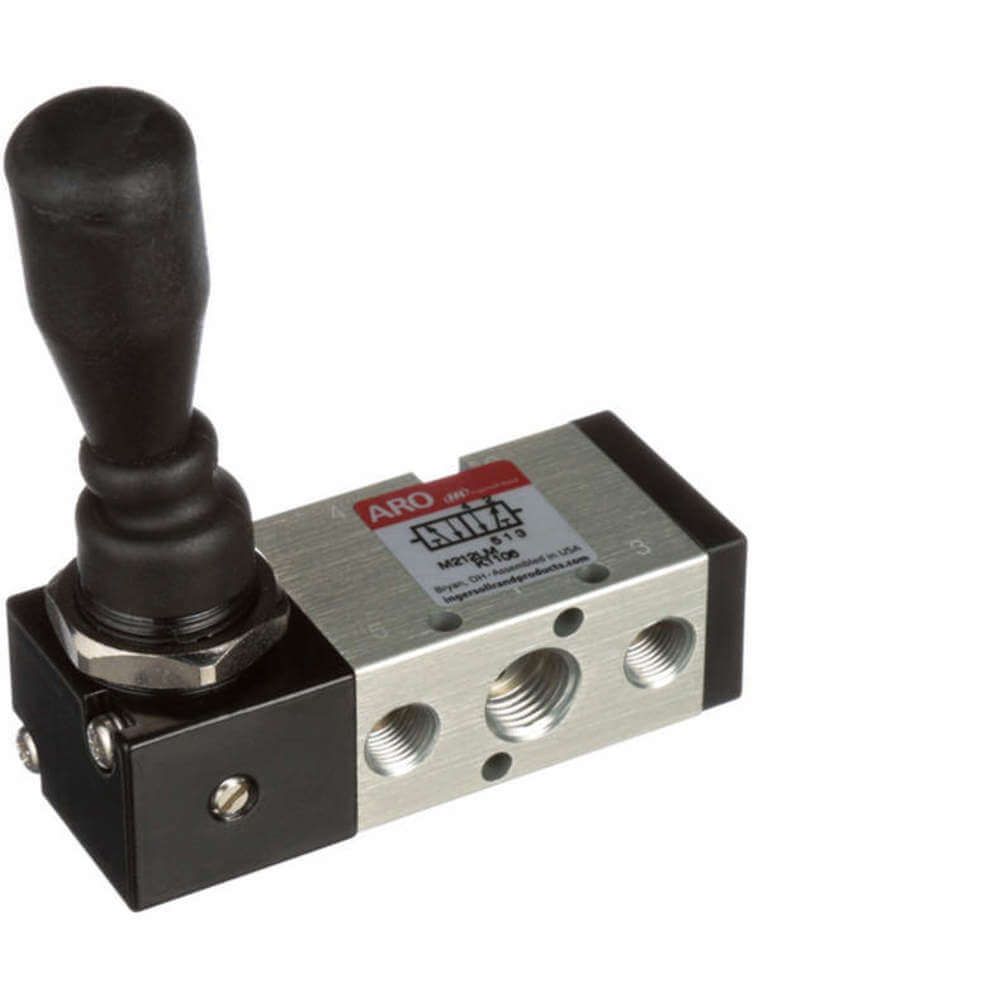

ARO M212LM Manual Air Valve Lever 1/4 Npt 4 Way
Item: AB2KPFModel: M212LMCross Ref: 1MLE1
7 In Stock
Ships within 2 days via
10.00% off
€239.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuation Force @ 125 Psi | 1.7 lbs. |
| Actuation Force @ 50 Psi | 1.7 lbs. |
| Actuator Color | Black |
| Actuator Type | Knob |
| Actuator/return | Lever/Manual |
| Application | Air Motors, Material Handling, Packaging |
| Body Material | Aluminum |
| Body Style | Panel Mounted |
| Cfm | 26 CFM |
| Coefficient Of Volume | 0.7 |
| Connection | NPT |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/4" |
| Exhaust Port Connection Type | Threaded |
| Fail Position | Open, Closed |
| Flow Rate - Maximum | 26 SCFM |
| For Media | Air |
| Max. Pressure | 140 psi |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 140 psi |
| Operating Pressure - Minimum | 20 psi |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 15°F |
| Overall Height | 4" |
| Overall Length | 3 7/16" |
| Overall Width | 1 3/8" |
| Pipe Size | 1/4" |
| Product Type | Manual Air Control Valve |
| Return Action | Manual Return |
| Seal Material | Buna-N |
| Series | MAXAIR Series |
| Temp. Range | +15°F to +122°F |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Open |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/4" |
| Valve Port Connection Type | NPT |
| Valve Type | Spool |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 4.6 |
| HS code | 8481805090 |
| Country of Origin | TW |
Product Variants
| Product | Model | Body Style | Overall Height | Overall Width | Actuator/return | Actuator Type | Coefficient Of Volume | Pipe Size | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

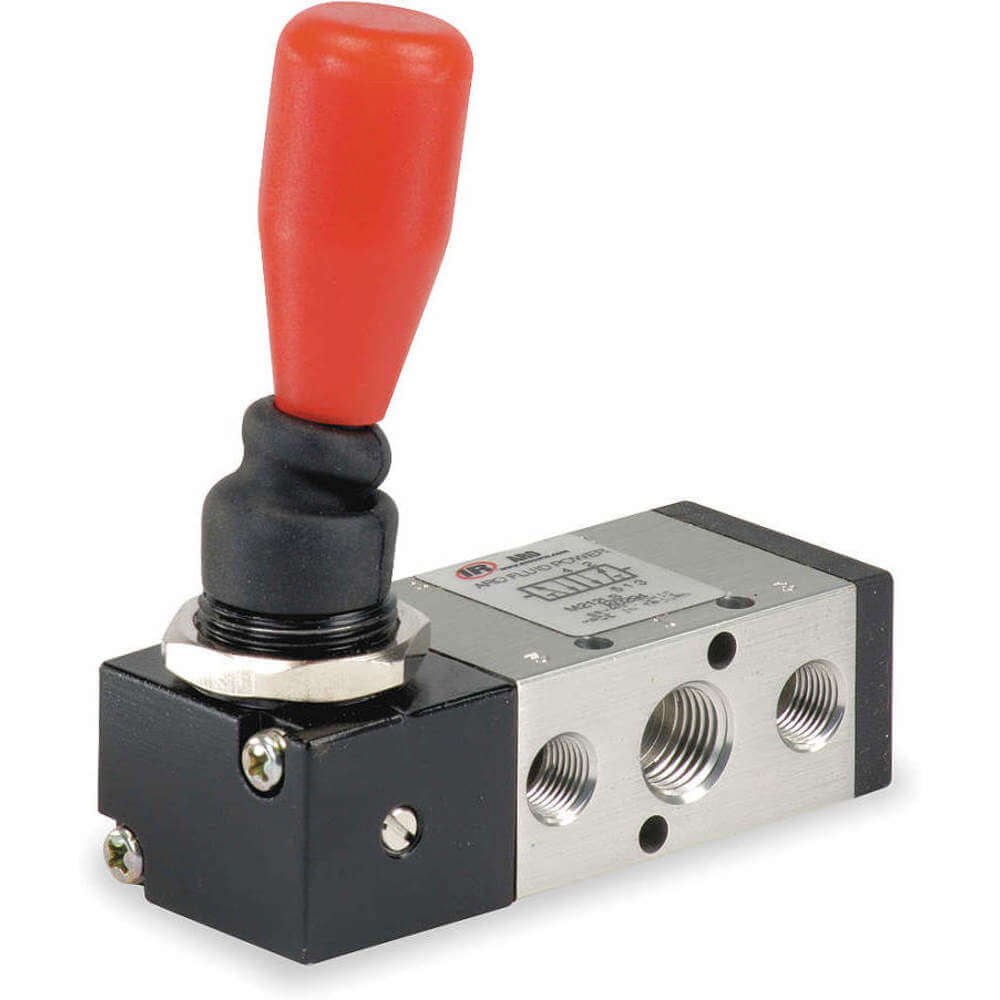

M212LS | Panel Mounted | 4" | 1 3/8" | Lever/Spring | Lever | 0.7 | 1/4" | - | €185.44 | |
 |

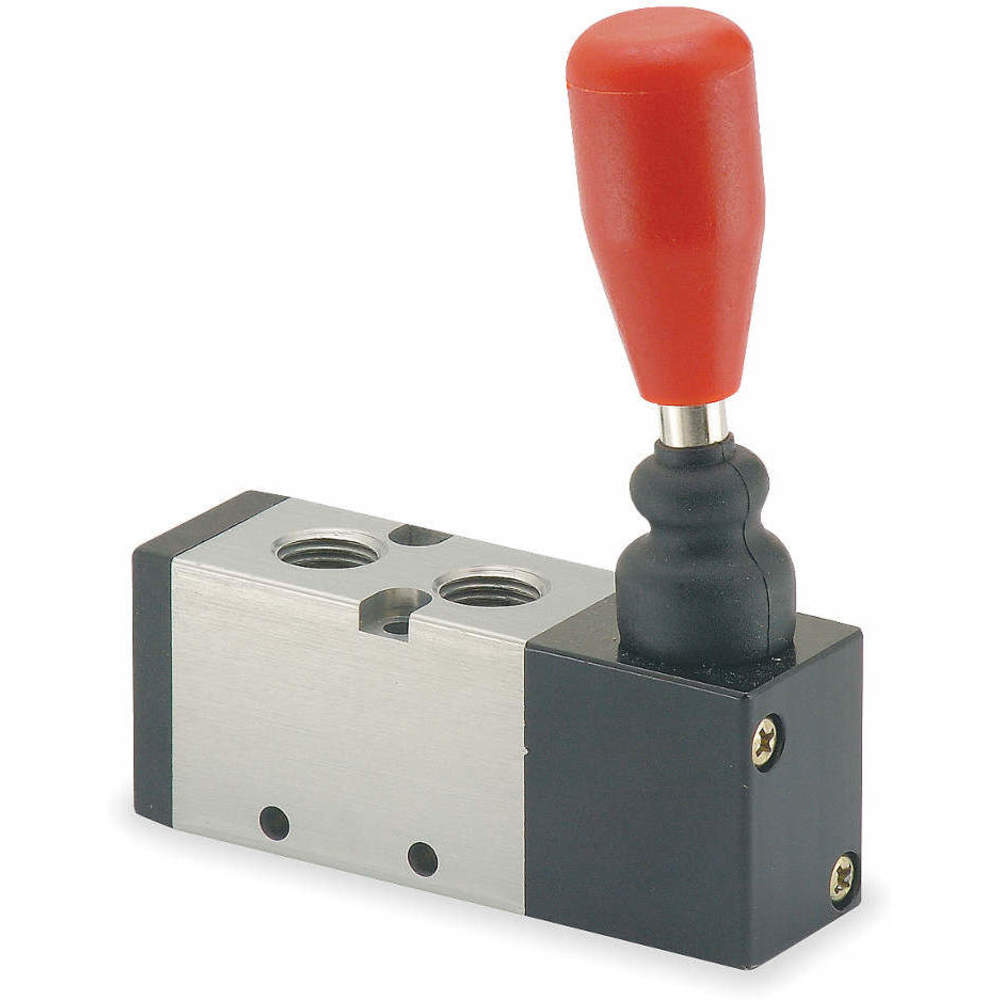

M212LM-R | Body Ported | 4 5/16" | 1" | Lever/Manual | Lever | 0.7 | 1/4" | 3 7/16" | €191.10 | |
 |

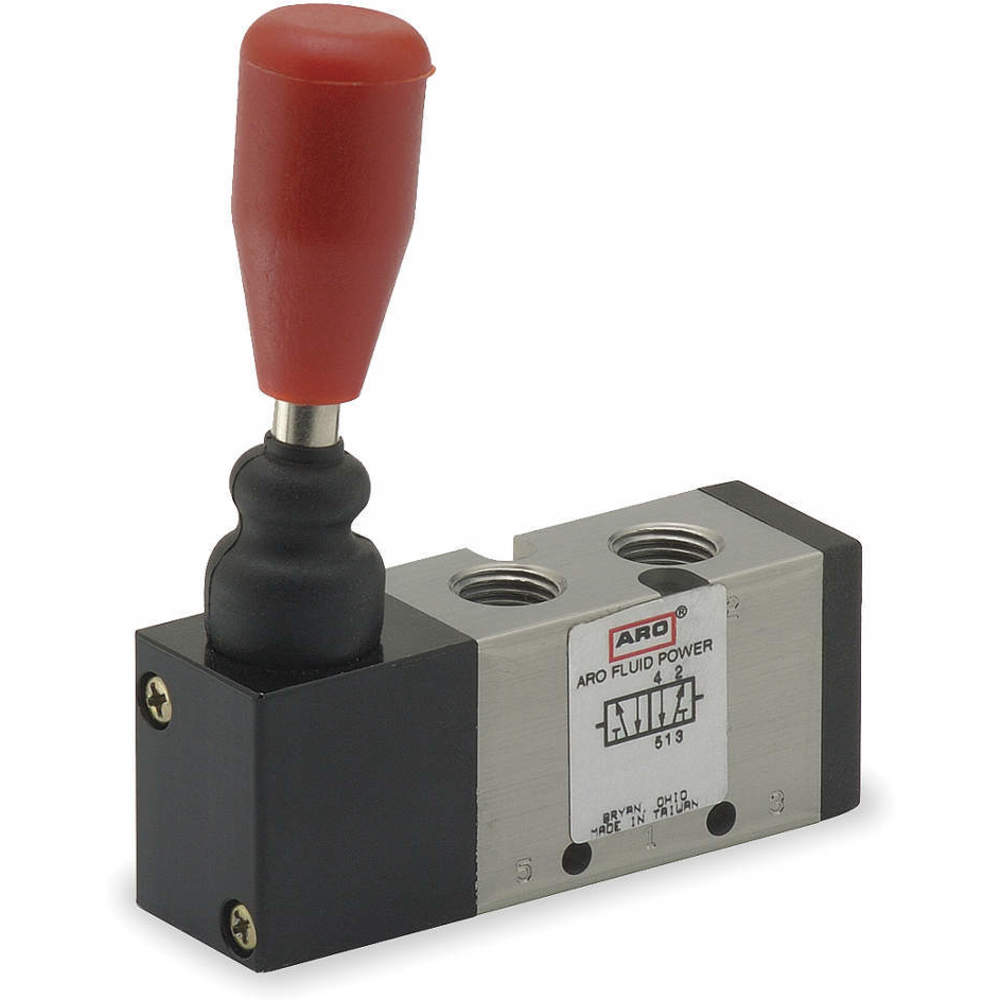

M212LS-R | Body Ported | 4 5/16" | 1" | Lever/Spring | Lever | 0.7 | 1/4" | 3 7/16" | €181.28 |
