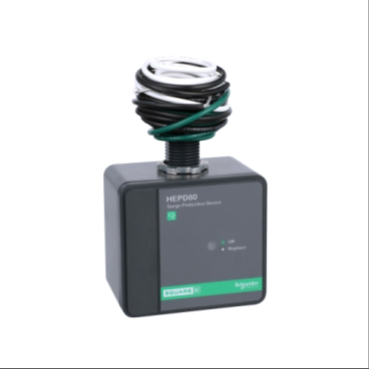

SQUARE D HEPD80 Surge Protection Device, Hepd, 80Ka, 120/240V, 1 Phase, 3 Wire
Item: AF7UVGModel: HEPD80Cross Ref: 22P065
7 In Stock
Ships within 2 days via
5.00% off
€277.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hardwired Surge Protection |
| Ambient Operating | -40°F to +149°F |
| Amps | 10 kA |
| Amps Rating | 10 kA |
| Basic Material | Nonmetallic |
| Cable Length | 34" |
| Color | Gray |
| Connection | Wire AWG 14 |
| Depth | 2.1" |
| Enclosure Material | Non-Metallic , Plastic |
| Enclosure Nema Rating | 4X |
| Enclosure Rating | NEMA 4X |
| Filter Type | Nonfiltering |
| Filtering | No |
| Green Certification Or Other Recognition | RoHS.png |
| Height | 3.23" |
| Length | 3.23" |
| Local Signalling | 1 LED Green Normal Operation, 1 LED Green Off |
| Location Type | 2 |
| Material | Plastic |
| Max. Continuing Operating Voltage | 150V L-N, L-G 300V L-L |
| Max. Continuing Operating Voltage | 150V AC |
| Max. Operating Temp. | 149°F |
| Max. Surge Current Per Mode | 40 kA |
| Max. Surge Current Per Mode | 40kA |
| Max. Surge Current Per Phase | 80 kA |
| Max. Surge Current Per Phase | 80kA |
| Mcov | 150V |
| Min. Operating Temp. | -31°F |
| Modes Of Protection | 6 |
| Modular | No |
| Mounting Style | Panel |
| No. Of Wires | 3 |
| Nominal Discharge Amps | 10 kA |
| Nominal Discharge Current | 10kA |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Product Datasheet | square-d-hepd80.pdf |
| Returnability | Yes |
| Sccr | 25 kA |
| Short Circuit Amps Rating | 25 kA |
| Short Circuit Current Rating | 25kA |
| Status Indicator | LED Light |
| Surge Amps | 80 kA |
| Surge Arrester Type | Electrical Distribution Network |
| System Connection | Parallel |
| Type | Hardwired |
| Ul Spd Type | Type 1 |
| Voltage | 120/240V AC |
| Voltage Protection Rating | 600/900/1000V , 600V L-N, 700V L-G, 1000V L-L And N-G |
| Voltage Protection Rating | 600V L-N, 700V L-G, 1000V L-L and N-G |
| Voltage Rating | 120/240V AC |
| Width | 3 18/25" , 3.72" |
| Wire | 3 |
| Wire Gauge | 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 15.24 |
| HS code | 8537109070 |
| Country of Origin | US |
