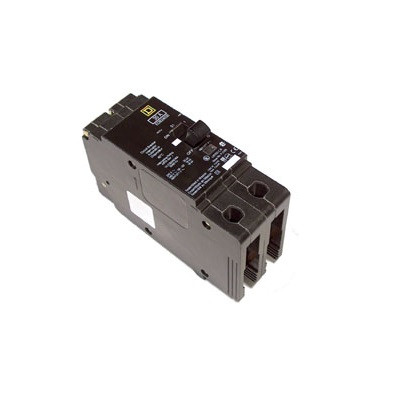

SQUARE D EJB24045 Bolt On Circuit Breaker, 65kAIC at 480V, 45A, 2 Pole
Item: CE6HZLModel: EJB24045
7 In Stock
45A
2
Ships within 2 days via
5.00% off
€591.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ambient Air Temp. For Operation | 104°F |
| Amps | 45A |
| Amps Rating | 45A |
| Awg Gauge | 12 AWG to 2/0 AWG, 14 AWG to 2/0 AWG |
| Breaking Capacity | 65 kA 277V AC, 100 kA 240V AC, 65 kA 480Y/277V AC, 100 kA 120V AC, 100 kA 120/240V AC |
| Breaking Capacity Code | J |
| Circuit Breaker Application | HID Rated, HACR Rated |
| Depth | 4.05" |
| Electrical Connection | Lugs Aluminium |
| Frame Type | EJB |
| Height | 5.66" |
| Holding Current | 630A |
| Local Signalling | Trip Indicator |
| Maximum Operating Voltage | 480/277V AC |
| Module Type | E Frame |
| Mounting Mode | Bolt On |
| No. Of Poles | 2 |
| No. Of Spaces | 2 |
| Number Of Poles | 2 |
| Protect Type | Overload, Short Circuit |
| Returnability | Yes |
| Tightening Torque | 34.5 lbf.in. @ 0.004 sq. in. to 0.009 sq. in. @ 14 AWG to 10 AWG, 49.6 lbf.in. @ 0.02 sq. in. to 0.1 sq. in. @ 8 AWG to 2/0 AWG |
| Trip Unit Rating | 1800A |
| Trip Unit Technology | Thermal-Magnetic |
| Voltage Type | AC |
| Width | 1.96" |
Shipping Info:
| Ship weight (kg) | 1.11 |
| Ship height (cm) | 14.38 |
| Ship length (cm) | 10.29 |
| Ship width (cm) | 4.98 |
| Country of Origin | US |
Product Variants
| Model | Number Of Poles | Amps | Voltage | Trip Unit Rating | Frame Type | Voltage Type | Depth | Aic Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EJB14015 | 1 | 15A | 277V | 875A | EJB | AC | 4.05" | 65 kAIC @ 480V | €218.86 | |
| EJB14020 | 1 | 20A | 277V | 875A | EJB | AC | 4.05" | 65 kAIC @ 480V | €218.86 | |
| EJB14025 | 1 | 25A | 277V | 875A | EJB | AC | 4.05" | 65 kAIC @ 480V | - | RFQ
|
| EJB14030 | 1 | 30A | 277V | 875A | EJB | AC | 4.05" | 65 kAIC @ 480V | €218.86 | |
| EJB14035 | 1 | 35A | 277V | 1800A | EJB | AC | 4.05" | 65 kAIC @ 480V | €712.80 | |
| EJB14050 | 1 | 50A | 277V | 1800A | EJB | AC | 4.05" | 65 kAIC @ 480V | - | RFQ
|
| EJB14060 | 1 | 60A | 277V | 1800A | EJB | AC | 4.05" | 65 kAIC @ 480V | €242.35 |
