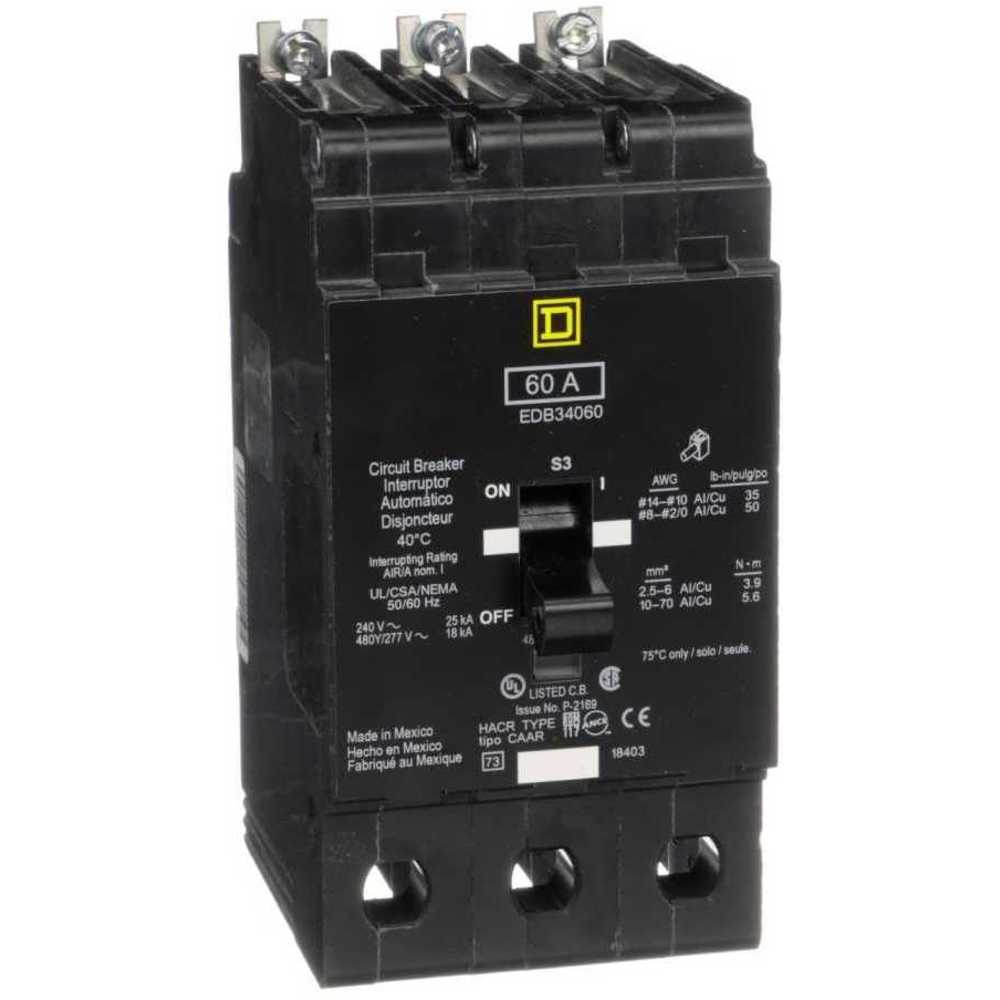

SQUARE D EDB34060 Circuit Breaker, Bolt-On, 60 A, 3 Pole, 18 kAIC @ 277 VAC
Item: AG6QCHModel: EDB34060Cross Ref: 3TW45
7 In Stock
60A
3
Ships within 2 days via
5.00% off
€383.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 277/480V AC |
| Ambient Air Temp. For Operation | 104°F |
| Amps | 60A |
| Amps Rating | 60A |
| Awg Gauge | 12 AWG to 2/0 AWG, 14 AWG to 2/0 AWG |
| Breaking Capacity | 18 kA 277V AC, 25 kA 240V AC, 18 kA 480Y/277V AC, 25 kA 120V AC, 25 kA 120/240V AC |
| Breaking Capacity Code | D |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Application | HACR Rated |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series NF |
| Dc Voltage Rating | 125/250V DC |
| Depth | 4.05" |
| Electrical Connection | Lugs Aluminium |
| For Use With | Square D NF Panelboards |
| Frame Size | 125A/EDB |
| Height | 5.66" |
| Holding Current | 630A |
| Length | 5.66" |
| Local Signalling | Trip Indicator |
| Max. Air Rating | 18 kA At 277/480V AC |
| Max. Air Rating | 18kA |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 2 AWG |
| Maximum Operating Voltage | 480/277V AC |
| Min. Wire Size | 12 AWG, 14 AWG |
| Module Type | E Frame |
| Mounting Mode | Bolt On |
| No. Of Poles | 3 |
| No. Of Spaces | 3 |
| Number Of Poles | 3 |
| Phase | Three |
| Protect Type | Overload, Short Circuit |
| Returnability | Yes |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Tightening Torque | 34.5 lbf.in. @ 0.004 sq. in. to 0.009 sq. in. @ 14 AWG to 10 AWG, 49.6 lbf.in. @ 0.02 sq. in. to 0.1 sq. in. @ 8 AWG to 2/0 AWG |
| Trip Unit Rating | 1800A |
| Trip Unit Technology | Thermal-Magnetic |
| Width | 2.94" |
Shipping Info:
| Ship weight (kg) | 1.65 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 24.89 |
| Ship width (cm) | 15.75 |
| HS code | 8536200040 |
| Country of Origin | MX |
Product Details:
- E-frame miniature circuit breaker designed for use with NF Series panelboards to protect the electric components from damage caused by excessive current flow
- Thermal-magnetic trip unit with a trip indicator and box-type lugs to accommodate 12 - 2/0 AWG aluminium and 14 - 2/0 AWG copper wires
- HACR rated for providing a maximum breaking capacity of 18 kA at 277 VAC
- UL-listed and CSA-certified
