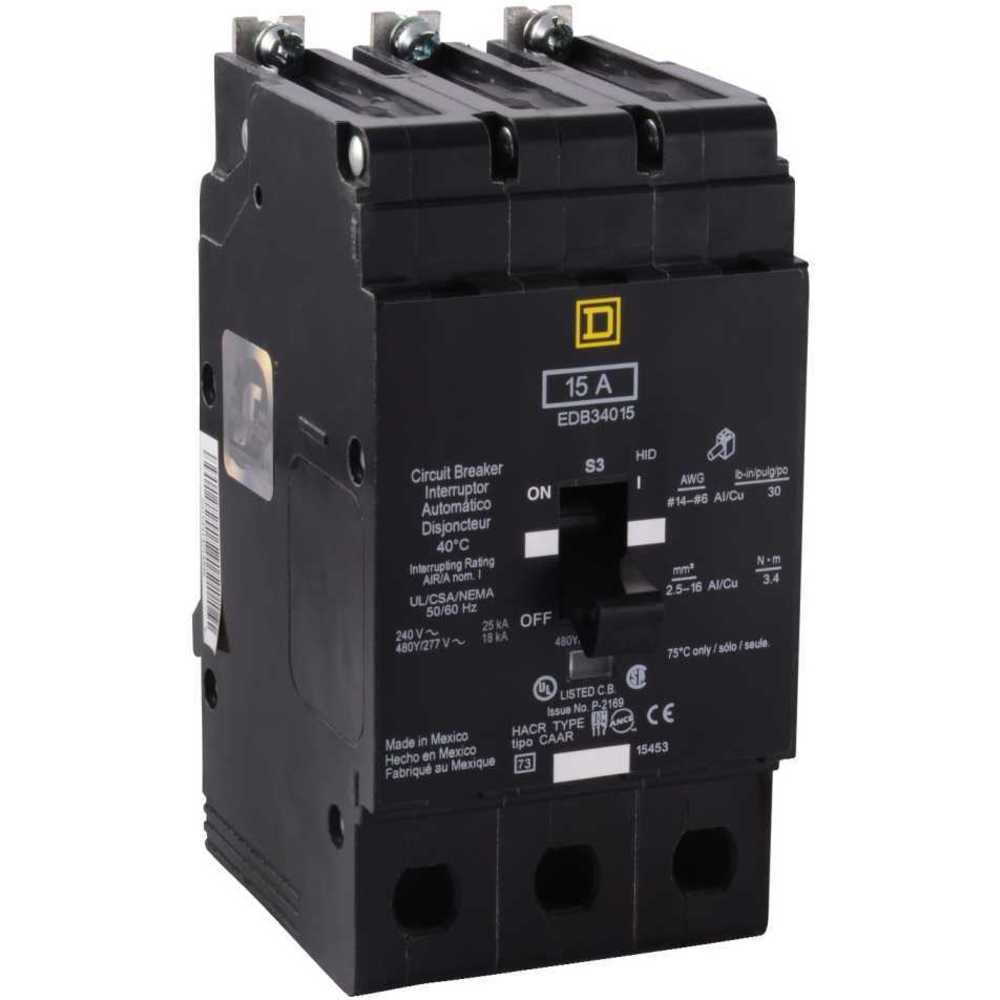

SQUARE D EDB34015 Bolt On Circuit Breaker 15a 3p 18ka 277v

Item: AG6QBZModel: EDB34015Cross Ref: 3TW37

7 In Stock

15A

Amps

3

Number Of Poles

Ships within 2 days via

~~€403.99~~

5.00% off

€383.79 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Bolt On Circuit Breaker
Ac Voltage Rating	277/480V AC
Ambient Air Temp. For Operation	104°F
Amps	15A
Amps Rating	15A
Awg Gauge	12 AWG to 6 AWG, 14 AWG to 6 AWG
Breaking Capacity	18 kA 277V AC, 25 kA 240V AC, 18 kA 480Y/277V AC, 25 kA 120V AC, 25 kA 120/240V AC
Breaking Capacity Code	D
Circuit Breaker Actuator	Toggle
Circuit Breaker Application	HACR Rated, HID Rated
Circuit Breaker Mounting Style	Bolt On
Circuit Breaker Type	Standard
Compatible Panelboard/load Center Series	Series NF
Dc Voltage	125V DC
Dc Voltage Rating	125V DC
Depth	4.05"
Electrical Connection	Lugs Aluminium
For Use With	Square D NF Panelboards
Frame Size	125A/EDB
Height	5.66"
Holding Current	270A
Length	5.66"
Local Signalling	Trip Indicator
Max. Air Rating	18 kA At 277/480V AC
Max. Air Rating	18kA
Max. Operating Temp.	104°F
Max. Wire Size	6 AWG
Maximum Operating Voltage	480/277V AC
Min. Wire Size	12 AWG, 14 AWG
Module Type	E Frame
Mounting Mode	Bolt On
No. Of Poles	3
No. Of Spaces	3
Number Of Poles	3
Phase	Three
Protect Type	Overload, Short Circuit
Returnability	Yes
Terminal Connection	Lug
Terminal Connection Type	Lug
Tightening Torque	30.09 lbf.in. @ 0.004 sq. in. to 0.02 sq. in. @ 14 AWG to 6 AWG
Trip Unit Rating	875A
Trip Unit Technology	Thermal-Magnetic
Width	2.94"

Model	Number Of Poles	Amps	Voltage	Trip Unit Rating	Min. Wire Size	Max. Air Rating	Phase	Dc Voltage Rating	Price
EDB14025	1	25A	-	875A	12 AWG, 14 AWG	18 kA At 120/240V AC	Single	Not Rated	€107.71
EDB14040SA	1	40A	-	1800A	12 AWG, 14 AWG	18 kA At 120/240V AC	Single	Not Rated	€1,605.31
EDB14050	1	50A	-	1800A	12 AWG, 14 AWG	18 kA At 120/240V AC	Single	Not Rated	€111.13
EDB14070	1	70A	-	1800A	12 AWG, 14 AWG	18 kA At 120/240V AC	Single	Not Rated	€550.04
EDB14070SA	1	70A	-	-	14 AWG	18 kA At 277/480V AC	Single	Not Rated	€1,902.77
EDB24015SA	2	15A	-	875A	12 AWG, 14 AWG	18 kA At 277/480V AC	Single	Not Rated	€1,212.01
EDB24025	2	25A	-	875A	12 AWG, 14 AWG	18 kA At 277/480V AC	Single	Not Rated	€336.67
