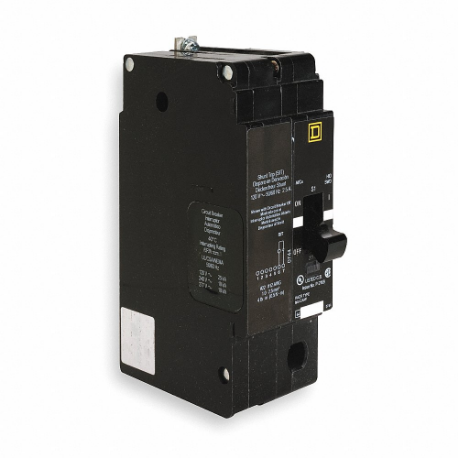

SQUARE D EDB14020SA Molded Case Circuit Breaker, 20A, 277VAC, 1 Pole, Shunt Trip
Item: CE6JVXModel: EDB14020SACross Ref: 2JWC8
7 In Stock
Ships within 2 days via
5.00% off
€1,431.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ambient Air Temp. For Operation | 104°F |
| Amps | 20A |
| Awg Gauge | 12 AWG to 6 AWG, 14 AWG to 6 AWG |
| Breaking Capacity | 18 kA 277V AC, 18 kA 240V AC, 25 kA 120V AC, 18 kA 120/240V AC |
| Breaking Capacity Code | D |
| Circuit Breaker Application | HID Rated, HACR Rated, Switching Duty Rated |
| Compatible Panelboard/load Center Series | Series NF |
| Depth | 4.05" |
| Device Composition | Shunt Trip |
| Electrical Connection | Lugs Aluminium |
| Frame Size | 125A, EDB |
| Height | 5.66" |
| Holding Amps | 270A |
| Local Signalling | Trip Indicator |
| Max. Operating Voltage | 277V AC |
| Module Type | E Frame |
| Mounting Mode | Bolt On |
| No. Of Poles | 1 |
| No. Of Spaces | 2 |
| Phase | 1 |
| Protect Type | Overload, Short Circuit |
| Returnability | Yes |
| Tightening Torque | 30.09 lbf.in. @ 0.004 sq. in. to 0.02 sq. in. @ 14 AWG to 6 AWG |
| Trip Unit Rating | 875A |
| Trip Unit Technology | Thermal-Magnetic |
| Width | 1.96" |
Shipping Info:
| Ship weight (kg) | 0.8 |
| Ship height (cm) | 10.29 |
| Ship length (cm) | 14.38 |
| Ship width (cm) | 4.98 |
| Country of Origin | MX |
Product Details:
- Square D EDB14020SA EDB Series molded case circuit breaker for providing protection to electrical components from overloading and short-circuiting
- Single pole, single phase design with 120V shunt trip for overcurrent protection
- Features non-interchangeable, thermal-magnetic trip for providing long-time and instantaneous protection against faulty currents
- Equipped with bolt-on mounting for installation in vertical or horizontal orientation and lug terminals for accommodating copper / aluminium wires
- CE-marked, IEC-approved & UL-listed
Product Variants
| Product | Model | No. Of Poles | Amps | Voltage | Returnability | Holding Amps | Max. Operating Voltage | No. Of Spaces | Ambient Air Temp. For Operation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EDB14025 | 1 | 25A | - | Yes | 270A | 277V AC | 1 | 104°F | €107.71 | |
 |
EDB14040SA | 1 | 40A | - | No | 630A | 277V AC | 2 | 104°F | €1,498.30 | |
 |
EDB14050 | 1 | 50A | - | Yes | 630A | 277V AC | 1 | 104°F | €111.13 | |
|
EDB14070 | 1 | 70A | - | Yes | 630A | 277V AC | 1 | 104°F | €550.04 | |
 |
EDB14070SA | 1 | 70A | - | No | - | - | - | - | €1,775.91 | |
 |
EDB24015SA | 2 | 15A | - | No | 270A | 480/277V AC | 3 | 104°F | €1,111.01 | |
 |
EDB24025 | 2 | 25A | - | Yes | 270A | 480/277V AC | 2 | 104°F | €336.67 |
