SQUARE D BGA36060 Circuit Breaker, 60A, 3 Pole, 600Y/347VAC, 18KA, I-Line, Thermal Magnetic
Item: CE6GRXModel: BGA36060Cross Ref: 482F44
7 In Stock
Ships within 2 days via
10.00% off
€974.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 525V AC |
| Amps | 60A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | I-Line |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | Not Rated |
| Depth | 3.5" |
| For Use With | Electrical Distribution Equipment, Industrial Control Panels |
| Frame Size | 125A, BG |
| Frame Type | BGA |
| Height | 5.39" |
| Instantaneous Trip | Fixed |
| Max. Air Rating | 100 kA At 240V AC |
| Max. Operating Temp. | 158°F |
| Max. Wire Size | 2 AWG |
| Min. Operating Temp. | -13°F |
| Min. Wire Size | 14 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Phase Connection | ABC |
| Product Datasheet | square-d-bga36060.pdf |
| Terminal Connection | Al Mechanical Lug Off End, I-Line On End |
| Trip Type | Thermal Magnetic |
| Voltage | 600V |
| Voltage Type | AC |
| Width | 3.19" |
Shipping Info:
| Ship weight (kg) | 1.71 |
| Ship height (cm) | 13.69 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 8.1 |
| Country of Origin | MX |
Product Details:
- Square D BGA36060 circuit breaker suitable for use with panelboards, motor load centres and switchboards to protect the sensitive circuits against current overloads & short circuits
- Lug terminals & I-Line clip-on mounting style for reducing the installation and maintenance downtime
- Can accommodate 14 - 2 AWG copper and aluminium wires
- Thermal-magnetic trip unit for providing both time-delayed & instantaneous current limiting functions
- CSA-certified, UL-listed, CE-marked & IEC-approved
Documentation:
Product Variants
| Model | Number Of Poles | Amps | Phase Connection | Frame Size | Ac Voltage Rating | Phase | Mounting Height | Circuit Breaker Mounting Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BGA34090Y | 3 | 90A | ABC | 125A, BG | 525V AC | Three | 4.5" | I-Line | €1,638.05 | |

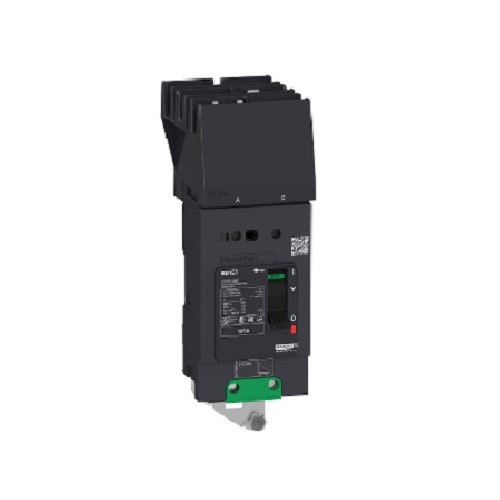

| BGA260504 | 2 | 50A | BC | - | - | - | 3" | - | €1,012.93 | |
| BGA260502 | 2 | 50A | AC | - | - | - | 3" | - | €968.59 | |
| BGA260501 | 2 | 50A | AB | 125A, BG | 525V AC | Single | 3" | I-Line | €1,643.43 | |
| BGA260404 | 2 | 40A | BC | - | - | - | 3" | - | €968.59 | |
| BGA260402 | 2 | 40A | AC | - | - | - | 3" | - | €1,227.09 | |
| BGA260401 | 2 | 40A | AB | 125A, BG | 525V AC | Single | 3" | I-Line | €968.59 |
