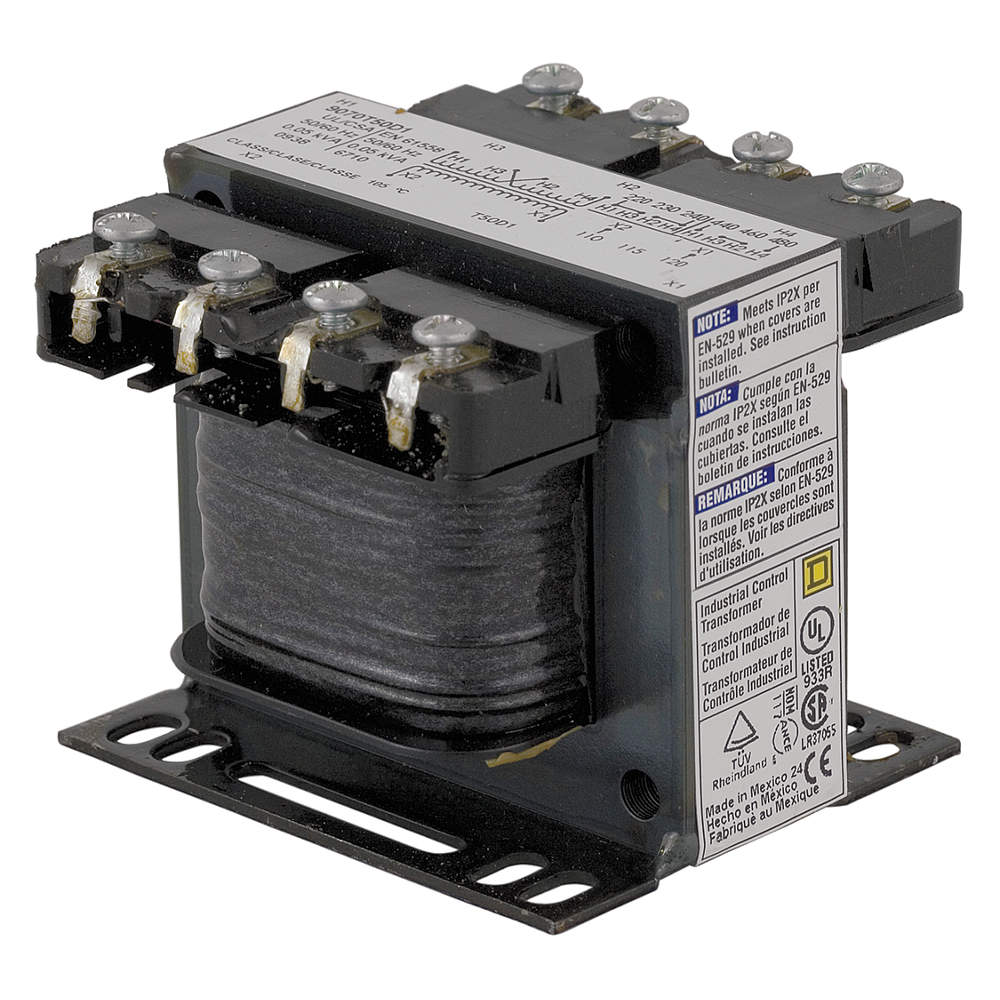

SQUARE D 9070T50D23 Industrial Control Transformer, Type T, 1 Phase, 50VA, 120 x 240V Primary, 24V Secondary
Ships within 2 days via
Payment
Product Specifications:
| Item | Control Transformer |
| Depth | 3" , 3.09" |
| Electrical Connection | Screw Clamp Terminal |
| Enclosure Finish | Epoxy Resin Varnish |
| Enclosure Type | Open |
| Fingersafe Cover Compatibility | FSC1 |
| Frequency | 50/60 Hz |
| Height | 2.58" |
| Insulation Temp. | 221°F |
| Material | Copper |
| Mounting | Panel |
| No. Of Phase | 1 |
| Phase | 1 |
| Power | 50 VA |
| Primary To Secondary Voltage | 120V x 240/24V |
| Product Datasheet | square-d-9070t50d23.pdf |
| Returnability | Yes |
| Temp. Rise | 55°C |
| Transformer Type | Finger-Safe |
| Type | T |
| Va | 50 VA |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 6.68 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.87 |
| HS code | 8504314065 |
| Country of Origin | MX |
Product Details:
Square D 9070T50D23 transformer is used to convert voltage levels and step down higher voltages to lower ones. It is useful in the energy & power, construction, automotive and telecommunication industries. This 24V transformer also provides electrical isolation between the input and output circuits.
Frequently Asked Questions:
Q. What are the different types of Square D transformers available on Raptor Supplies?
A. Raptor Supplies offers Square D control transformers and buck-boost transformers.
Q. Do Square D transformers require maintenance?
A. Transformers require periodic maintenance to ensure proper functioning and extend their lifespan. Maintenance tasks include inspecting for overheating, checking connections and monitoring insulation resistance.
Q. Why does my Square D transformer get hot while it works?
A. The heating of the transformer is caused by the dissipation of electrical energy during stepping down the voltage.
Documentation:
Product Variants
| Model | Frequency | Output Voltage | Input Voltage | Protection Device | Temp. Rise | Enclosure Finish | Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9070T200D2 | 50/60 Hz | 24V AC | 240/480V AC | - | 80°C | No Finish | T | Copper | €611.04 | |
| 9070T100D20 | 50/60 Hz | 115V AC | 208/230/460V AC | - | 55°C | Epoxy Resin Varnish | T | Copper | €452.89 | |
| 9070T200D23 | 50/60 Hz | 24V AC | 120/240V AC | - | 80°C | Epoxy Resin Varnish | T | Copper | €611.04 | |
| 9070T150D3 | 50/60 Hz | 120V AC | 208V AC | - | 55°C | Epoxy Resin Varnish | T | Copper | €486.58 | |
| 9070T200D3 | 50/60 Hz | 120V AC | 208V AC | - | 80°C | Epoxy Resin Varnish | T | Copper | €611.04 | |
| 9070T150D14 | 50/60 Hz | 24V AC | 208V AC | - | 55°C | Epoxy Resin Varnish | T | Copper | €486.58 | |
| 9070T200D13 | 50/60 Hz | 12/24V AC | 120V AC | - | 80°C | Epoxy Resin Varnish | T | Copper | €611.04 |
