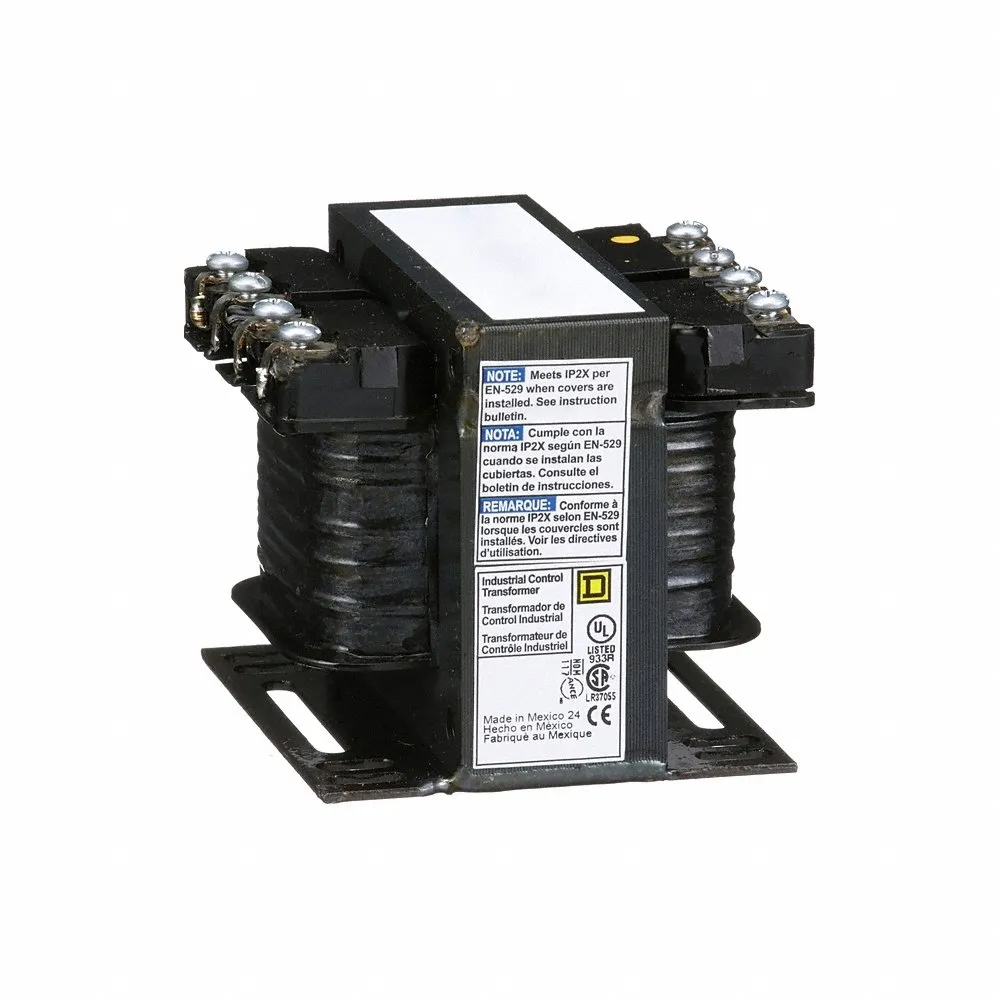

SQUARE D 9070T100D5 Transformer Control 100Va 600V120V
Item: CU4GLUModel: 9070T100D5Cross Ref: 48P257
7 In Stock
Ships within 2 days via
5.00% off
€303.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transformer |
| Comm Code Enhanced | 39210 |
| Depth | 3.34" |
| Electrical Connection | Screw Clamp Terminal |
| Fingersafe Cover Compatibility | FSC1 |
| Height | 2.89" , 73.406 mm |
| Insulation Class | 105 |
| Insulation Temp. | 221°F |
| Material | Copper |
| Max. Insulation Temp. | 105°C |
| Mounting | 12/25" x 1/5" |
| No. Of Phase | 1 |
| Power | 100 VA |
| Primary To Secondary Voltage | 600V x 120V, 575V x 115V, 550V x 110V |
| Returnability | Yes |
| Temp. Rise | 55°C |
| Type | T |
| Width | 3.38" , 85.852 mm |
Shipping Info:
| Ship weight (kg) | 1.75 |
| Ship height (cm) | 7.34 |
| Ship length (cm) | 8.48 |
| Ship width (cm) | 8.59 |
| Country of Origin | MX |
Product Variants
| Model | Frequency | Output Voltage | Input Voltage | Protection Device | Temp. Rise | Enclosure Finish | Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9070T200D2 | 50/60 Hz | 24V AC | 240/480V AC | - | 80°C | No Finish | T | Copper | €611.04 | |
| 9070T100D20 | 50/60 Hz | 115V AC | 208/230/460V AC | - | 55°C | Epoxy Resin Varnish | T | Copper | €452.89 | |
| 9070T200D23 | 50/60 Hz | 24V AC | 120/240V AC | - | 80°C | Epoxy Resin Varnish | T | Copper | €611.04 | |
| 9070T150D3 | 50/60 Hz | 120V AC | 208V AC | - | 55°C | Epoxy Resin Varnish | T | Copper | €486.58 | |
| 9070T200D3 | 50/60 Hz | 120V AC | 208V AC | - | 80°C | Epoxy Resin Varnish | T | Copper | €611.04 | |
| 9070T150D14 | 50/60 Hz | 24V AC | 208V AC | - | 55°C | Epoxy Resin Varnish | T | Copper | €486.58 | |
| 9070T200D13 | 50/60 Hz | 12/24V AC | 120V AC | - | 80°C | Epoxy Resin Varnish | T | Copper | €611.04 |
