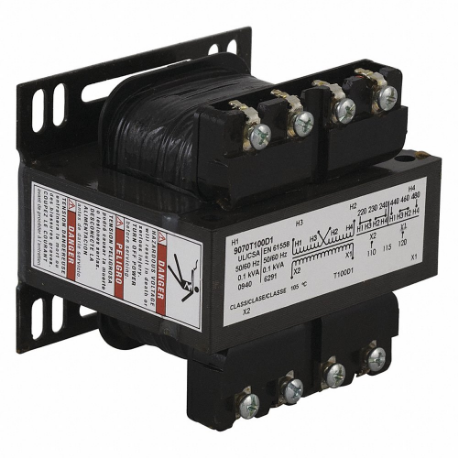

SQUARE D 9070T100D12 Transformer Control 100Va 480V240V
Item: CU4GLRModel: 9070T100D12Cross Ref: 48P256
7 In Stock
Ships within 2 days via
5.00% off
€286.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transformer |
| Comm Code Enhanced | 39210 |
| Depth | 3.34" |
| Discount Schedule | 0CP8 |
| Electrical Connection | Screw Clamp Terminal |
| Enclosure Rating | Not Rated |
| Enclosure Type | Open Device (Not Rated) |
| Family Series | Square D Transformers |
| Fingersafe Cover Compatibility | FSC1 |
| Frequency | 50/60 Hz |
| Green Environmental Attribute | Mercury Free |
| Height | 2.89" |
| Input Voltage | 480V |
| Insulation Class | 105 |
| Insulation Temp. | 221°F |
| Material | Copper , Copper Winding |
| Max. Insulation Temp. | 105°C |
| Mounting | 12/25" x 1/5" |
| No. Of Phase | 1 |
| Output Voltage | 240V |
| Power | 100 VA |
| Primary To Secondary Voltage | 480V x 240V, 460V x 230V, 440V x 220V |
| Primary Voltage | 440/460/480V |
| Returnability | No |
| Temp. Rise | 55°C |
| Terminal Type | Screw |
| Termination | Screw Clamp |
| Transformer Type | Industrial Control Transformer |
| Type | T |
| Width | 3.38" |
| Winding Material - Transformer | Copper |
Shipping Info:
| Ship weight (kg) | 1.73 |
| Ship height (cm) | 7.34 |
| Ship length (cm) | 8.48 |
| Ship width (cm) | 8.59 |
| Country of Origin | US |
Product Variants
| Model | Height | Secondary Voltage | Temp. Rise | Frequency | Power | Returnability | Depth | Insulation Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9070T200D2 | 3 1/5" | - | 80°C | 50/60 Hz | 200 VA | Yes | 3 3/4" | 266°F | €611.04 | |
| 9070T100D20 | 3 1/5" | - | 55°C | 50/60 Hz | 100 VA | Yes | 3 3/4" | 221°F | €452.89 | |
| 9070T200D23 | 3 1/5" | - | 80°C | 50/60 Hz | 200 VA | Yes | 3 3/4" | 266°F | €611.04 | |
| 9070T150D3 | 3 1/5" | - | 55°C | 50/60 Hz | 150 VA | Yes | 3 3/4" | 221°F | €486.58 | |
| 9070T200D3 | 3 1/5" | - | 80°C | 50/60 Hz | 200 VA | Yes | 3 3/4" | 266°F | €611.04 | |
| 9070T150D14 | 3 1/5" | - | 55°C | 50/60 Hz | 150 VA | Yes | 3 3/4" | 221°F | €486.58 | |
| 9070T200D13 | 3 1/5" | - | 80°C | 50/60 Hz | 200 VA | Yes | 3 3/4" | 266°F | €611.04 |
