SQUARE D 9070EO3D1 Transformer In 240/480v Out 120v 150va
Item: AF9FLQModel: 9070EO3D1Cross Ref: 2CT55
7 In Stock
Ships within 2 days via
5.00% off
€528.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Control Transformer |
| Component Type | Industrial Control Transformer |
| Depth | 3.13" |
| Electrical Connection | Screw Clamp Terminal |
| Enclosure Finish | No Finish |
| Enclosure Style | Open |
| Frequency | 60 Hz |
| Height | 4 11/25" |
| Included | 24" Pre-Wired Primary And Secondary Leads |
| Input Voltage | 220/230/240/440/460/480V AC |
| Insulation Temp. | 266°F |
| Mounting | Panel |
| Mounting Location | Foot |
| Nema Enclosure Rating | Not Rated (Open Device) |
| Output Voltage | 110/115/120V AC |
| Overall Depth | 3.13" |
| Overall Height | 4.44" |
| Overall Width | 3 3/4" |
| Phase | 1 |
| Power | 150 VA |
| Primary Voltage | 240/480/230/460/220/440V |
| Protective Device | None |
| Rated Power In Va | 150 VA |
| Returnability | Yes |
| Secondary Voltage | 110/115/120V |
| Temp. Rise | 55°C , 80°C |
| Transformer Type | Finger-Safe |
| Va | 150 VA |
| Width | 3 3/4" |
Shipping Info:
| Ship weight (kg) | 2.79 |
| Ship height (cm) | 13.72 |
| Ship length (cm) | 18.03 |
| Ship width (cm) | 16 |
| HS code | 8504314065 |
| Country of Origin | US |
Product Details:
- Fused (Yes)
Product Variants
| Model | Height | Frequency | Mounting | Depth | Power | Enclosure Finish | Overall Width | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

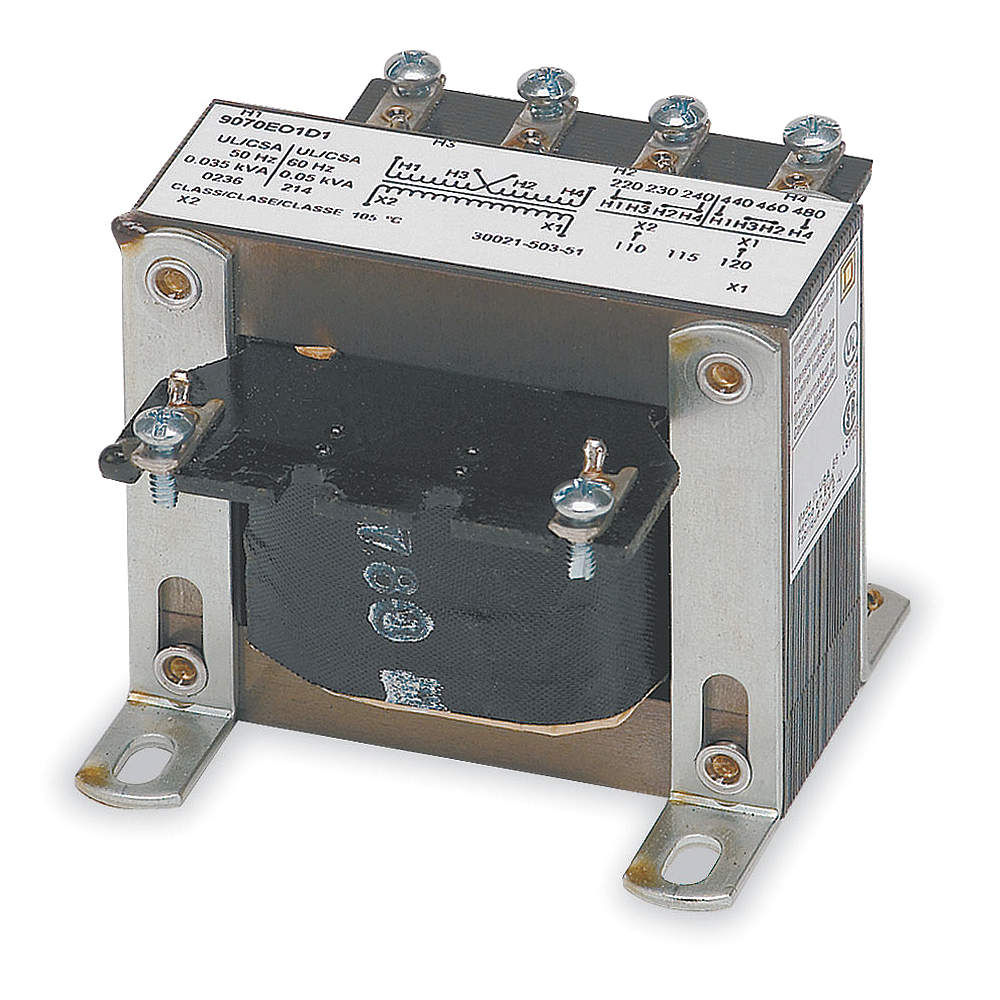

| 9070EO10D1 | 7 1/2" | 60 Hz | Foot | 9 11/25" | 3 kVA | Epoxy Resin Varnish | 9" | 7 1/2" | €4,266.27 | |

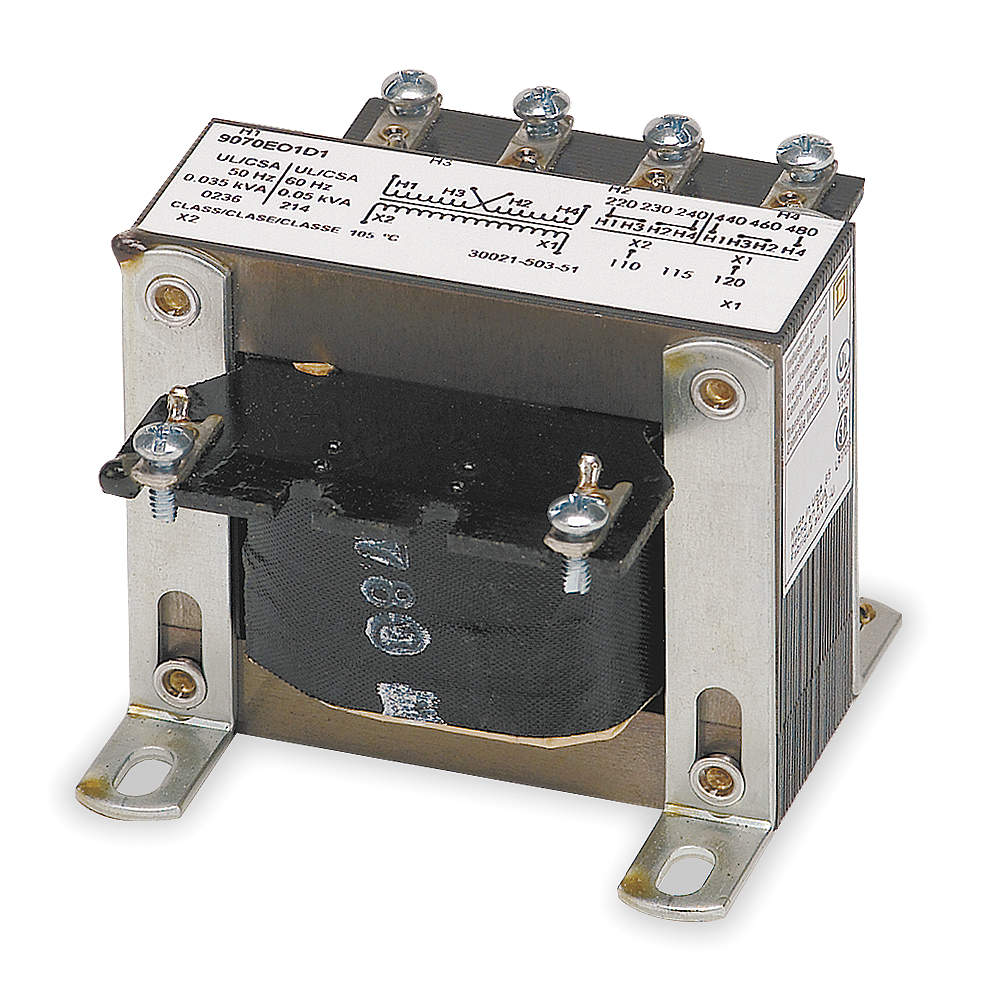

| 9070EO1D1 | 2 1/2" | 50/60 Hz | Panel | 3" | 50 VA | Epoxy Resin Varnish | 3.31" | 2 1/2" | €361.45 | |
| 9070EO2D1 | 3.38" | 50/60 Hz | Panel | 2 4/5" | 100 VA | Epoxy Resin Varnish | 86 mm | 96 mm | €484.42 |
