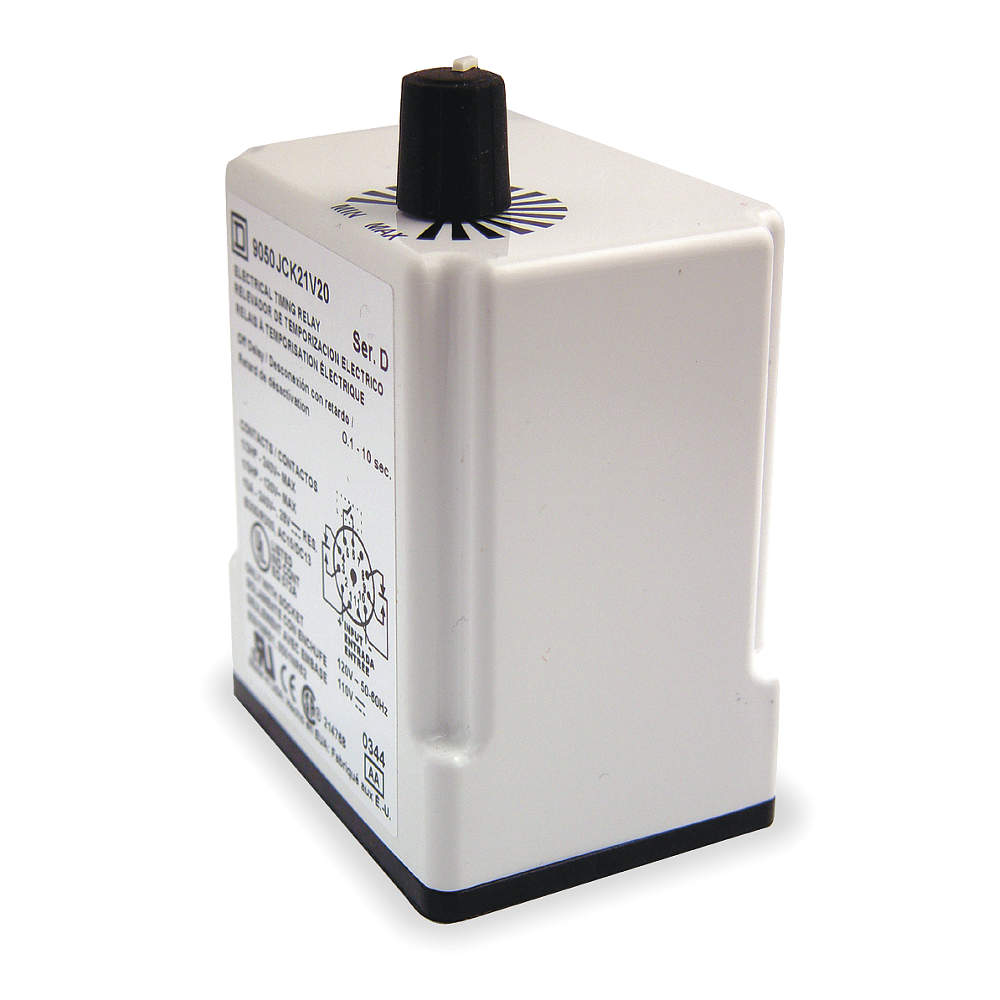

SQUARE D 9050JCK21V20 Timer Relay 10 Sec. 11 Pin 10a Dpdt 120v
Item: AG7CJJModel: 9050JCK21V20Cross Ref: 5B395
7 In Stock
Ships within 2 days via
10.00% off
€167.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Relay |
| Adjustment Method | Potentiometer |
| Adjustment Method | Rotary Knob |
| Base Type | Octal |
| Body Depth | 4.09" |
| Body Height | 2.4" |
| Body Width | 1.69" |
| Coil Rating | 2VA |
| Coil Rating | 2 VA |
| Coil Volts | 120V AC |
| Compatible With Manufacturer Model Number | 8501NR61, 8501NR62 |
| Contact Form | DPDT |
| Contact Material | Silver Nickel |
| Contact Rating (ac) | 10A @ 120/240V |
| Contact Rating (dc) | 10A @ 30V |
| Current Rating | 10A |
| Delay Function | Off Delay |
| Electrical Connection | Socket |
| Electrical Connection Type | Pin |
| Environmental Protection | Sealed |
| Frequency | 50/60 Hz |
| Function | Off Delay |
| Green Certification Or Other Recognition | RoHS.png |
| Input Voltage | 110/120V DC |
| Max. Time Setting | 10 sec. |
| Maximum Operating Temperature | 150.8°F |
| Min. Time Setting | 0.1 sec. |
| Minimum Operating Temperature | -18.4°F |
| Mounting | Plug In |
| Number Of Delay Functions | 1 |
| Number Of Pins | 11 |
| Number Of Pins/terminals | 11 |
| Operating Functions | 2 |
| Pins | 11 |
| Power Consumption | 2 VA |
| Relay Mounting Style | Socket |
| Reset Method | Time Limit Reset |
| Resistive Contact Amp Rating | 10A |
| Socket Code | B |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 5.08 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Variants
| Model | Number Of Pins | Socket Code | Min. Time Setting | Delay Function | Input Voltage | Max. Time Setting | Pins | Adjustment Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9050JCK24V20 | 11 | B | 1.2 sec. | Off Delay | 110/120V DC | 120 sec. | 11 | Rotary Knob | €198.95 | |
| 9050JCK37V20 | 8 | A | 0.3 sec. | Interval | 110/120V DC | 30 min. | 8 | Rotary Knob | €155.60 | |
| 9050JCK60V20 | 8 | A | 0.05 sec. | On Delay | 120V AC | 999 min. | 8 | Dip Switch | €270.77 | |
| 9050JCK52V20 | 8 | A | 0.3 sec. | Repeat Cycle | 110/120V DC | 30 sec. | 8 | Rotary Knob | €260.28 | |
| 9050JCK42V20 | 11 | B | 0.3 sec. | One Shot | 110/120V DC | 30 sec. | 11 | Rotary Knob | €147.08 | |
| 9050JCK31V20 | 8 | A | 0.1 sec. | Interval | 110/120V DC | 10 sec. | 8 | Rotary Knob | €147.08 | |
| 9050JCK27V20 | 11 | B | 0.3 sec. | Off Delay | 110/120V DC | 30 min. | 11 | Rotary Knob | €187.21 |
