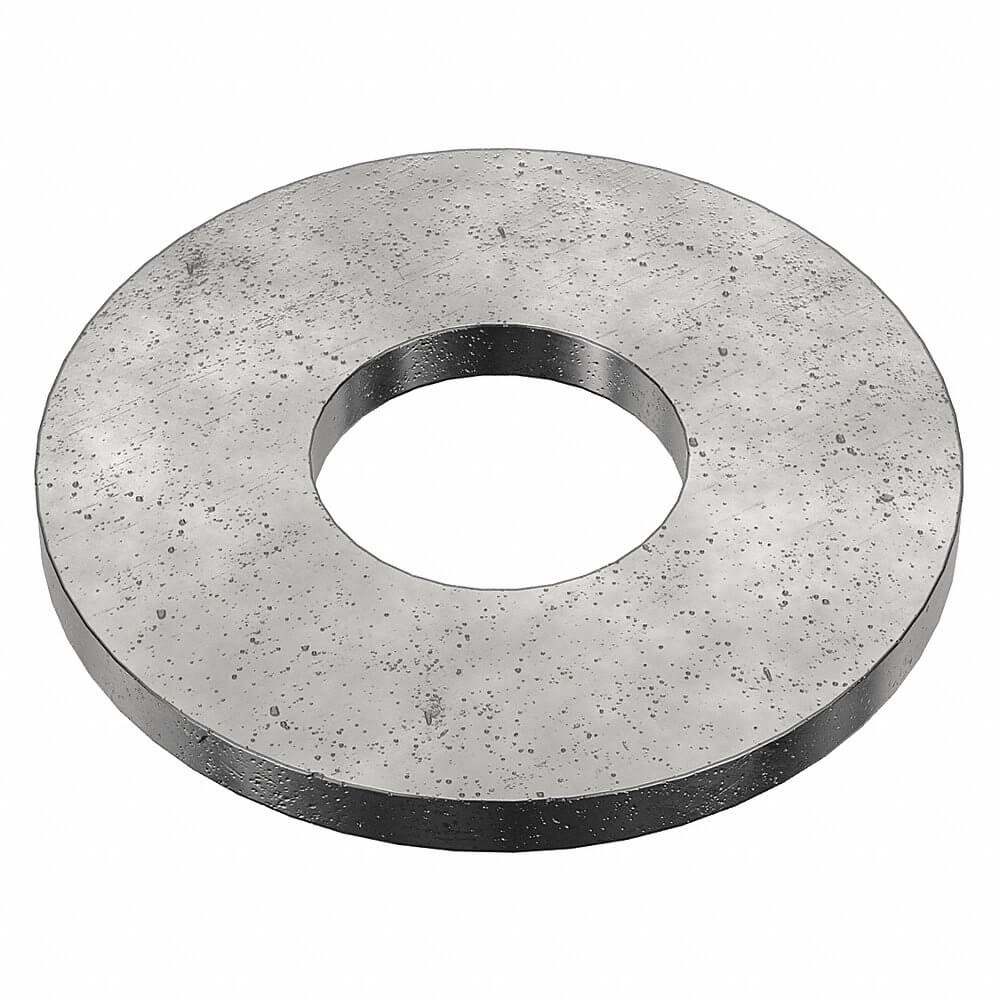

GRAINGER FWUIS075-450P USS Washer, 3/4 In Fits Bolt Size, 0.813 In I.D., 2 In O.D., Steel
Get it by Tuesday, Aug 18
5.00% off
€173.99 /pkg. of 450
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | USS Washer |
| Dimensional Standards | ASME B18.22.1 |
| Finish | Black Oxide |
| Fits Bolt Size | 3/4" |
| Flat Washer Type | Uss |
| For Screw Size | 3/4" |
| Hardness | Rockwell B49 |
| Inside Dia. | 0.813" |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Thickness | 0.156" |
| Min. Thickness | 0.156" |
| Outside Dia. | 2" |
| Rockwell Hardness | B49 |
| System Of Measurement | Imperial |
| Thickness | 0.156" |
| Thickness Tolerance | -0.01" to +0.01" |
| Washer Type | USS Washer |
Shipping Info:
| Ship weight (kg) | 18.74 |
| Country of Origin | Varies |
Product Details:
- Fits 3/4 Inch Bolt Sizes
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Material Grade/class | Thickness Tolerance | Inside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U38402.175.0001 | 1 3/4" | 0.156" | 0.18" | 0.18" | 1 3/4" | Ungraded | 0.1536" to 0.213" | 1.865" to 1.92" | 5 | €18.92 | |
 |
U38402.200.0001 | 2" | 0.156" | 0.18" | 0.18" | 2" | Ungraded | 0.153" to 0.213" | 2.115" to 2.17" | 5 | €25.08 | |
 |
U38402.250.0001 | 2 1/2" | 0.238" | 0.238" | 0.238" | 2 1/2" | Ungraded | 0.21" to 0.28" | 2.615" to 2.67" | 5 | €63.30 | |
 |
U38402.225.0001 | 2 1/4" | 0.156" | 0.22" | 0.22" | 2 1/4" | Ungraded | 0.193" to 0.248" | 2.365" to 2.42" | 5 | €45.43 | |
 |
U38402.300.0001 | 3" | 0.284" | 0.284" | 0.284" | 3" | Ungraded | 0.249" to 0.327" | 3.115" to 3.19" | 5 | €78.58 | |
 |
U38100.087.0001 | 7/8" | 0.156" | 0.165" | 0.165" | 7/8" | Ungraded | 0.136" to 0.192" | 0.931" to 0.968" | 10 | €13.65 | |
 |
U38100.112.0001 | 1 1/8" | 0.156" | 0.165" | 0.165" | 1 1/8" | Ungraded | 0.136" to 0.192" | 1.243" to 1.28" | 5 | €9.80 |
