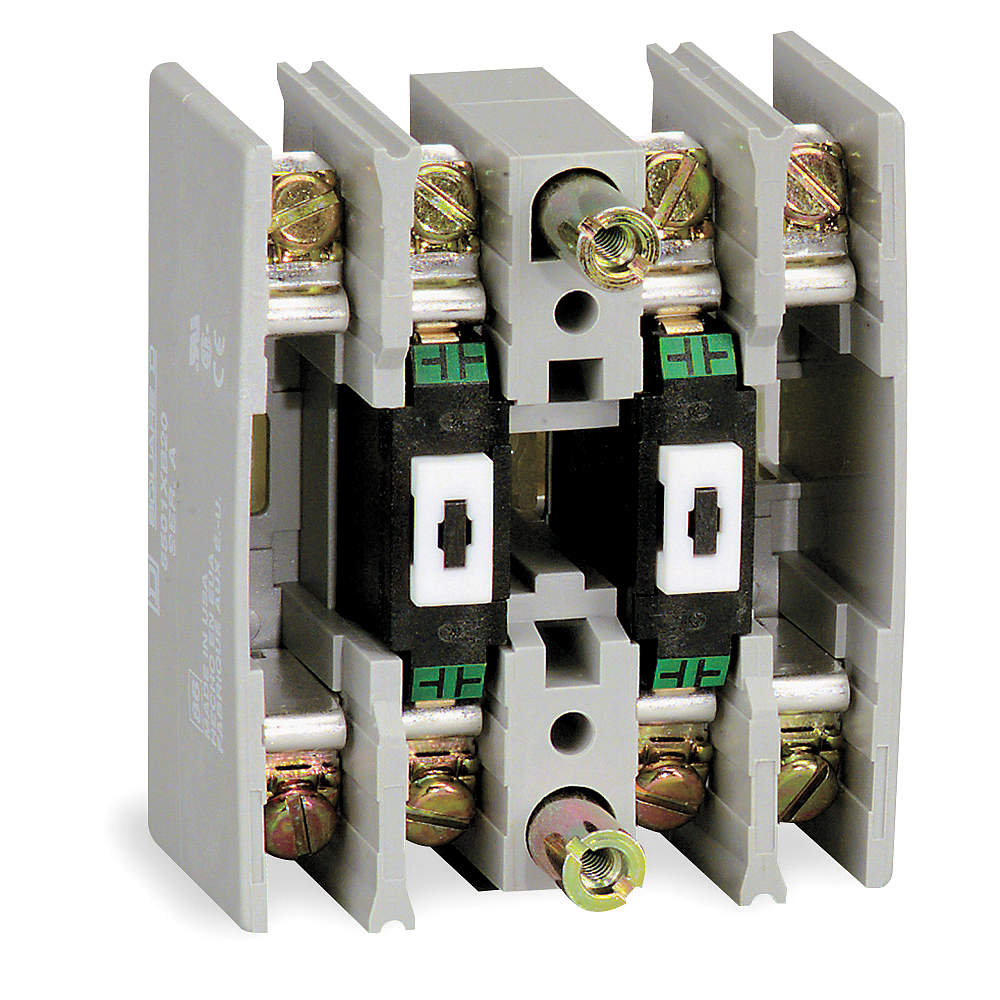

SQUARE D 8501XB20 Deck Adder
Item: AG7BLUModel: 8501XB20Cross Ref: 4B512
7 In Stock
Ships within 2 days via
5.00% off
€84.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Adder Deck |
| Component Type | Adder Deck |
| Contact Configuration | 2 No 2 Standard Contact Cartridges |
| Electrical Connection | Screw Clamp Terminal |
| For Use With | 2 Convertible Contact Cartridges |
| Module Function | Expansion |
| Rated Breaking Capacity | 6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508 |
| Rated Short-circuit Making Capacity | 60A @ 120V AC Inductive Control Circuit Ul 508, 30A @ 240V AC Inductive Control Circuit Ul 508, 15A @ 480V AC Inductive Control Circuit Ul 508, 12A @ 600V AC Inductive Control Circuit Ul 508, 10A @ Greater Than 600V AC Resistive Control Circuit Ul 508, 1.1A @ 125V DC Inductive Control Circuit Ul 508, 0.55A @ 250V DC Inductive Control Circuit Ul 508, 0.2A @ 301-600V DC Inductive Control Circuit Ul 508, 4A @ 125V DC Inductive Control Circuit Ul 508, 0.8A @ 250V DC Resistive Control Circuit Ul 508 |
| Relay Type | Control Relay |
| Returnability | Yes |
| Terminal Tightening Torque | Control Circuit 9.03 lbf.in. to 12.04 lbf.in. Screw Terminal |
| Wire Gauge | 18 AWG to 12 AWG |
| Wire Gauge Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 19.35 |
| Ship length (cm) | 49.15 |
| Ship width (cm) | 7.62 |
| HS code | 8537109070 |
| Country of Origin | MX |
Product Variants
| Product | Model | Electrical Connection | Price | |
|---|---|---|---|---|
|
8501XB40 | Screw Clamp Terminal | €173.25 |
