SQUARE D 2510KW2 Manual Motor Switch NEMA 30A 600VAC 3P
Item: AG9GCYModel: 2510KW2Cross Ref: 1H409
7 In Stock
Ships within 2 days via
10.00% off
€595.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Switch |
| Amps Rating | 30A |
| Depth | 4 1/4" |
| Enclosure Material | Painted Steel |
| Height | 4 1/4" |
| Horsepower @ Three Phase - 600v Ac | 10 hp |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 230v | 7 1/2 hp |
| Hp @ 115v Dc | 2 hp |
| Hp @ 115vdc | 2 |
| Hp @ 230v Dc | 1 1/2 hp |
| Hp @ 230vdc | 1-1/2 |
| Hp @ 3 Phase - 460-575v | 10 hp |
| Hp @ 3 Phase - 460-575v | 10 |
| Hp @ 3 Phase - 480v | 10 hp |
| Hp @ 3 Phase - 575v | 10 hp |
| Hp @ Single Phase - 240v Ac | 7 1/2 hp |
| Hp @ Three Phase - 240v Ac | 7 1/2 hp |
| Hub Diameter | 3/4" |
| Hub Type | Dead End |
| Max Current (ac) | 30A |
| Max. Voltage | 600V AC |
| Maximum Voltage Rating | 230V DC/600V AC |
| Mounting Style | Surface |
| Nema Enclosure Rating | 4 |
| Number Of Gangs | 1 |
| Number Of Poles | 3 |
| Operator | Toggle |
| Operator | Toggle Switch |
| Overall Depth | 4.25" |
| Overall Height | 4.38" |
| Overall Width | 3" |
| Phase | Three |
| Phase Loss Sensitivity | No |
| Pilot Light | No |
| Resistance Properties | Temperature Resistant |
| Series | TYPE K Series, CLASS 2510 Series |
| Starter Style | NEMA |
| Starter Type | NEMA |
| Width | 3" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 1.33 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 13.72 |
| Ship width (cm) | 12.19 |
| Country of Origin | MX |
Product Details:
- Enclosure NEMA Rating : 4
- HP @ 3 Phase - 240V : 7-1/2
- Phase Loss Sensitivity : No
- Special Features: Water Tight and Dust Tight
Product Variants
| Product | Model | Number Of Poles | Amps Rating | Phase | Mounting Style | Enclosure Material | Height | Max. Voltage | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2510KG1 | 2 | 30A | Single | Surface | Painted Steel | 4 1/4" | 600V AC | 2 3/4" | €136.59 | |
 |
2510KG2 | 3 | 30A | Three | Surface | Painted Steel | 4 1/4" | 600V AC | 2 3/4" | €315.37 | |
 |

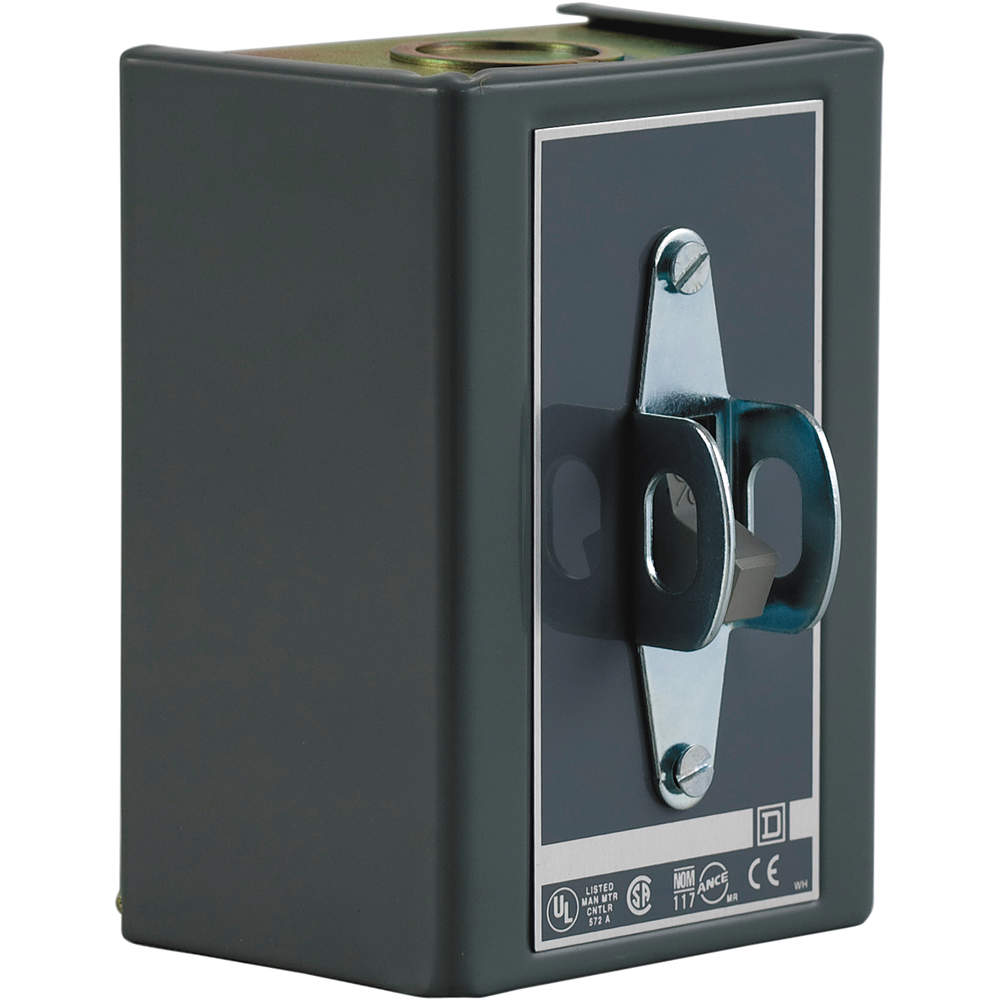

2510KGJ2 | 3 | 30A | Three | Surface | Painted Steel | 4 1/4" | 600V AC | 2 3/4" | €310.46 | |
 |
2510KO1 | 2 | 30A | Single | Surface | - | 4.13" | 600V AC | 2.34" | €107.45 | |
 |
2510KO2 | 3 | 30A | Three | Surface | - | 4.13" | 600V AC | 2.34" | €270.56 | |
 |
2510KS1 | 2 | 30A | Single | Flush | Stainless Steel | 4 1/2" | 600V AC | 2 1/2" | €70.54 | |
|
2510KS2 | 3 | 30A | Three | Flush | Stainless Steel | 4 1/2" | 600V AC | 2 1/2" | €283.44 |
