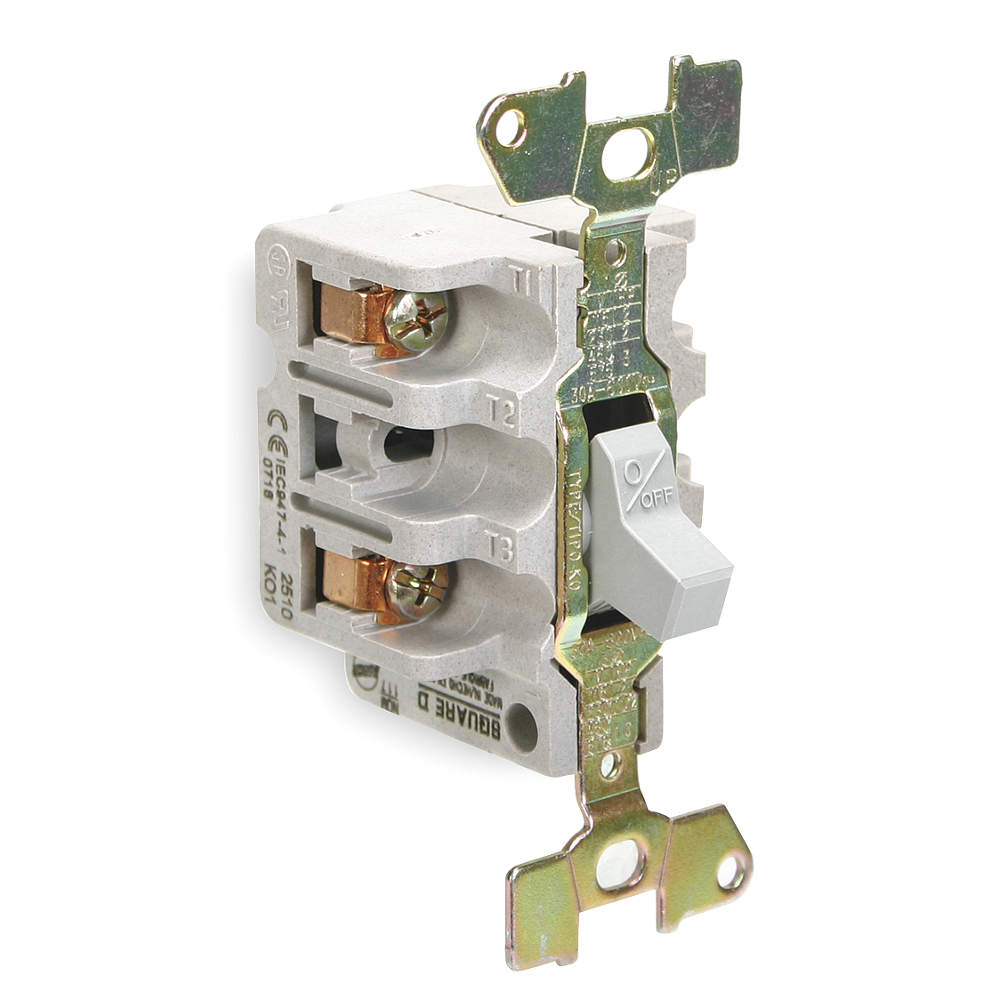

SQUARE D 2510KO1 Manual Motor Switch IEC 12 to 20A 600V
Item: AG9GCTModel: 2510KO1Cross Ref: 1H404
7 In Stock
Ships within 2 days via
5.00% off
€67.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Switch |
| Amps Rating | 30A |
| Control Unit | Toggle |
| Depth | 2.34" |
| Electrical Connection | Screw Clamp Terminal |
| Height | 4 3/25" , 4.13" |
| Horsepower @ Single Phase - 240v Ac | 2 hp |
| Horsepower @ Three Phase - 240v Ac | 2 hp |
| Horsepower @ Three Phase - 480v Ac | 3 hp |
| Horsepower @ Three Phase - 600v Ac | 3 hp |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 115v Dc | 2 hp |
| Hp @ 115vdc | 2 |
| Hp @ 230v Dc | 1 1/2 hp |
| Hp @ 230vdc | 1-1/2 |
| Hp @ 3 Phase - 460-575v | 3 |
| Hp @ 3 Phase - 575v | 3 hp |
| Hp Rating | 2 hp @ 115V AC, 2 hp @ 230V AC, 3 hp @ 460V AC, 3 hp @ 575V AC, 1 hp @ 90V DC, 2 hp @ 115V DC, 1 1/2 hp @ 230V DC |
| Max Current (ac) | 30A |
| Max. Voltage | 600V AC |
| Maximum Voltage Rating | 230V DC/600V AC |
| Mounting Style | Surface |
| Nema Enclosure Rating | No Enclosure |
| No. Of Poles | 2 |
| Number Of Gangs | 1 |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Operator | Toggle |
| Operator | Toggle Switch |
| Overall Depth | 2.34" |
| Overall Height | 4.13" |
| Overall Width | 1.69" |
| Phase | Single |
| Phase Loss Sensitivity | No |
| Pilot Light | No , No Indicator |
| Resistance Properties | Temperature Resistant |
| Returnability | Yes |
| Series | TYPE K Series, CLASS 2510 Series |
| Starter Style | NEMA |
| Starter Type | NEMA , Non Reversing |
| Type | K |
| Width | 1.69" |
| Wire Gauge | 14 AWG to 10 AWG |
| Wire Gauge Material | Copper |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 10.49 |
| Ship length (cm) | 5.94 |
| Ship width (cm) | 4.29 |
| Country of Origin | MX |
Product Details:
- Enclosure NEMA Rating : No Enclosure
- HP @ 3 Phase - 240V : 2
- Phase Loss Sensitivity : No
- Special Features: Open Motor Switch
Product Variants
| Product | Model | Number Of Poles | Amps Rating | Phase | Mounting Style | Enclosure Material | Height | Max. Voltage | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2510KG1 | 2 | 30A | Single | Surface | Painted Steel | 4 1/4" | 600V AC | 2 3/4" | €94.84 | |
 |

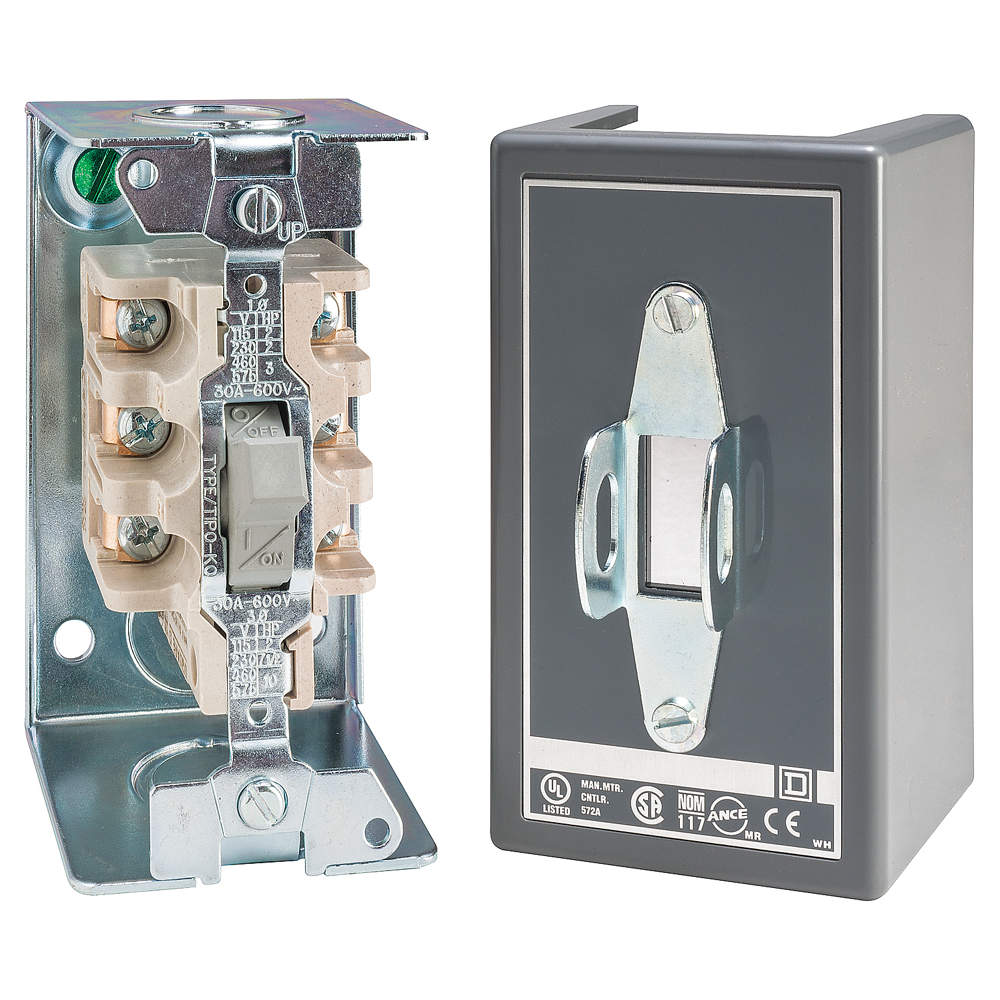

2510KG2 | 3 | 30A | Three | Surface | Painted Steel | 4 1/4" | 600V AC | 2 3/4" | €196.72 | |
 |

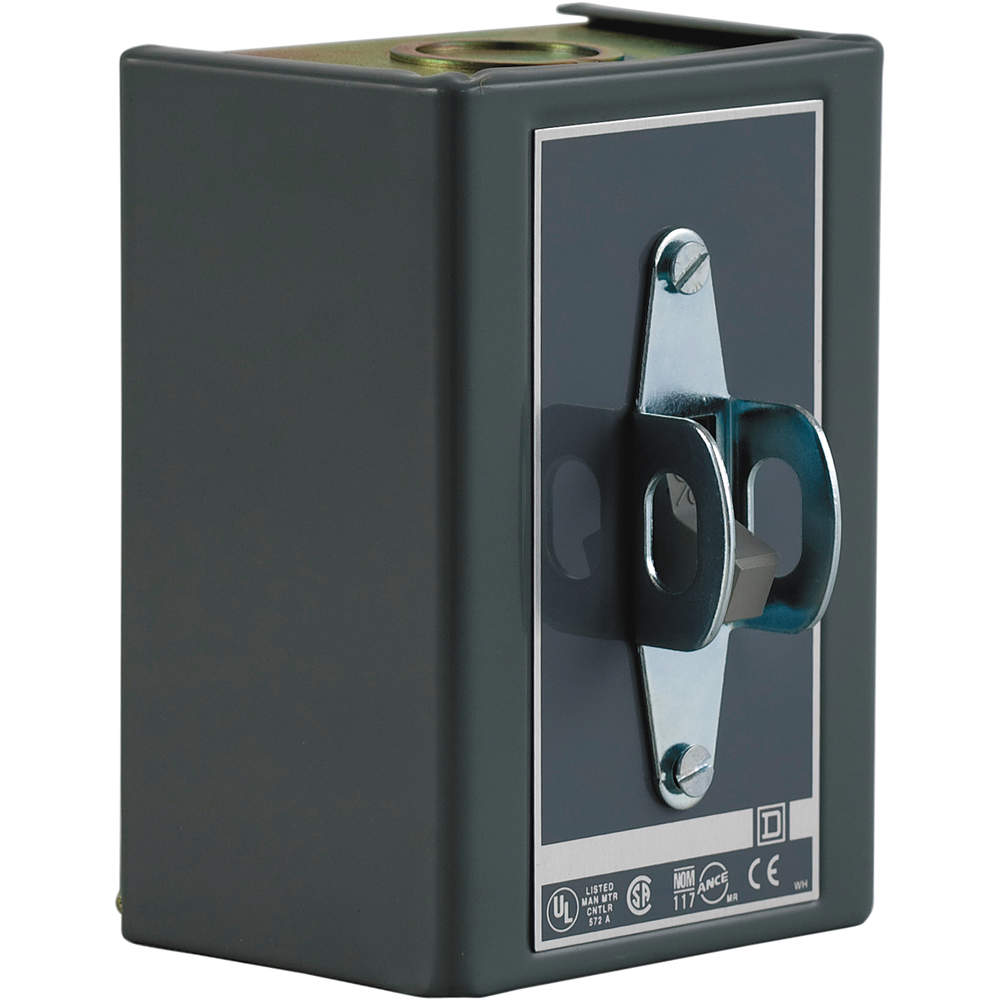

2510KGJ2 | 3 | 30A | Three | Surface | Painted Steel | 4 1/4" | 600V AC | 2 3/4" | €310.46 | |
 |
2510KO2 | 3 | 30A | Three | Surface | - | 4.13" | 600V AC | 2.34" | €215.62 | |
 |

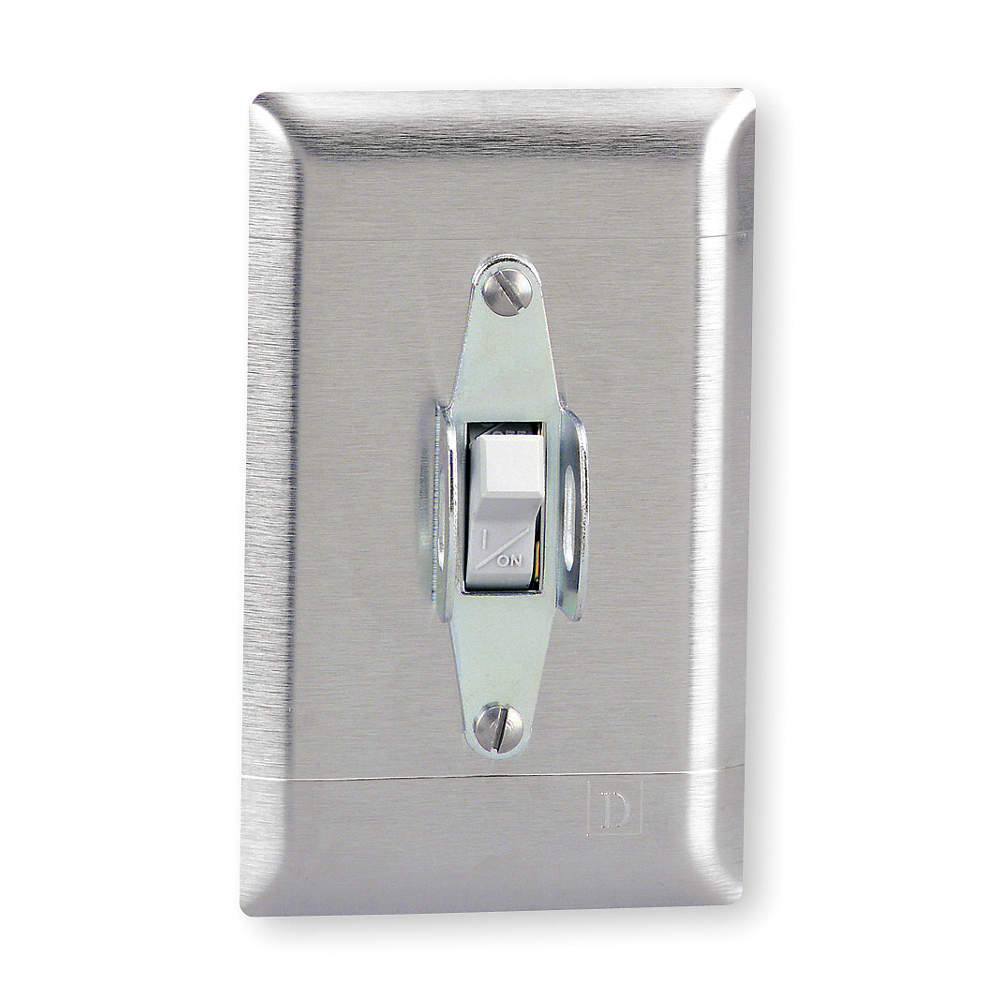

2510KS1 | 2 | 30A | Single | Flush | Stainless Steel | 4 1/2" | 600V AC | 2 1/2" | €71.17 | |
|
2510KS2 | 3 | 30A | Three | Flush | Stainless Steel | 4 1/2" | 600V AC | 2 1/2" | €157.30 | |
 |
2510KW1 | 2 | 20A | Single | Surface | Painted Steel | 4 1/4" | 600V AC | 4 1/4" | €646.91 |
