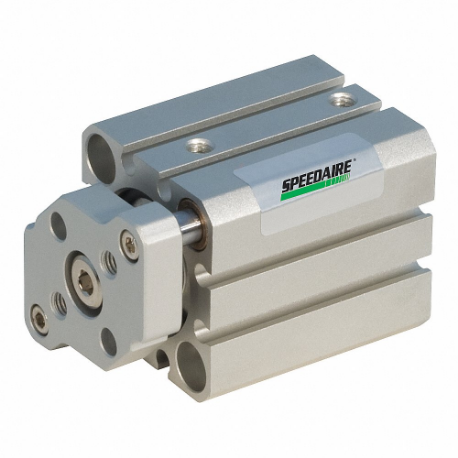

SPEEDAIRE CQMB50-75 Air Cylinder, 50 mm Bore Dia, 75 mm Stroke, 1/4 Inch Rc Port Size
Item: CU4BAGModel: CQMB50-75Cross Ref: 5VJR8
7 In Stock
Ships within 2 days via
10.00% off
€312.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Body Material | Aluminum |
| Bore Dia. | 50 mm |
| Cushion Type | Rubber Bumper |
| Cylinder Type | Compact |
| End Cap Material | Aluminum |
| Features | Extruded Guides, Non-Rotating, Rubber Bumpers |
| Finish | Hard Coat Anodized |
| Magnetic Piston | No |
| Max. Pressure | 145 psi |
| Mounting | Through Hole |
| Overall Length | 135.5 mm |
| Piston Material | Non Magnetic |
| Piston Rod Material | Carbon Steel |
| Piston Rod Material Finish | Chrome Plated |
| Port Type | RC |
| Single Acting/double Acting | Double Acting |
| Stroke | 75 mm |
| Temp. Range | +14°F to +140°F |
| Tie Rod Material | N |
| Tube Material | Aluminum |
| Type | Compact |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Color | Overall Height | Magnetic Piston | Single Acting/double Acting | Piston Rod Material | Temp. Range | Tube Material | Stroke | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3ATF9 | Silver | 2 9/16" | Non-Magnetic Piston | Single Acting | Stainless Steel | -40°F to +200°F | - | 2" | €113.30 | |
 |
5TEK3 | Silver | - | No | Double Acting | Stainless Steel | -20°F to +200°F | Stainless Steel | 7 1/2" | €1,518.45 | |
 |
5VAU6 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 7" | €741.07 | |
|
5VAU7 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 7 1/2" | €741.07 | |
|
5VAU8 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 8 1/2" | €741.07 | |
|
5VAU9 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 9" | €741.07 | |
|
5VAV0 | Black | - | No | Double Acting | Steel | -20°F to +200°F | Steel | 9 1/2" | €741.07 |
