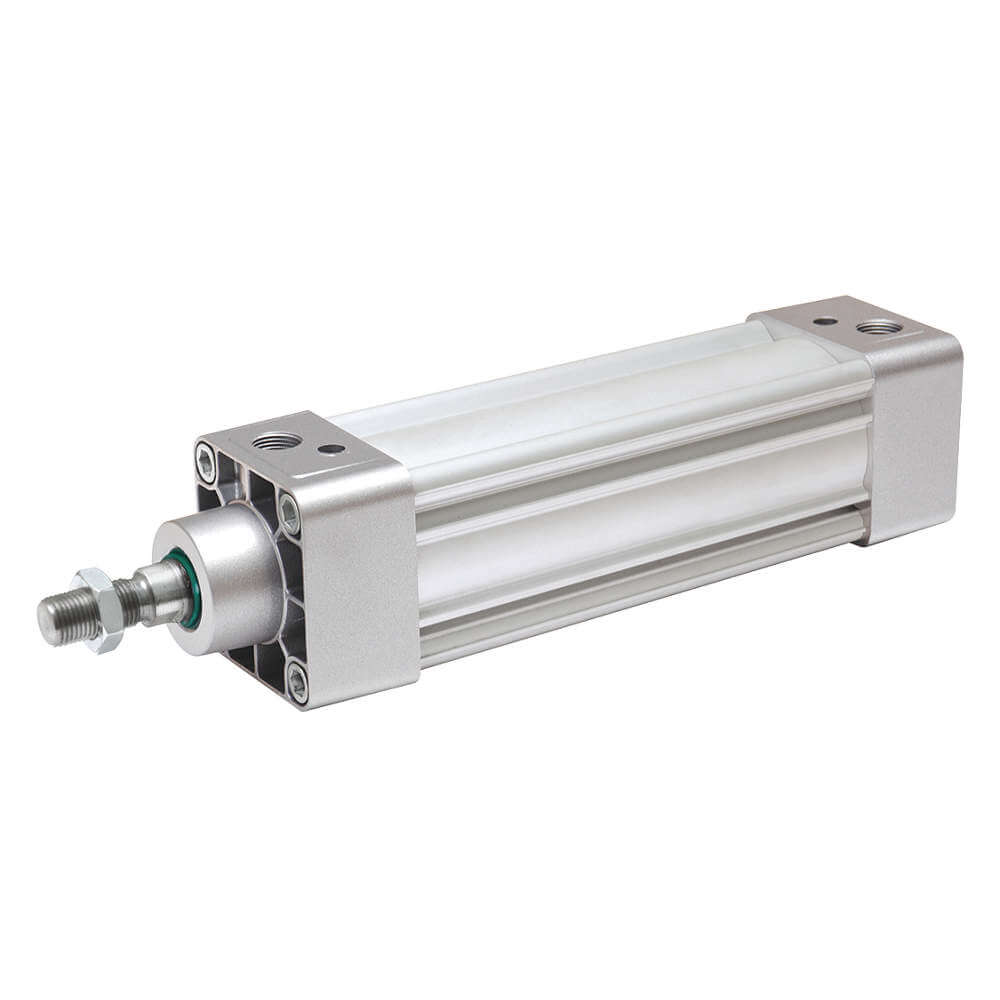

SPEEDAIRE 5VMC3 Air Cylinder 80mm Bore 100mm Stroke
Item: AE6WDQModel: 5VMC3
7 In Stock
Ships within 2 days via
10.00% off
€418.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Air Inlet Size | 3/8" |
| Air Inlet Type | BSPP |
| Body Material | Aluminum |
| Body Material Finish | Anodized |
| Bore Dia. | 80 mm |
| Cushion Type | Head And Cap |
| Cylinder Action | Double Acting |
| Cylinder Repair | Repairable |
| Cylinder Type | Extruded |
| End Cap Material | Aluminum |
| End Cap Material Finish | Anodized |
| Features | Magnetic Piston |
| For Fluid Type | Air |
| Magnetic Piston | Magnetic Piston |
| Max. Pressure | 145 psi |
| Maximum Operating Pressure | 145 psi |
| Maximum Operating Temperature | 176°F |
| Minimum Operating Temperature | -4°F |
| Mounting Style | No Mount |
| Overall Height | 314 mm |
| Overall Length | 314 mm |
| Piston Material | Thermoplastic |
| Piston Rod Finish | Chrome Plated |
| Piston Rod Material | Steel |
| Piston Rod Material Finish | Chrome Plated |
| Port Size | 3/8" |
| Rod Dia. | 25 mm |
| Rod Thread Length | 40 mm |
| Rod Thread Size | M20 x 1.5 |
| Single Acting/double Acting | Double Acting |
| Spring Retraction Force | Not Applicable |
| Stroke | 100 mm |
| Stroke Length | 100 mm |
| System Of Measurement | Metric |
| Tube Material | Anodized Aluminum |
| Type | Extruded |
Shipping Info:
| Ship weight (kg) | 3.31 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 10.16 |
| HS code | 8412310080 |
| Country of Origin | US |
Product Variants
| Product | Model | Stroke | Overall Length | Tube Material | Type | Cylinder Type | Bore Dia. | Body Material | Magnetic Piston | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5VMC5 | 200 mm | 414 mm | Stainless Steel | ISO Mini | Extruded | 80 mm | Aluminum | Magnetic Piston | €516.20 |
