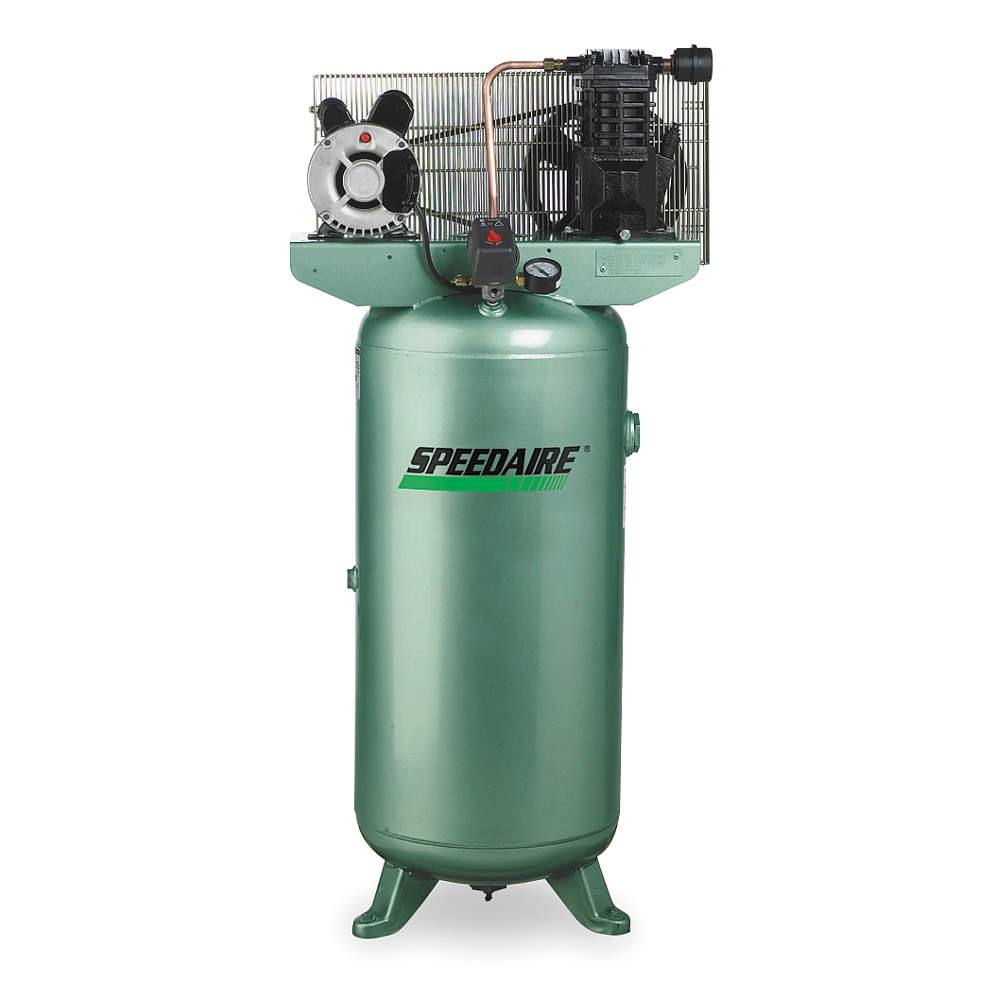

SPEEDAIRE 4B233 Air Compressor, 2 hp, 1 Stage, Vertical, 30 gal, 4.9 cfm, 135 psi, Base Model
Get it by Thursday, Jul 2
5.00% off
€1,315.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Air Compressor |
| (f)npt Outlet | 1/2" |
| Amps | 15/7.5A |
| Asme Tank | Yes |
| Compressor Type | Simplex , Tank Mounted |
| Compressor Type | Tank Mounted |
| Control Type | Pressure Switch |
| Cylinder Material | Cast Iron |
| Dba @ 3 Feet | 85 dBA |
| Dba @ 3 Feet | 85 |
| Duty Cycle | Intermittent |
| Enclosure Rating | NEMA 1 |
| Finish | Powder Coating |
| Free Air Cfm @ Max. Pressure | 4.9 CFM |
| Free Air Cfm @ Max. Pressure | 4.9 |
| Frequency | 60 Hz |
| Included | Manual Drain Valve, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve |
| Inlet Size | 1/2" |
| Input Voltage | 120/240V AC |
| Lubrication Type | Splash Lubricated |
| Lubrication Type | Pressure Lubricated |
| Max. Operating Pressure | 135 psi |
| Max. Pressure | 135 psi |
| Max. Speed | 875 RPM |
| Motor Type | Open Dripproof |
| No. Of Stages | 1 |
| Off Pressure Switch Setting | 135 psi |
| Off Pressure Switch Setting | 135 |
| On Pressure Switch Setting | 100 |
| On Pressure Switch Setting | 100 psi |
| Outlet Gender | Female |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Output Power | 2 hp |
| Overall Height | 52" |
| Overall Length | 26 1/4" |
| Overall Width | 19" |
| Phase | 1 |
| Pump Location | Top Mount |
| Pump Location-air Compressor | Tank Mounted |
| Pump Oil Capacity | 11.5 fl. oz. |
| Pump Oil Capacity | 11.5 oz. |
| Pump Rpm | 875 |
| Pump Speed | 875 RPM |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Sound Level | 85 dBA |
| Tank Size | 30 gal. |
| Tank Style | Vertical |
| Tank Style-air Compressor | Vertical |
| Tank Type | Vertical |
| Voltage | 115/230V |
Shipping Info:
| Ship weight (kg) | 83.25 |
| Ship height (cm) | 132.08 |
| Ship length (cm) | 66.68 |
| Ship width (cm) | 48.26 |
| HS code | 8414801685 |
| Country of Origin | US |
Product Details:
- ASME Tank (Yes)
Product Variants
| Model | Lubrication Type | Tank Style | Pump Style | Free Air Cfm @ Max. Pressure | Tank Size | Voltage | Phase | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

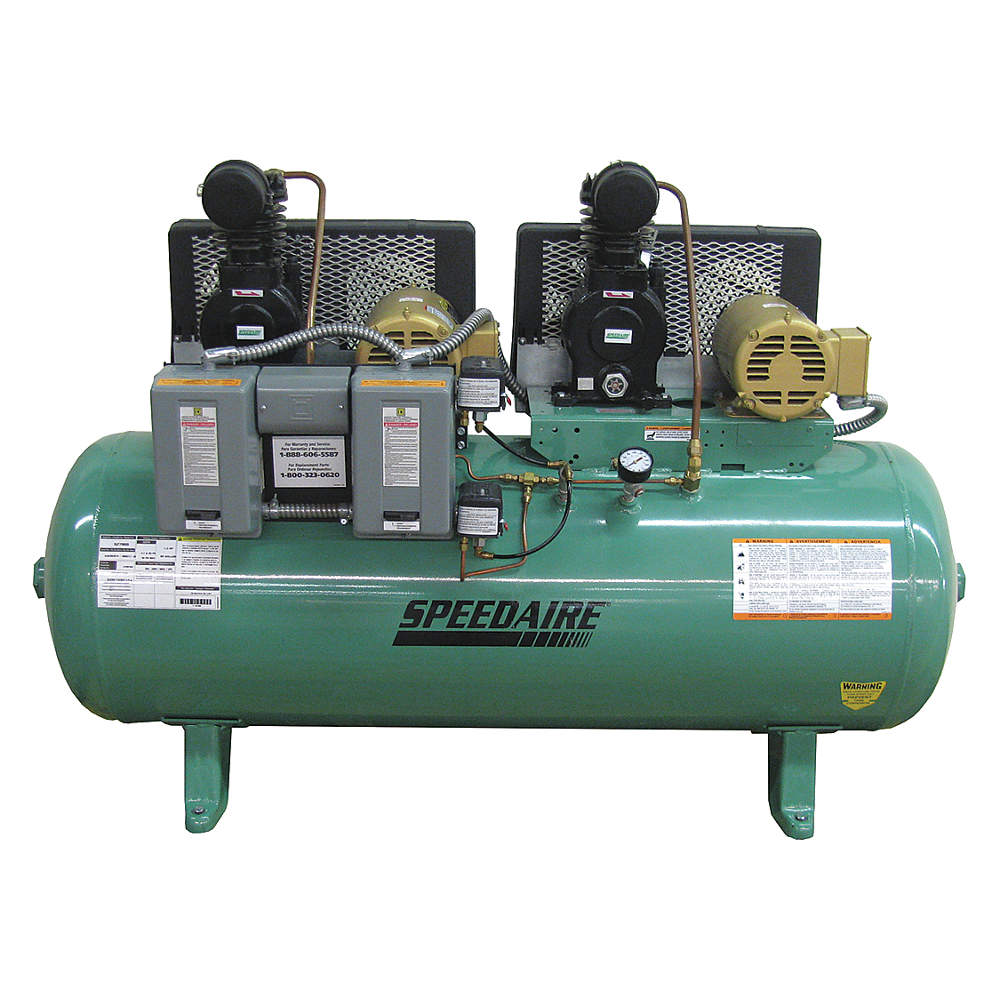

| 3JR81 | Pressure Lubricated | Horizontal | Duplex | 3.8 CFM | 30 gal. | 208-230/460V | 3 | - | €7,731.69 | |
| 4B237 | Splash Lubricated | Horizontal | Simplex | 9.1 CFM | 30 gal. | 200-230/460V | 3 | 135 psi | €2,034.31 | |
| 5Z698 | Pressure Lubricated | Horizontal | Duplex | 2.5 CFM | 30 gal. | 208-230/460V | 3 | 90 psi | €6,816.53 | |
| 5Z700 | Splash Lubricated | Horizontal | Duplex | 5.4 CFM | 80 gal. | 208-230/460V | 3 | - | €8,285.16 | |
| 5Z702 | Pressure Lubricated | Horizontal | Duplex | 12.2 CFM | 80 gal. | 208-230/460V | 3 | 90 psi | €10,372.86 |
