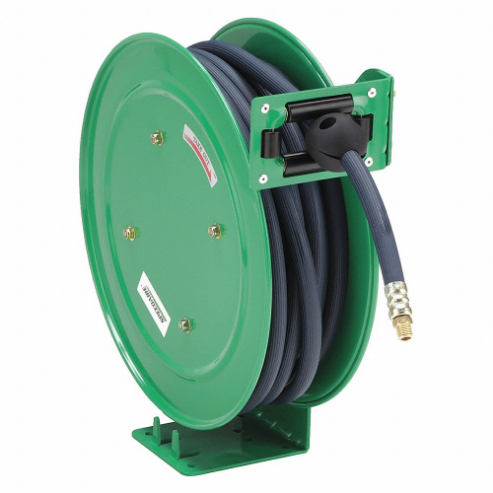

SPEEDAIRE 49AE04 Spring Return Hose Reel, 3/8 Inch, 50 Feet Hose, 300 Psi Max. Pressure
Get it by Wednesday, Dec 24
10.00% off
€339.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Bearing Type | Permanent Lubricated |
| Bearings | Permanently Lubricated |
| Corrosion Resistance | Yes |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Drive Type - Hose Reels | Spring Return |
| Duty Rating | Heavy Duty |
| Enclosed | No |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | Heavy Duty |
| Finish | Powder Coat |
| Finish - Hose Reels | Powder Coated |
| Fitting Gender | Male x Male |
| Fitting Size | 1/4" x 1/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 15 9/32" |
| Hose Capacity | 50 ft. |
| Hose Color | Dark Blue |
| Hose Cover Material | PVC |
| Hose End Configuration | 1/4" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 1/4" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 1/4" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Length | 50 ft. |
| Hose Material | PVC |
| Hose Outside Dia. | 11/16" |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Bench, Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Hose Tube Material | PVC |
| Housing Material | Steel |
| Includes | Hose |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch | Locking |
| Latch Type | Locking |
| Length | 13 25/32" |
| Max. Pressure | 300 psi |
| Max. Temp. | 150°F |
| Maximum Operating Pressure | 300 psi |
| Media | Air, Water |
| Minimum Operating Temperature | 21°F |
| Mount Base Height | 4 21/64" |
| Mount Base Width | 5 1/8" |
| Mount Hole Diameter | 3/8" |
| Mounting | Bench, Ceiling, Floor, Truck, Wall |
| Mounting Hole Center To Center Height | 3 5/32" |
| Mounting Hole Center To Center Width | 3 13/16" |
| Number Of Guide Arms | 1 |
| Number Of Mounting Holes | 6 |
| Overall Height | 15 9/32" |
| Overall Length | 13 25/32" |
| Overall Width | 6 13/16" |
| Pedestal Type | Single Pedestal |
| Reel Color | Green |
| Reel Diameter | 13 13/16" |
| Reel Material | Steel |
| Reel Width | 6 13/16" |
| Seal Material | Nitrile |
| Seal Type | Nitrile |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8" |
| Swivel Inlet Thread Size | 3/8"-18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/4" |
| Swivel Outlet Thread Size | 1/4"-18 |
| Swivel Outlet Type | NPT |
| Weight | 15.5 lbs. |
| Width | 6 13/16" |
Shipping Info:
| Ship weight (kg) | 11.04 |
| Ship height (cm) | 38.81 |
| Ship length (cm) | 35 |
| Ship width (cm) | 17.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Hose Capacity | Fitting Size | Overall Height | Overall Length | Overall Width | Hose Outside Dia. | Bearings | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
45UZ36 | 35 ft. | 1/4" x 1/4" | 13 57/64" | 12 19/32" | 6 39/64" | 1/2" | Permanently Lubricated | Permanent Lubricated | €261.62 | |
 |
45UZ32 | 25 ft. | 1/4" x 1/4" | 13 57/64" | 12 19/32" | 6 39/64" | 11/16" | Permanently Lubricated | Permanent Lubricated | €240.49 | |
 |
437J24 | 25 ft. | 1/4" x 1/4" | 12 39/64" | 11 13/16" | 5 39/64" | 1/2" | Greaseless | Greaseless | €191.48 | |
 |
437J25 | 25 ft. | 1/4" x 1/4" | 13 29/32" | 12 39/64" | 5 3/16" | 1/2" | Greaseless | Greaseless | €178.97 | |
 |
437J26 | 50 ft. | 1/4" x 1/4" | 13 29/32" | 12 39/64" | 5 3/16" | 1/2" | Greaseless | Greaseless | €237.74 | |
 |
437J28 | 35 ft. | 1/2" x 1/2" | 15 9/32" | 13 25/32" | 6 13/16" | 13/16" | Greaseless | Greaseless | €270.50 | |
 |
49AE05 | 35 ft. | 3/8" x 3/8" | 15 9/32" | 13 25/32" | 6 13/16" | 13/16" | Permanently Lubricated | Permanent Lubricated | €342.28 |
