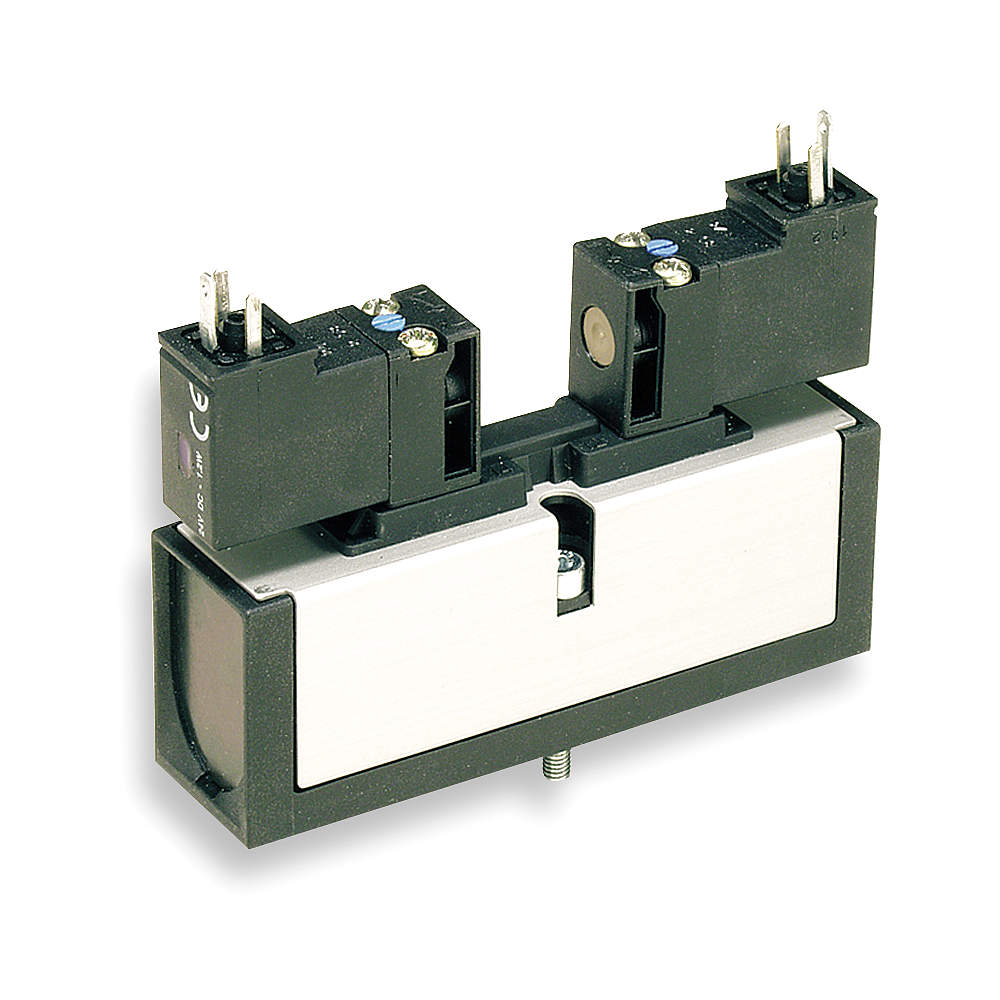

SPEEDAIRE 3FFW2 Solenoid Air Control Valve, 0.75 cfm, DIN Solenoid, 1/4 in NPT Inlet, 120VAC, Closed
Item: AC9BFXModel: 3FFW2
7 In Stock
Ships within 2 days via
5.00% off
€580.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Double Solenoid |
| Ambient Temp. | +14°F to +145°F |
| Body Material | Glass Filled Nylon |
| Body Style | Base Mounted |
| Center Position | Closed |
| Coefficient Of Volume | 0.5 |
| Electrical Connection Type | Din Solenoid Connector |
| For Media | Air |
| Included Solenoid Coil | Yes |
| Inlet Connection Size | 1/4" |
| Inlet Connection Type | NPT |
| Inlet Port Connection Size | 1/4" |
| Inlet Port Connection Type | NPT |
| Iso Class | Class 15407-1 |
| Max. Flow Rate | 0.75 CFM |
| Max. Operating Pressure | 145 psi |
| Max. Operating Temp. | 140°F |
| Min. Operating Pressure | 45 psi |
| Min. Operating Temp. | 14°F |
| Nema Class | NEMA 4 |
| Nema Rating | 4 |
| No. Of Positions | 3 |
| No. Of Ways | 4 |
| Operating Pressure | 45 psi to 145 psi |
| Operating Temp. | 14°F to 140°F |
| Operational Pressure | 45 psi to 145 psi |
| Overall Height | 1 9/32" |
| Overall Length | 4 1/16" |
| Overall Width | 23/32" |
| Override | Non Locking |
| Override | Non-Locking |
| Pilot Port Connection Size | 1/4" |
| Pilot Port Connection Type | NPT |
| Pilot Port Size | 1/4" NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/4" |
| Power Consumption | 1.6 W |
| Product Type | Solenoid Air Control Valve |
| Return Action | Solenoid Return |
| Seal Material | Nitrile |
| Series | ISOMAX Series |
| Shifting Technology | Ceramic Plate |
| Vacuum | 145 psig , Vacuum Operable |
| Vacuum Range | 145 psig |
| Voltage | 120V AC |
| Ways & Positions | Four-Way, Three-Position |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 11.68 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 4.83 |
| HS code | 8481200060 |
| Country of Origin | FR |
Product Variants
| Product | Model | Iso Class | Coefficient Of Volume | Overall Length | Overall Width | Overall Height | Voltage | Center Position | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3FFD5 | Class 15407-2 | 0.5 | 4 27/32" | 23/32" | 1 1/2" | 120V AC | Closed | - | €431.44 | |
 |
3FFD6 | Class 15407-2 | 0.5 | 4 27/32" | 23/32" | 1 1/2" | 24V DC | Closed | - | €414.34 | |
 |
3FFD7 | Class 15407-2 | 1 | 5 15/32" | 1 1/32" | 1 1/2" | 120V AC | Closed | - | €460.78 | |
|
3FFD8 | Class 15407-2 | 1 | 5 15/32" | 1 1/32" | - | 24V DC | Closed | - | €450.82 | |
|
3FFD9 | Class 15407-2 | 0.5 | 4 27/32" | 23/32" | 1 1/2" | 120V AC | Open | - | €431.44 | |
|
3FFE1 | Class 15407-2 | 0.5 | 4 27/32" | 23/32" | 1 1/2" | 24V DC | Open | - | €421.02 | |
|
3FFE2 | Class 15407-2 | 1 | 5 15/32" | 1 1/32" | - | 120V AC | Open | - | €468.64 |
