SPEEDAIRE 3FFT2 Solenoid Air Control Valve 120vac
Item: AC9BEZModel: 3FFT2
7 In Stock
Ships within 2 days via
10.00% off
€403.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring Air Assist |
| Ambient Temp. Range | +5°F to +120°F |
| Body Features | Single |
| Body Material | Aluminum |
| Body Style | Base Mounted |
| Coefficient Of Volume | 1.5 |
| Electrical Connection | Plug In |
| Electrical Connection Type | Plug In |
| For Media | Air |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Type | NPT |
| Iso Class | Class 5599-2 |
| Maximum Flow Rate | 37.5 CFM |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure | 20 psi to 145 psi |
| Operating Pressure - Maximum | 145 psi |
| Operating Pressure - Minimum | 20 psi |
| Operating Temperature | 5°F to 120°F |
| Operating Temperature - Maximum | 120°F |
| Operating Temperature - Minimum | 5°F |
| Operational Pressure Range | 35 psi to 145 psi |
| Overall Height | 7 5/32" |
| Overall Length | 7 5/16" |
| Overall Width | 1 1/2" |
| Override | Non-Locking Flush |
| Override | Non-Locking |
| Pilot Port Connection Type | NPT |
| Pilot Pressure | 25 psi |
| Pilot Type | Internal Pilot |
| Poppet Material | Aluminum |
| Power Consumption | 4.5 W |
| Pressure | 25 psi |
| Pressure Rating | 25 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 28 ms |
| Return Action | Spring Return |
| Series | ISO Series |
| Shifting Technology | Packed Spool |
| Spool Material | Aluminum |
| Vacuum Range | 145 psig |
| Vacuum Rating | Not Vacuum Operable |
| Valve Type | Spool |
| Voltage | 120V AC |
| Ways & Positions | Four-Way, Two-Position |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 3.81 |
| HS code | 8481200060 |
| Country of Origin | US |
Product Variants
| Product | Model | Coefficient Of Volume | Iso Class | Voltage | Body Style | Overall Length | Overall Width | Overall Height | Operational Pressure Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3FFD2 | 0.55 | Class 15407-2 | 24V DC | Base Mounted | 4 27/32" | 23/32" | 1 1/2" | 30 psi to 145 psi | €390.68 | |
 |
3FFD3 | 1.1 | Class 15407-2 | 120V AC | Base Mounted | 5 15/32" | 1 1/32" | - | 25 psi to 145 psi | €435.56 | |
 |

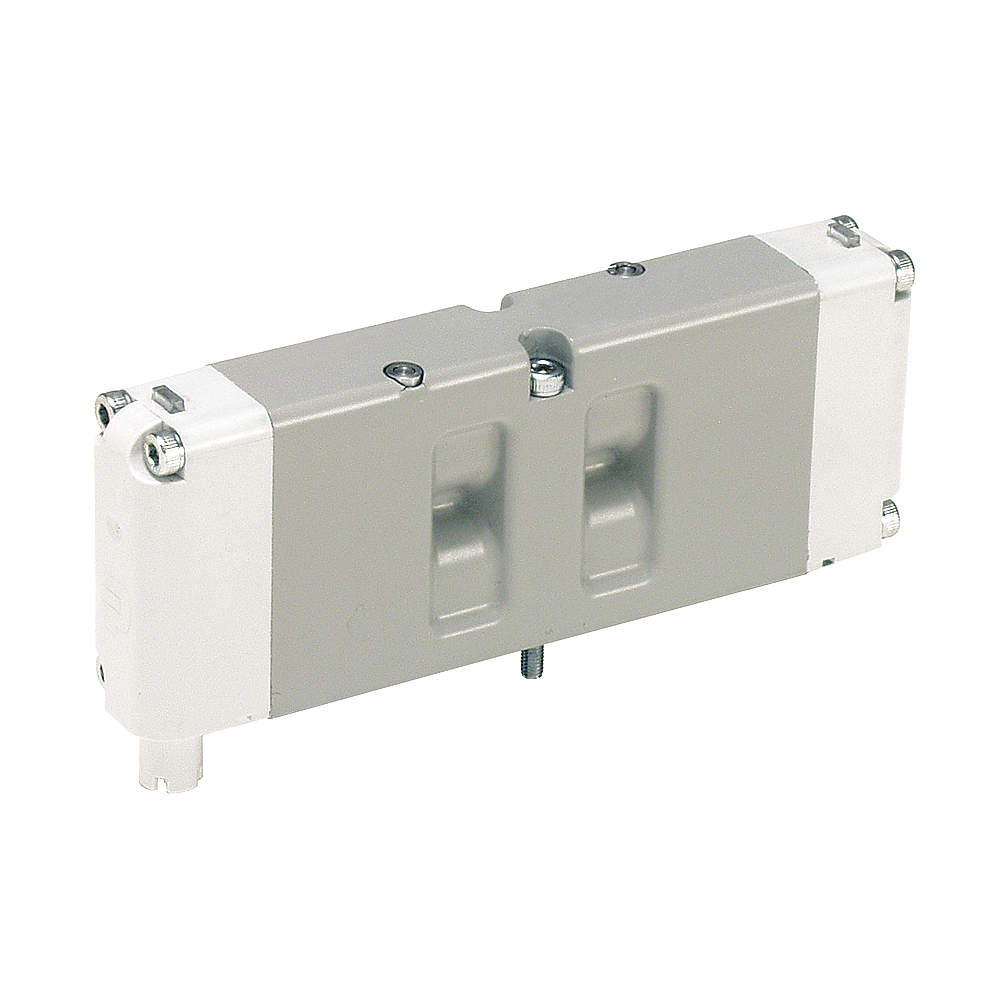

3FFD4 | 1.1 | Class 15407-2 | 24V DC | Base Mounted | 5 15/32" | 1 1/32" | - | 25 psi to 145 psi | €415.93 | |
|
3FFE8 | 0.55 | Class 15407-2 | 120V AC | Base Mounted | 4 27/32" | 23/32" | 1 1/2" | 30 psi to 145 psi | €280.17 | |
 |

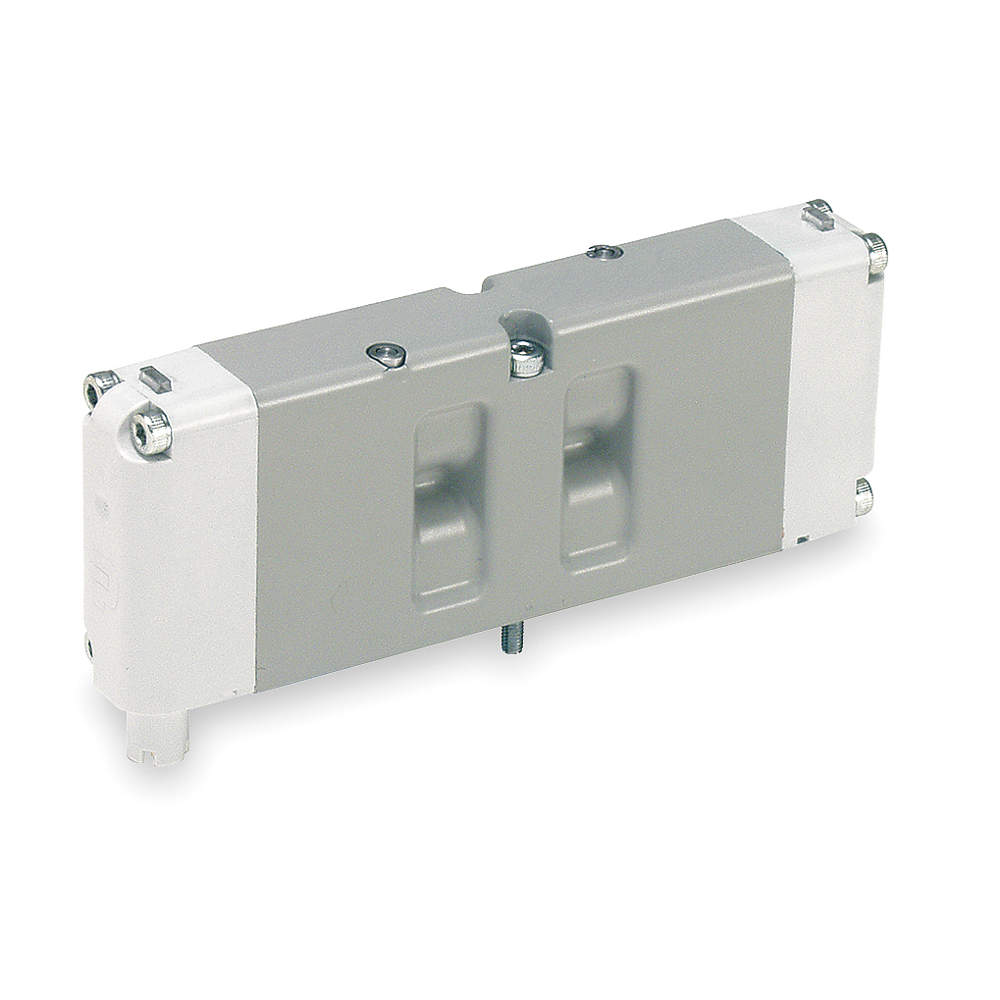

3FFE9 | 0.55 | Class 15407-2 | 24V DC | Base Mounted | 4 27/32" | 23/32" | 1 1/2" | 30 psi to 145 psi | €274.75 | |
 |
3FFF1 | 1.1 | Class 15407-2 | 120V AC | Base Mounted | 5 15/32" | 1 1/32" | 1 1/2" | 25 psi to 145 psi | €291.91 | |
|
3FFF2 | 1.1 | Class 15407-2 | 24V DC | Base Mounted | 5 15/32" | 1 1/32" | 1 1/2" | 25 psi to 145 psi | €281.94 |
