SPEEDAIRE 38XR70 Auto Drain Valve 230V 1.2 gpm
Item: AH8QGMModel: 38XR70
7 In Stock
Ships within 2 days via
10.00% off
€271.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electric Auto Drain Valve |
| Adjustable Drain Cycle | 0.5 sec. to 45 min. |
| Amps Ac | 1A |
| Body Material | Brass |
| Drain Rate | 1.2 GPM |
| Drain Size | 1/8" |
| Enclosure | IP65 |
| Flow Rate | 1.2 GPM |
| Frequency | 50/60 Hz |
| Includes | 6 ft. Power Cord, Unibody Strainer With Ball Valve |
| Max. Pressure | 300 psi |
| Maximum Voltage | 230V |
| Operating Temp. Range | 35°F to 95°F |
| Overall Depth | 5" |
| Overall Height | 5" |
| Overall Width | 5" |
| Pipe Thread Type | 1/2" , NPT |
| Purge Time | 0.5 sec. to 10 sec. |
| Voltage | 230V |
Shipping Info:
| Ship weight (kg) | 0.83 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | IE |
Product Variants
| Product | Model | Adjustable Drain Cycle | Purge Time | Voltage | Max. Pressure | Operating Temp. Range | Overall Width | Overall Depth | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
12F742 | 0.5 sec. to 45 min. | 0.5 sec. to 10 sec. | 230V | 725 psi | 40°F to 176°F | 3 1/2" | 3 5/16" | 4 1/2" | €395.71 | |
 |

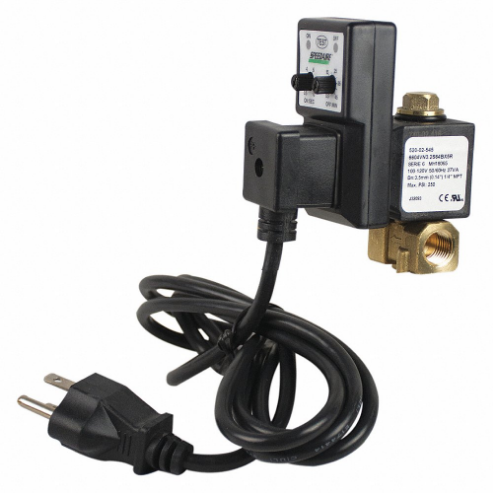

13X522 | 0.5 sec. to 45 min. | 0.5 sec. to 10 sec. | 100-120V | 250 psi | 14°F to 140°F | 1 11/16" | 2 15/16" | 3 5/16" | €172.57 | |
 |

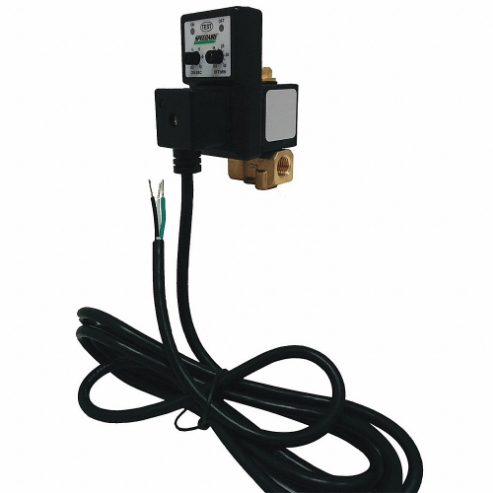

13X523 | 0.5 sec. to 45 min. | 0.5 sec. to 10 sec. | 208-240V AC | 250 psi | 14°F to 140°F | 1 11/16" | 2 15/16" | 3 5/16" | €171.61 | |
|
13X524 | 0.5 sec. to 45 min. | 0.5 sec. to 10 sec. | 100-120V | 250 psi | +14°F to +140°F | 1.703" | 3.203" | 3.812" | €178.51 | |
|
13X525 | 0.5 sec. to 45 min. | 0.5 sec. to 10 sec. | 208-240V AC | 250 psi | 14°F to 140°F | 1 11/16" | 3 3/16" | 3 13/16" | €170.98 | |
|
13X526 | 0.5 sec. to 45 min. | 0.5 sec. to 10 sec. | 100-120V | 250 psi | 14°F to 140°F | 1 11/16" | 3 3/16" | 4" | €179.48 | |
|
13X527 | 0.5 sec. to 45 min. | 0.5 sec. to 10 sec. | 208-240V AC | 250 psi | 14°F to 140°F | 1 11/16" | 3 3/16" | 4" | €184.04 |
