SPEEDAIRE 35WC84 Electric Air Compressor 2 Stage 5HP 16.6CFM
Get it by Tuesday, Sep 1
5.00% off
€4,628.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Air Compressor |
| (f)npt Outlet | 3/4" |
| Amps | 21.1A , 22A |
| Asme Tank | Yes |
| Compressor Type | Simplex , Tank Mounted |
| Control Type | Pressure Switch |
| Cylinder Material | Cast Iron |
| Dba @ 3 Feet | 83 dBA |
| Dba @ 3 Feet | 83 |
| Duty Cycle | Continuous |
| Enclosure Rating | Open Dripproof |
| Enclosure Type | Totally Enclosed |
| Finish | Powder Coating |
| Fnpt Outlet Size | 3/4" |
| Free Air Cfm @ Max. Pressure | 16.6 |
| Free Air Cfm @ Max. Pressure | 16.6 CFM |
| Free Air Flow Rate @ Max. Pressure | 16.4 CFM |
| Frequency | 60 Hz |
| Included | Manual Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve |
| Inlet Size | 3/4" |
| Input Voltage | 208-240V AC |
| Life Expectancy | 15000 hrs. |
| Lubrication Type | Splash Lubricated |
| Max. Operating Pressure | 175 psi |
| Max. Speed | 700 RPM |
| Motor Type | Open Dripproof |
| No. Of Stages | 2 |
| Off Pressure Switch Setting | 175 |
| Off Pressure Switch Setting | 175 psi |
| On Pressure Switch Setting | 145 psi |
| On Pressure Switch Setting | 145 |
| Outlet Gender | Female |
| Outlet Size | 3/4" |
| Outlet Type | NPT |
| Output Power | 5 hp |
| Overall Height | 46" |
| Overall Length | 63" |
| Overall Width | 21" |
| Phase | 1 |
| Pump Location | Top Mount |
| Pump Location-air Compressor | Tank Mounted |
| Pump Mount | Tank Mounted |
| Pump Mount | Tank Mount |
| Pump Oil Capacity | 2 qt. |
| Pump Oil Capacity | 2 qt |
| Pump Rpm | 700 |
| Pump Speed | 700 RPM |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Sound Level | 83 dBA |
| Tank Size | 80 gal. |
| Tank Style | Horizontal |
| Tank Style-air Compressor | Horizontal |
| Tank Type | Horizontal |
Shipping Info:
| Ship weight (kg) | 229.5 |
| Ship height (cm) | 116.84 |
| Ship length (cm) | 160.02 |
| Ship width (cm) | 53.34 |
| Country of Origin | US |
Product Details:
- Number of Stages - Air Compressor : 2
- Compressor Package Type : Base Model
- ASME Tank : Yes
Product Variants
| Product | Model | Phase | Overall Height | Overall Width | Amps | Pump Oil Capacity | Free Air Cfm @ Max. Pressure | Tank Size | Input Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35WC40 | 1 | 71" | 27" | 21.1A | 2 qt | 16.6 CFM | 80 gal. | 208-230V AC | €4,680.90 | |
 |

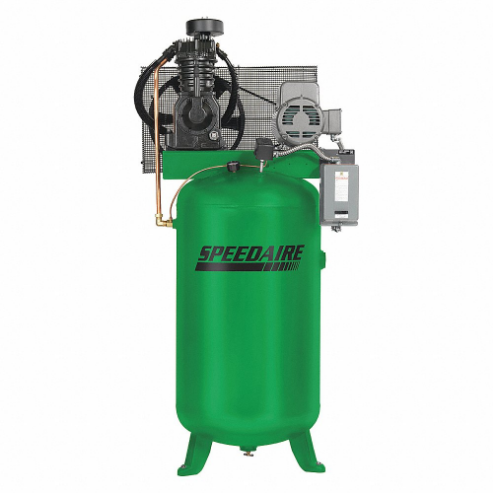

35WC42 | 3 | 71" | 27" | 14.2-12.8/6.4A | 2 qt | 16.6 CFM | 80 gal. | 208-230/460V AC | €3,881.79 | |
 |
35WC43 | 1 | 71" | 27" | 21.1A | 2 qt | 16.6 CFM | 80 gal. | 208-230V AC | €4,952.89 | |
 |
35WC45 | 3 | 71" | 27" | 14.2-12.8/6.4A | 2 qt | 16.6 CFM | 80 gal. | 208-230/460V AC | €5,118.80 | |
 |
35WC47 | 1 | 71" | 27" | 31A | 2 qt | 24.3 CFM | 80 gal. | - | €4,797.82 | |
 |
35WC48 | 3 | 71" | 27" | 17.8-19.8/9.9a | 2 qt | 24.3 CFM | 80 gal. | 208-230/460V AC | €4,255.72 | |
 |
35WC50 | 1 | 71" | 27" | 31A | 2 qt | 24.3 CFM | 80 gal. | 208-230V AC | €5,400.77 |
