SPEEDAIRE 35WC63 Electric Air Compressor Duplex 7.5hp 49cfm
Get it by Tuesday, Dec 23
10.00% off
€10,701.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Air Compressor |
| (f)npt Outlet | 3/4" |
| Asme Tank | Yes |
| Compressor Type | Tank Mounted Duplex |
| Compressor Type | Duplex , Tank Mounted Duplex |
| Control Type | Pressure Switch |
| Current Rating | 18/35.8-39.6a |
| Cylinder Material | Cast Iron |
| Dba @ 3 Feet | 85 |
| Dba @ 3 Feet | 85 dBA |
| Duty Cycle | Continuous |
| Enclosure Rating | Open Dripproof |
| Enclosure Type | Open Dripproof |
| Finish | Powder Coated |
| Fnpt Outlet Size | 3/4" |
| Free Air Cfm @ Max. Pressure | 49 CFM |
| Free Air Cfm @ Max. Pressure | 49 |
| Free Air Flow Rate @ Maximum Pressure | 50.2 CFM |
| Frequency | 60 Hz |
| Hp | 7 1/2 hp |
| Includes | Manual Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve, Tri-Voltage Motor |
| Inlet Size | 3/4" |
| Input Voltage | 208-230/460V AC |
| Lubrication Type | Splash Lubricated |
| Max. Pressure | 175 psi |
| Maximum Operating Pressure | 175 psi |
| Maximum Speed | 1020 RPM |
| Motor Type | Open Dripproof |
| Number Of Stages | 2 |
| Off Pressure Switch Setting | 175 |
| Off Pressure Switch Setting | 175 psi |
| On Pressure Switch Setting | 145 |
| On Pressure Switch Setting | 135 psi |
| Outlet Gender | Female |
| Outlet Size | 3/4" |
| Outlet Type | NPT |
| Output Power | 7 1/2 hp |
| Overall Height | 51" |
| Overall Length | 69" |
| Overall Width | 32" |
| Package Type | Base Model |
| Phase | 3 |
| Phase - Electrical | 3 |
| Pump Location | Top Mount |
| Pump Location - Air Compressor | Tank Mounted |
| Pump Oil Capacity | 2 qt. |
| Pump Oil Capacity | 2 qt |
| Pump Rpm | 1020 RPM |
| Pump Rpm | 1020 |
| Pump Style | Duplex |
| Pump Type | Reciprocating |
| Sound Level | 85 dBA |
| Tank Size | 120 gal. |
| Tank Style | Horizontal |
| Tank Style - Air Compressor | Horizontal |
| Tank Type | Horizontal |
| Voltage | 208-230/460V |
Shipping Info:
| Ship weight (kg) | 391.5 |
| Ship height (cm) | 167.89 |
| Ship length (cm) | 240.03 |
| Ship width (cm) | 102.11 |
| HS code | 8414801635 |
| Country of Origin | US |
Product Details:
- ASME Tank (Yes)
- Compressor Package Type (Base Model)
Product Variants
| Product | Model | Free Air Cfm @ Max. Pressure | Tank Size | Phase | Sound Level | Overall Length | Pump Oil Capacity | Pump Rpm | Compressor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35WC60 | 32.8 CFM | 120 gal. | 1 | 83 dBA | 69" | 2 qt | 700 RPM | Tank Mounted Duplex | €10,539.98 | |
 |

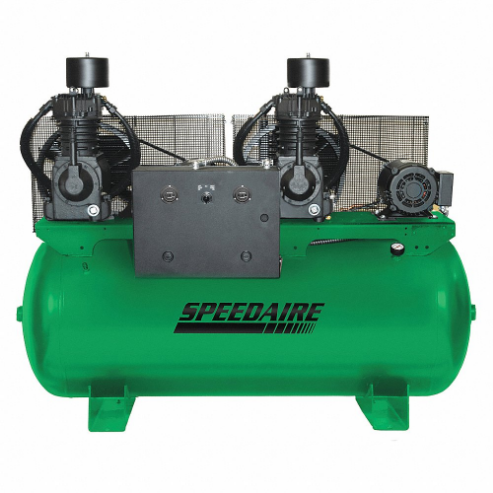

35WC62 | 49 CFM | 120 gal. | 1 | 85 dBA | 69" | 2 qt | 1020 RPM | Tank Mounted Duplex | €11,754.47 | |
 |

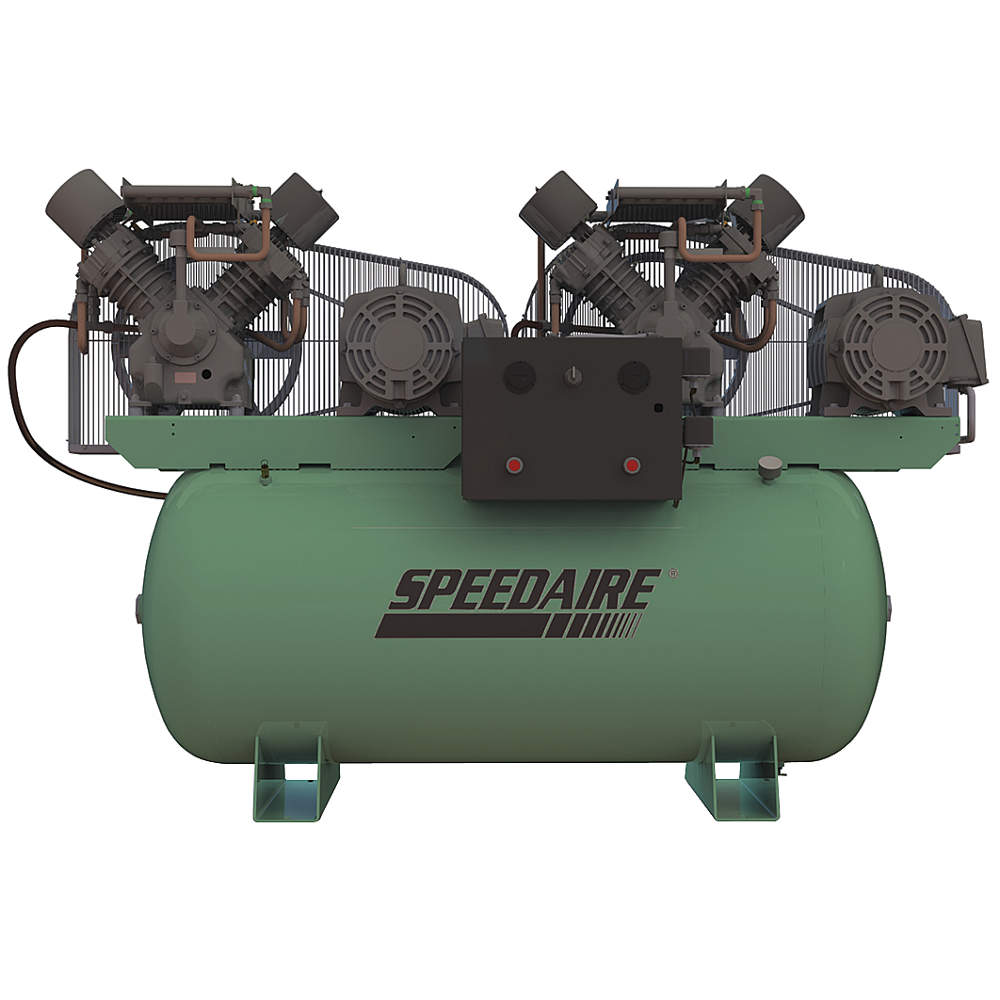

35WC64 | 72 CFM | 200 gal. | 3 | 89 dBA | 91" | 4 qt | 700 RPM | Tank Mounted Duplex | €15,181.96 | |
|
35WC65 | 100 CFM | 200 gal. | 3 | - | 91" | 4 qt | 1020 RPM | Tank Mounted Duplex | €21,520.23 |
