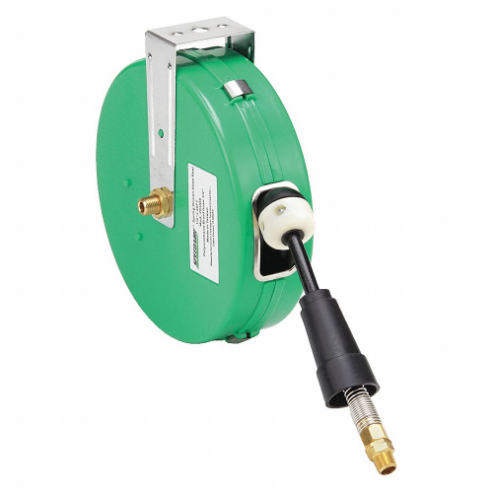

SPEEDAIRE 2CUD6 Hose Reel 1/4 Inch 20 Feet 200 Psi
Get it by Wednesday, Jul 1
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€92.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Swivel |
| Bearing Construction | Ball |
| Bearings | Permanently Lubricated |
| Corrosion Resistance | No |
| Corrosion Resistant | No |
| Drive Type | Spring Return |
| Drive Type (hose Reels) | Spring Return |
| Enclosed | Yes |
| Enclosed Reel | Yes |
| Fasteners Included | Yes |
| Finish | Coat |
| Finish (hose Reels) | Painted |
| Fitting Gender | Male x Male |
| Fitting Size | 1/4" x 1/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 7 7/8" |
| Hose Capacity | 20 ft. |
| Hose Color | Black |
| Hose Cover Material | Polyurethane |
| Hose End Configuration | 1/4" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 1/4" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Size | 1/4" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 1/4" |
| Hose Length | 20 ft. |
| Hose Material | Polyurethane With Braided Reinforcement |
| Hose Outlet (in.) | 1/4" (M)NPT |
| Hose Outside Dia. | 3/8" |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Tube Material | Polyurethane |
| Housing Material | Polypropylene |
| Included | Hose |
| Included Hose Stop | Yes |
| Included Leader Hose | No |
| Latch Type | Locking |
| Length | 8 5/8" |
| Max. Operating Pressure | 200 psi |
| Max. Pressure | 200 psi |
| Max. Temp. | 165°F |
| Media | Air, Water |
| Min. Operating Temp. | -40°F |
| Mounting | Floor, Wall |
| Overall Height | 7 7/8" |
| Overall Width | 2 3/8" |
| Reel Color | Green |
| Reel Dia. | 5 1/8" |
| Reel Material | Plastic |
| Reel Width | 3 27/64" |
| Spiral Hose Guard | Yes |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/4" |
| Swivel Inlet Thread Size | 1/4" |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/4" |
| Swivel Outlet Thread Size | 1/4" |
| Swivel Outlet Type | NPT |
| Width | 2 3/8" |
Shipping Info:
| Ship weight (kg) | 1.98 |
| Ship height (cm) | 20 |
| Ship length (cm) | 21.91 |
| Ship width (cm) | 6.03 |
| HS code | 8479899899 |
| Country of Origin | US |
Product Variants
| Product | Model | Hose Capacity | Max. Operating Pressure | Hose Included | Swivel Material | Reel Color | Reel Material | Fitting Size | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

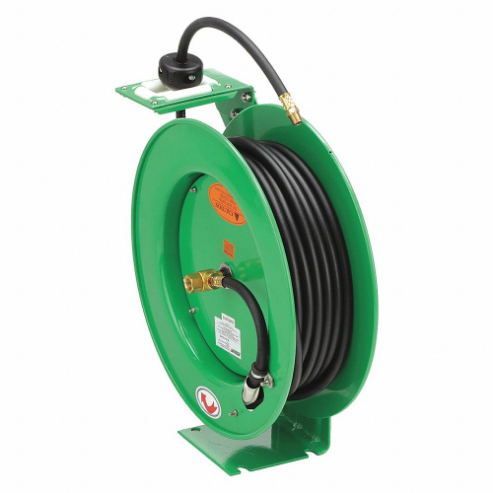

2CUA3 | 50 ft. | 300 psi | Yes | Brass | Green | Steel | 1/4" x 1/4" | 17" | €287.19 | |
 |

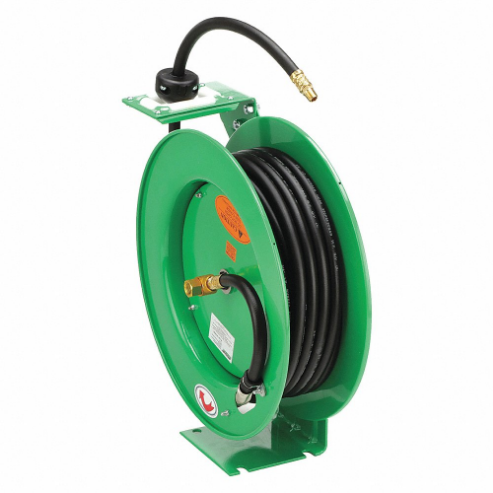

2CUA5 | 33 ft. | 300 psi | Yes | Brass | Green | Steel | 3/8" x 1/4" | 17" | €149.43 | |
 |

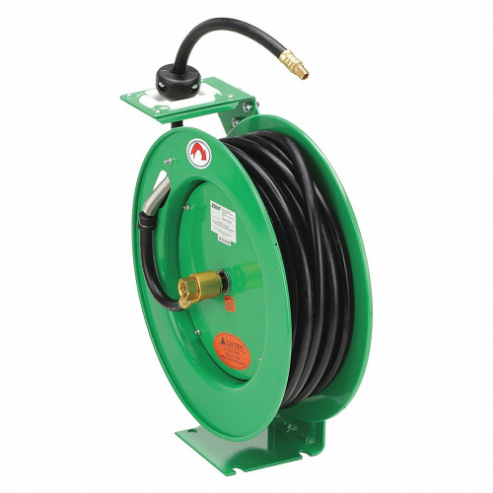

2CUA7 | 50 ft. | 300 psi | Yes | Brass | Green | Steel | 3/8" x 1/4" | 17" | €274.64 | |
 |

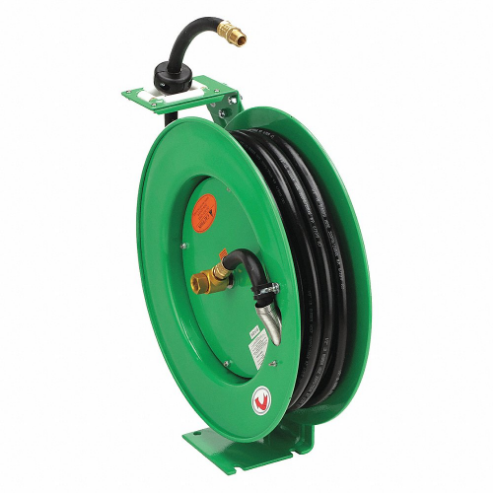

2CUA9 | 50 ft. | 300 psi | Yes | Brass | Green | Steel | 1/2" x 1/2" | 22 1/2" | €439.21 | |
 |
2CUB6 | 100 ft. | 300 psi | Yes | Brass | Green | Steel | 3/8" x 3/8" | 27" | €853.00 | |
|
2CUB8 | 75 ft. | 300 psi | Yes | Brass | Green | Steel | 1/2" x 3/4" | 27" | €691.99 | |
|
2CUC1 | 75 ft. | 300 psi | Yes | Brass | Green | Steel | 3/4" x 3/4" | 27" | €888.21 |
