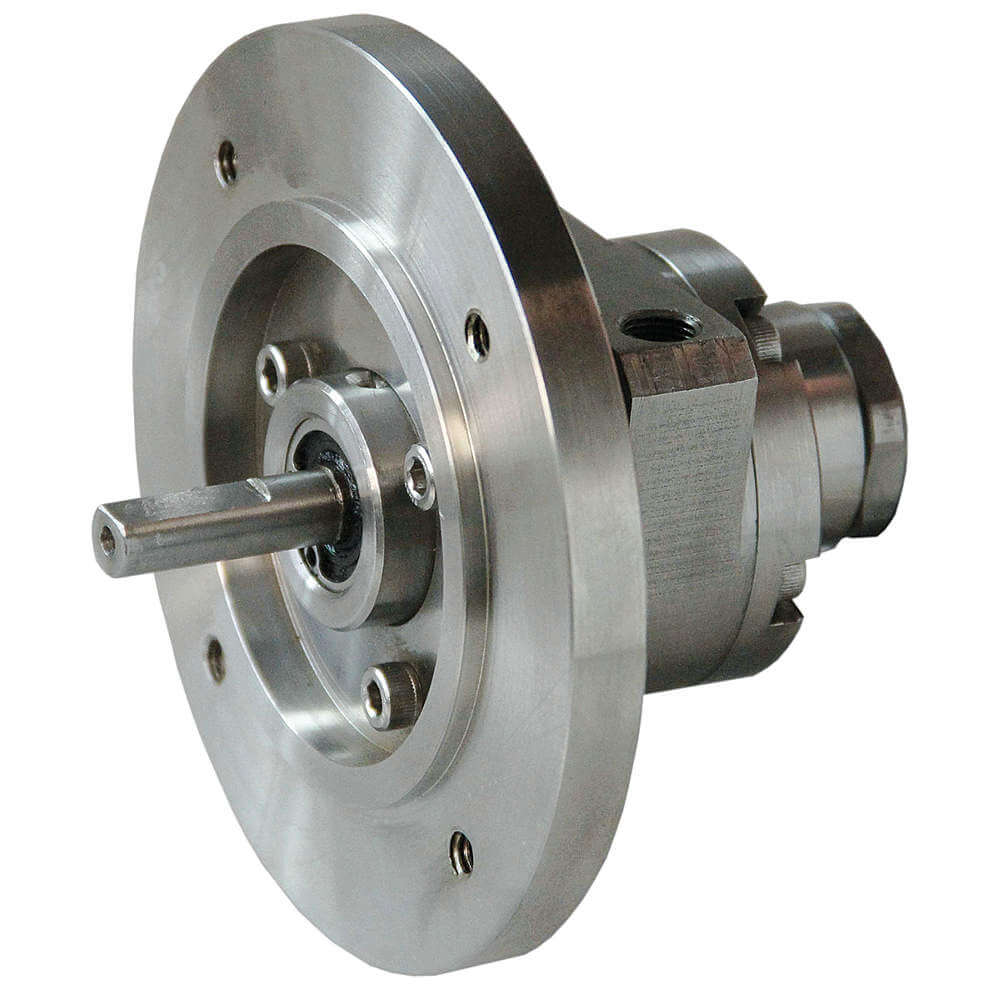

SPEEDAIRE 22UX65 Air Motor 0.42 Hp 21 Cfm Face Mounting
Item: AB7FMZModel: 22UX65
7 In Stock
Ships within 2 days via
10.00% off
€1,295.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Motor |
| Air Consumption | 20.5 CFM |
| Air Inlet Port | 1/8" |
| Air Inlet Port Type | NPT |
| Bearing Protection | Not Applicable |
| Cfm | 21 CFM |
| Color | Gray |
| Finish | Gray |
| Height | 2 12/25" |
| Housing Material | Stainless Steel |
| Housing Material Finish | Painted |
| Hp | 9/20 hp |
| Includes | Muffler |
| Inlet Gender | Female |
| Keyway Depth | Not Applicable |
| Keyway Length | Not Applicable |
| Keyway Type | Not Applicable |
| Keyway Width | Not Applicable |
| Length | 4.31" |
| Length Less Shaft | Not Applicable |
| Manufacturers Warranty Length | 1 yr. |
| Material | Stainless Steel |
| Max. Air Flow | 20.5 CFM |
| Max. Air Pressure | 100 psi |
| Max. Speed | 10000 RPM |
| Maximum Ambient Temperature | 250°F |
| Maximum Flow Rate | 20.5 CFM |
| Maximum Operating Pressure | 100 psi |
| Minimum Ambient Temperature | 0°F |
| Minimum Flow Rate | 2.11 CFM |
| Motor Design | Not Applicable |
| Motor Frame Material | Cast Iron |
| Mount Hole Center-to-center Length | Not Applicable |
| Mount Hole Center-to-center Width | Not Applicable |
| Mounting | Face |
| Mounting Orientation | Any Angle |
| Mounting Type | Face |
| No Load Speed | 10000 RPM |
| Number Of Vanes | 4 |
| Output Power | 9/20 hp |
| Output Power @ 25% Maximum Speed | Not Applicable |
| Output Power @ 50% Max. Speed | Not Applicable |
| Output Shaft Type | D Shaft |
| Outside Diameter | 2 1/2" |
| Overall Height | 2 1/2" |
| Overall Length | 4 1/8" |
| Overall Width | 3 1/8" |
| Rotation | CW/CCW |
| Rpm @ Max. Torque | 500 |
| Rpm @ Max. Torque | 500 RPM |
| Shaft Dia. | 3/8" |
| Shaft Length | 1 1/8" |
| Shaft Material | Stainless Steel |
| Shaft Orientation | Inline |
| Starting Torque | Not Applicable |
| System Of Measurement | Inch |
| Temp. | 250°F |
| Torque @ Max Pressure | 2.75 lbs.-in. |
| Type | Rotary Vane |
| Weight | 2.21 lbs. |
| Width | 3.07" |
Shipping Info:
| Ship weight (kg) | 1.52 |
| Ship height (cm) | 6.3 |
| Ship length (cm) | 10.44 |
| Ship width (cm) | 7.8 |
| HS code | 8412390040 |
| Country of Origin | CN |
Product Variants
| Product | Model | Torque @ Max Pressure | No Load Speed | Shaft Dia. | Shaft Length | Cfm | Overall Length | Height | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

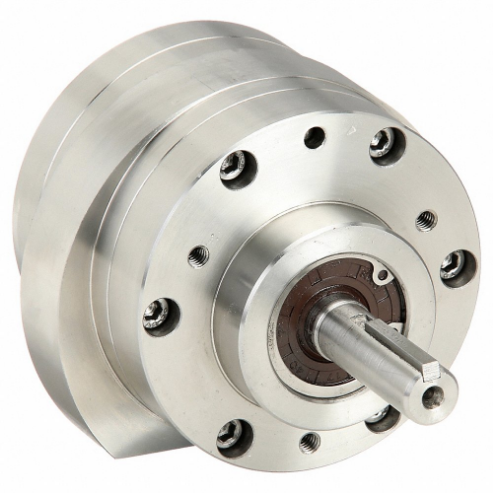

22UX67 | 36 lbs.-in. | 3000 RPM | 5/8" | 2" | 70 CFM | 6 5/8" | 3.94" | 4" | €1,779.19 |
