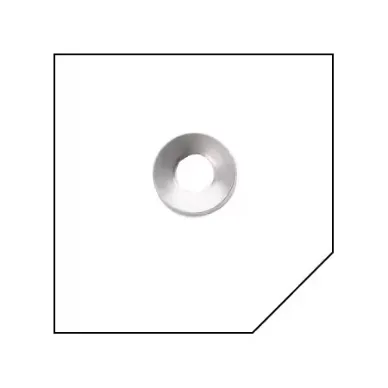

SPEC BM159150 Disc Spring, Metric, High Carbon Steel, 1.5 mm Thick
Item: CU3NLZModel: BM159150Cross Ref: 54NZ68
7 In Stock
Ships within 2 days via
10.00% off
€342.78 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Disc Spring |
| Compatible Rod Size | 101 mm |
| Deflection @ Load | 1.5 mm |
| Disc Type | Standard Disc Spring |
| Finish | Plain |
| Inside Diameter | 101 mm |
| Load @ Deflection | 409N |
| Material | High Carbon Steel |
| Max. Outside Dia. | 159 mm |
| Meets/exceeds | GB/T 1222-2007 |
| Min. Inside Dia. | 101 mm |
| Outside Diameter | 159 mm |
| Overall Height | 3.5 mm |
| System Of Measurement | Metric |
| Thickness | 1.5 mm |
| Type | Metric Disc Spring |
Shipping Info:
| Ship weight (kg) | 2.17 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Overall Height | Thickness | Material | Calculated Load @ Flat | Spring Rate | Finish | Meets/exceeds | Load @ Deflection | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B2437250 | 7/25" | 1/4" | Carbon Steel | 14700 lbf. | - | Plain | - | 9635 lbs. | 10 | €249.24 | |
| B3250250 | 0.31" | 1/4" | Carbon Steel | 16211 lbf. | - | Plain | - | 10621 lbs. | 10 | €240.21 | |
| B3875250 | 0.31" | 1/4" | Carbon Steel | 11817 lbf. | - | Plain | - | 7754 lbs. | 10 | €428.66 | |
| B4500250 | 9/25" | 1/4" | Carbon Steel | 17846 lbf. | - | Plain | - | 11687 lbs. | 10 | €497.88 | |
| B4750437 | 1/2" | - | Carbon Steel | 40463 lbf. | - | Plain | - | 26441 lbs. | 5 | €410.91 | |
| B5250394 | 0.51" | 0.394" | Carbon Steel | 52042 lbf. | - | Plain | - | 33994 lbs. | 5 | €496.71 | |
| BD112-600 | 8.5 mm | 6 mm | Carbon Steel | 72965N | - | Oil | - | 45936N | 10 | €449.45 |
