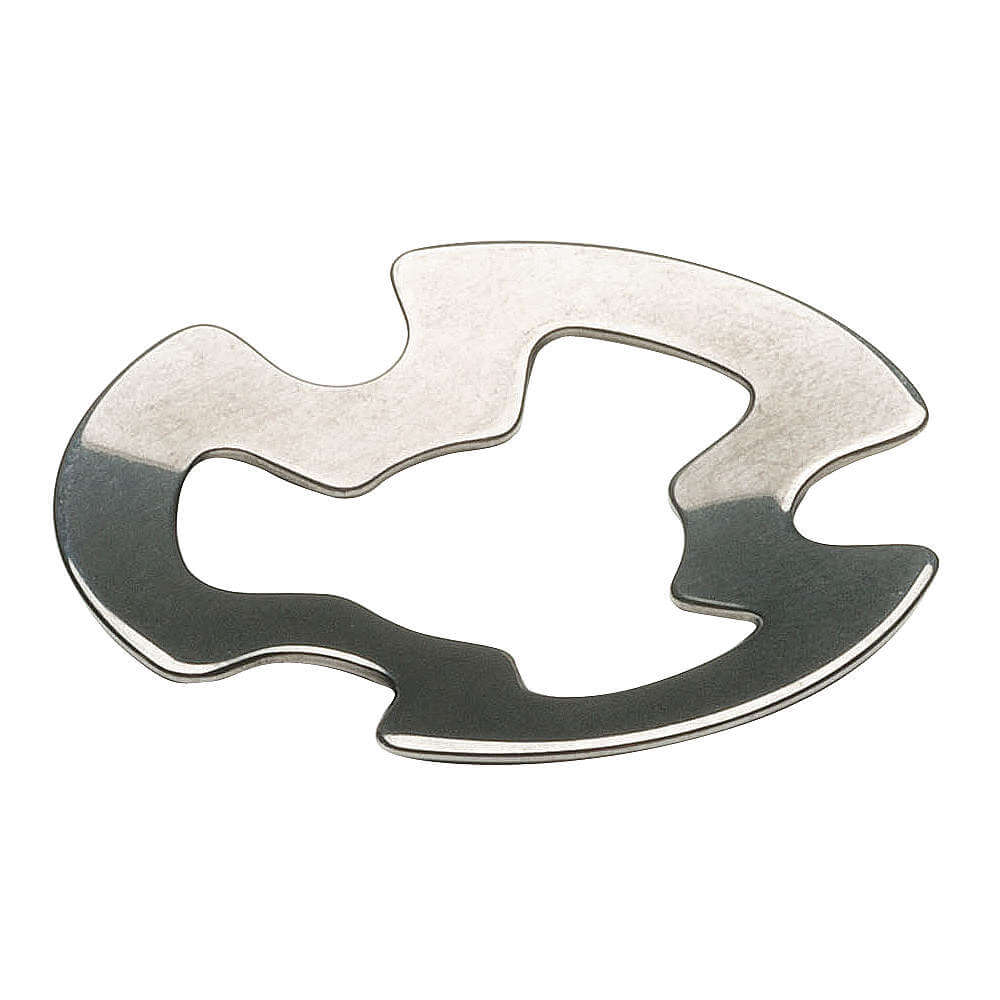

SPEC BC1070025S Disc Spring 0.375 Stainless Steel Clover Dome
Item: AF7WNEModel: BC1070025SCross Ref: 22RJ28
7 In Stock
Ships within 2 days via
10.00% off
€67.46 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Disc Spring |
| Calculated Load @ Flat | 78 lbf. |
| Compatible Hole Diameter | 1 3/32" |
| Compatible Rod Size | 3/8" |
| Deflection @ Load | 0.058" |
| Disc Type | Clover Disc Spring |
| Finish | Plain |
| For Hole Size | 1.1" |
| For Rod Size | 0.375" |
| Grade | Grade 17-7 PH , Stainless Steel |
| Inside Diameter | 0.4" |
| Load @ Deflection | 14 lbs. |
| Max. Outside Dia. | 1.069" |
| Min. Inside Dia. | 2/5" |
| Outside Diameter | 1.07" |
| Overall Height | 0.1" |
| Spring Rate | 1076 lbs.-in. |
| System Of Measurement | Imperial |
| Thickness | 0.025" |
| Type | Clover Dome |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 3.05 |
| Ship width (cm) | 3.05 |
| HS code | 7318210090 |
Product Variants
| Model | Spring Rate | Calculated Load @ Flat | Overall Height | Thickness | Load @ Deflection | Grade | For Hole Size | Finish | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BC0250008S | 760 lbs.-in. | 11 lbf. | 0.02" | 0.008" | 1.7 lbs. | Grade 17-7 PH | 1/4" | Plain | 10 | €102.30 | |
| BC0250012S | 2195 lbs.-in. | 34 lbf. | 0.03" | 0.012" | 4.9 lbs. | Grade 17-7 PH | 1/4" | Plain | 10 | €121.12 | |
| BC0312012S | 1100 lbs.-in. | 23 lbf. | 0.03" | 0.012" | 5.1 lbs. | Grade 17-7 PH | 0.313" | Plain | 10 | €113.38 | |
| BC0312018S | 3720 lbs.-in. | 89 lbf. | 1/25" | 0.018" | 12.5 lbs. | Grade 17-7 PH | 0.313" | Plain | 10 | €113.38 | |
| BC0343014S | 1487 lbs.-in. | 35 lbf. | 0.03" | - | 6.7 lbs. | Grade 17-7 PH | 0.344" | Plain | 10 | €122.26 | |
| BC0343016S | 2227 lbs.-in. | 52 lbf. | 1/25" | 0.016" | 7.5 lbs. | Grade 17-7 PH | 0.344" | Plain | 10 | €122.26 | |
| BC0343020S | 4347 lbs.-in. | 104 lbf. | 1/25" | 0.02" | 14.7 lbs. | Grade 17-7 PH | 0.344" | Plain | 10 | €122.26 |
