SPEARS VALVES 2012-020 Gate Valve, Socket, Buna, 2 Size, PVC
Item: AD7WWBModel: 2012-020Cross Ref: 4GXP5
7 In Stock
Ships within 2 days via
5.00% off
€361.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gate Valve |
| Body Material | PVC |
| Bonnet Material | PVC |
| Bonnet Style | Screw In |
| Coefficient Of Volume (cv) | 333 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | Socket x Socket |
| Connection Type - Side 1 | Socket |
| Connection Type - Side 2 | Socket |
| For Media | Water |
| Handle Diameter | 3.64" |
| Handle Height | 6.88" |
| Handle Material | Polypropylene |
| Handle Type | Wheel |
| Inlet To Outlet Length | 3.922" |
| Max. Fluid Temp. | 140°F |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure (steam) | 200 psi |
| Max. Water Pressure | 200 psi |
| Media Temp. Range | 100°F to 140°F |
| Media Temperature Range | 100°F to 140°F |
| Nominal Valve Size | 2" |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | 100°F |
| Overall Length | 3.92" |
| Pipe Size | 2" |
| Product Datasheet | spears-valves-2012-020.pdf |
| Seal Material | Buna-N |
| Seat Material | Buna-N |
| Stem Material | PVC |
| Stem Type | Non Rising |
| Top Of Handle To Inlet Center | 6.922" |
| Wedge Material | Polypropylene |
| Wedge Style | Solid |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 17.27 |
| Ship length (cm) | 21.34 |
| Ship width (cm) | 21.59 |
| HS code | 8481805090 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Connection Type | Overall Length | Coefficient Of Volume | Seat Material | Body Material | Stem Material | For Media | Operating Temperature - Maximum | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2012-005 | Socket x Socket | 2.81" | 19 | Buna-N | PVC | PVC | Water | 140°F | €130.99 | |
|
2012-007 | Socket x Socket | 2.81" | 37 | Buna-N | - | PVC | Water | 140°F | €141.08 | |
 |

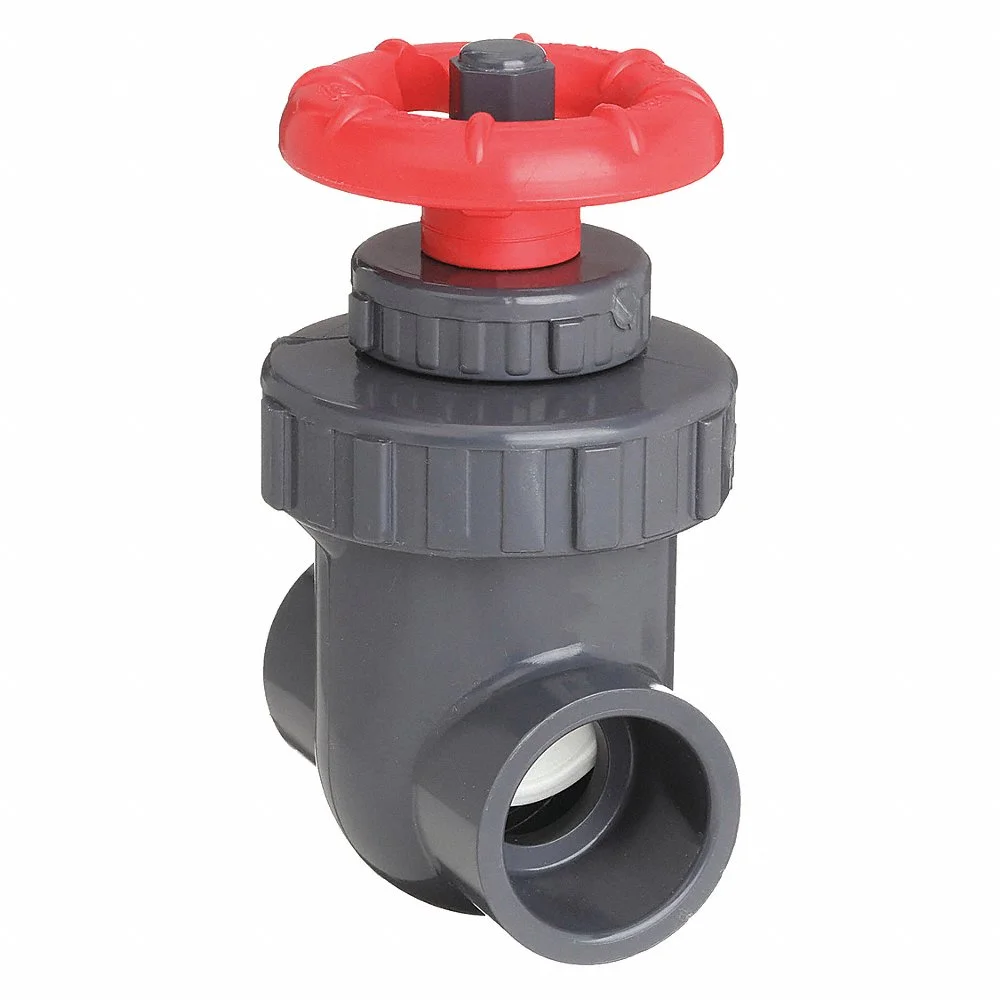

2012-010 | Socket x Socket | 3.31" | - | Buna-N | - | PVC | Water | 140°F | €166.82 | |
|
2012-012 | Socket Weld | - | - | - | PVC | PVC | - | - | €233.60 | |
|
2012-015 | Socket x Socket | 3.56" | 144 | Buna-N | PVC | PVC | Water | 140°F | €292.34 | |
 |

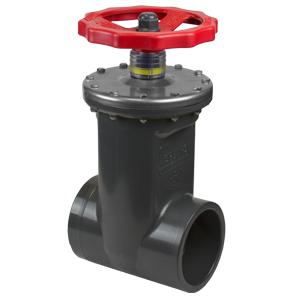

2012-040 | - | - | - | - | - | - | - | - | €1,646.29 | |
 |

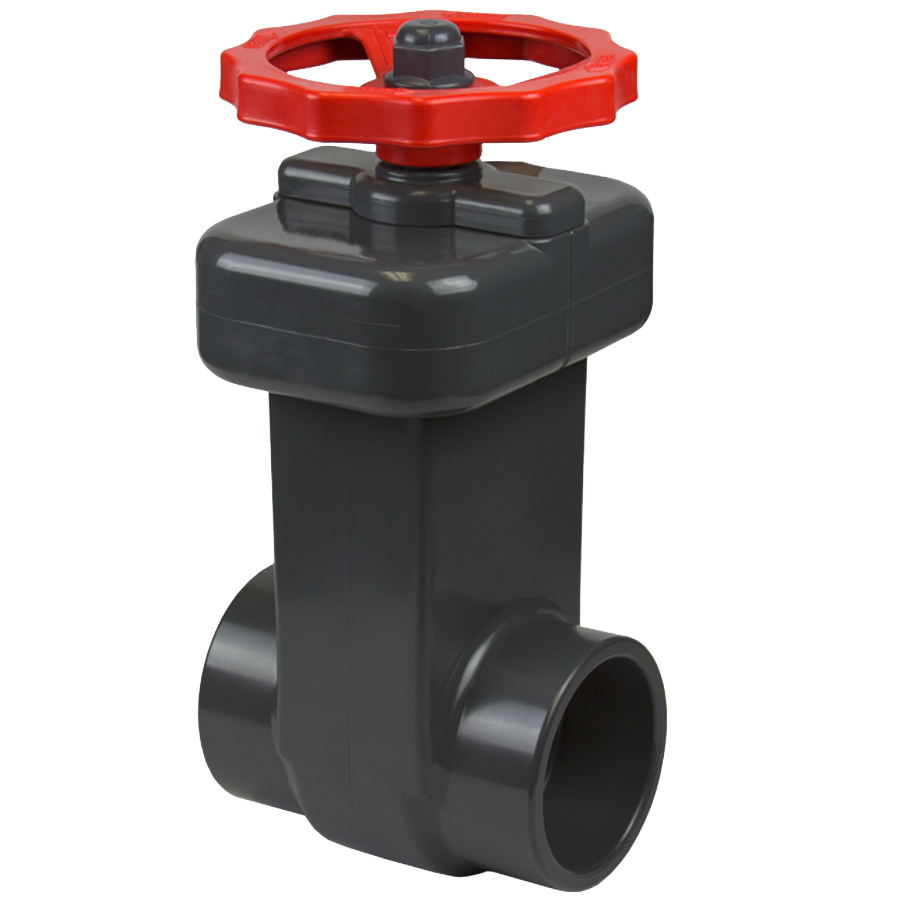

2012-025 | - | - | - | - | - | - | - | - | €1,128.19 |
